6–6

IBM Network Color Printer Operator’s Guide

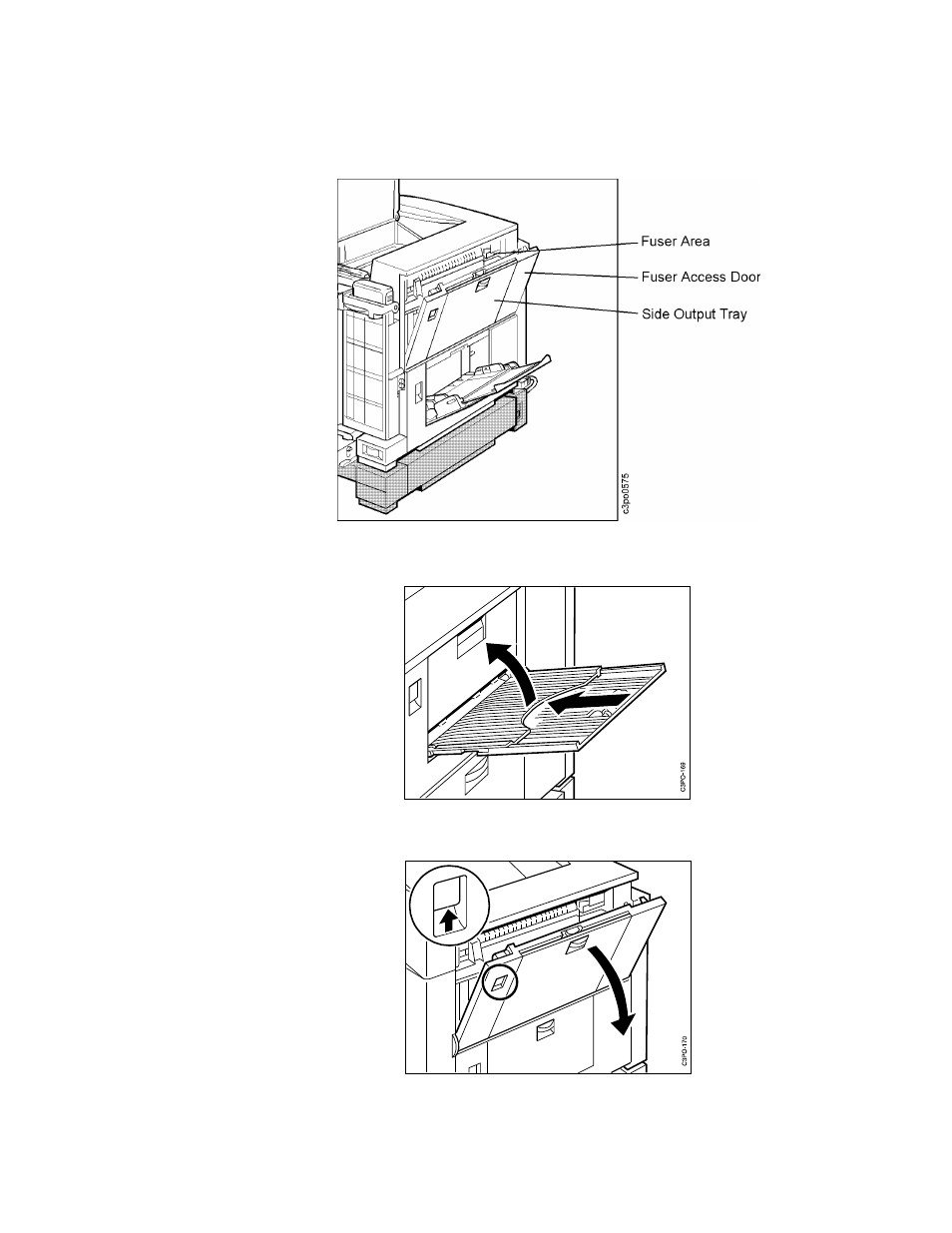

Clearing a Paper Jam in Area 2 (Fuser Area)

Use the following procedure to remove jammed paper from the fuser area of
the printer. The fuser area is on the right side of the printer behind the side
output tray.

1. Close the side output tray if it is open.

2. Push up the release latch to open the fuser access door.
