5–12
IBM Network Color Printer Operator’s Guide
Attention:

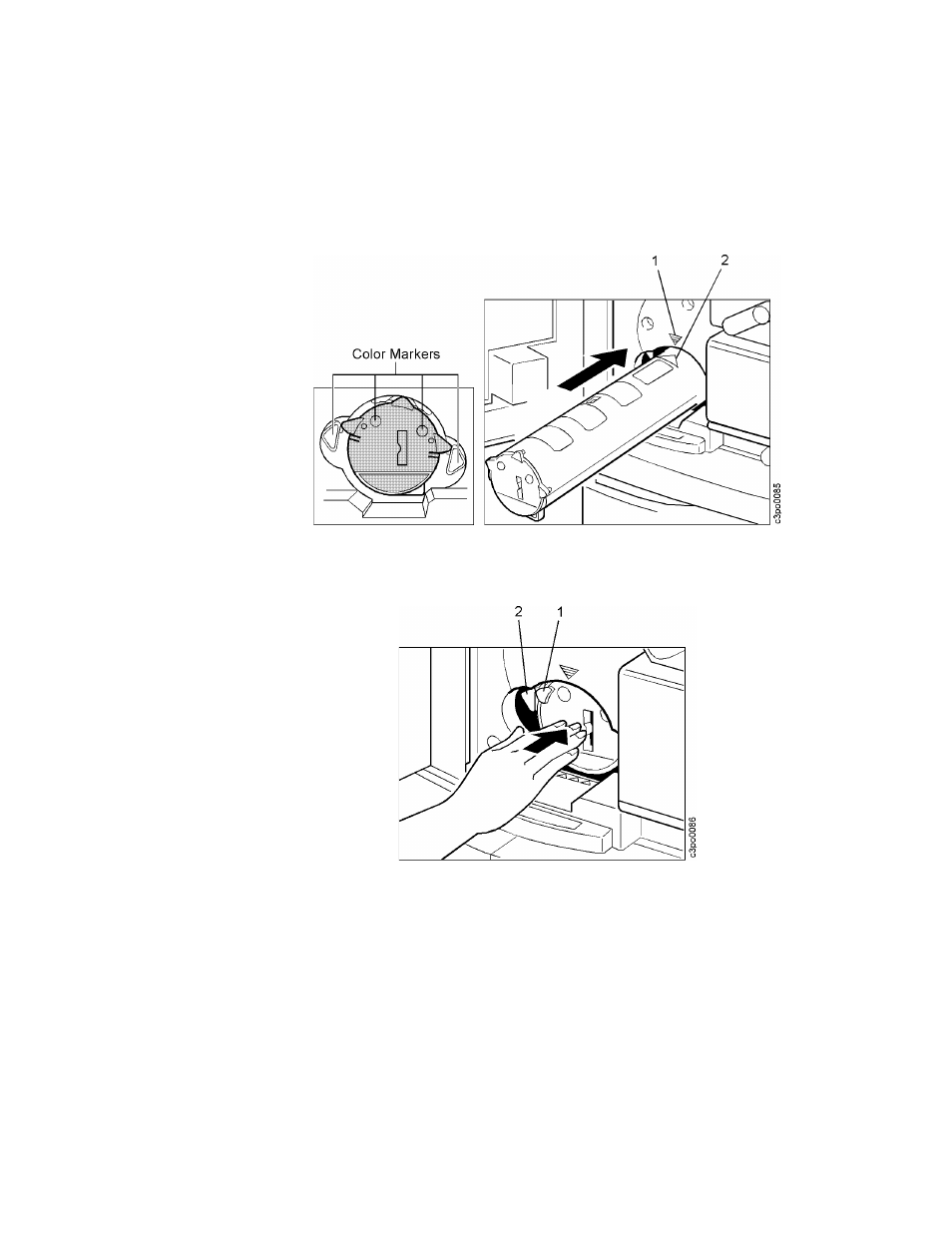

Make sure that you insert the toner cartridge that matches the color markers in the
turret opening.
9. Hold the toner cartridge with the arrow [2] up and pointing toward the
printer. Using the arrow [1] on the printer’s frame as a guide, slide the toner
cartridge into the printer until it locks in place. You may have to push firmly
on the cartridge to lock it into place.
10. When the toner cartridge is locked in place, the surfaces [1] and [2] are
even.
11. After you install the cartridge, turn the turret rotation knob to the next
cartridge to make sure that the cartridge you just installed is correctly
seated.
12. Close the front door.
13. Print a configuration page (see “Printing a Configuration Page” on page
4–9) and note the print count that it reports. Record this information on your
Supplies Replacement Log, shown in Appendix B.
