Identifying Printer Parts and Controls
This section helps you identify each part of the printer. The illustrations that
follow show the printer’s parts and controls and what they are used for.

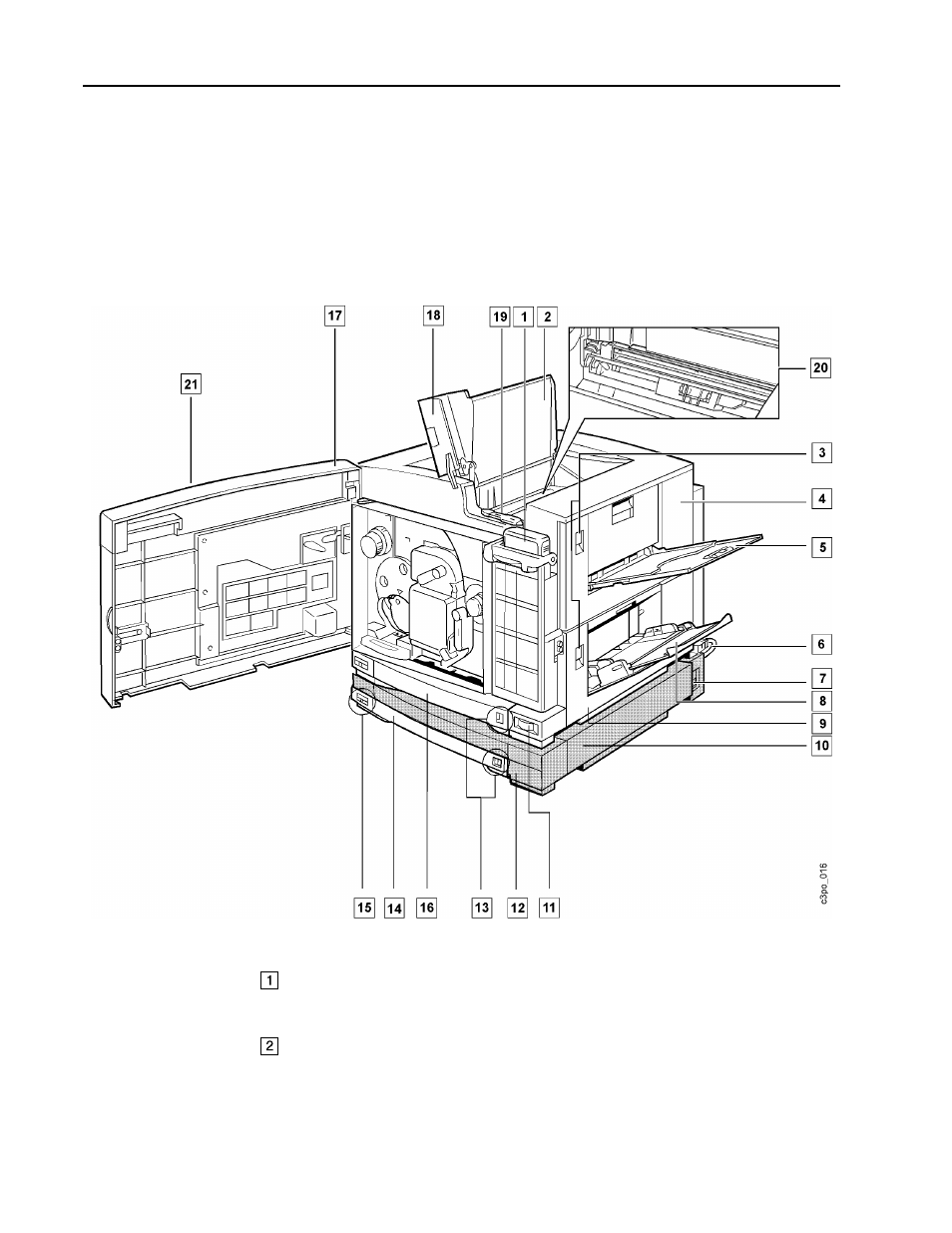

Front and Right Sides
Shown below are the parts of the printer that you access from the front and
right sides.
Fuser oil bottle (cover open)
The fuser oil bottle supplies the fuser oil that is applied to the fuser rollers
during the printing process.
Top cover (open)
When opened, the top cover gives you access to the transfer drum area
so that you can remove jammed paper or replace the separation corona
unit.
