Chapter 5. Replacing Supplies

5–27

Installing the New Fuser

Use the following procedure to install the new fuser in the printer.

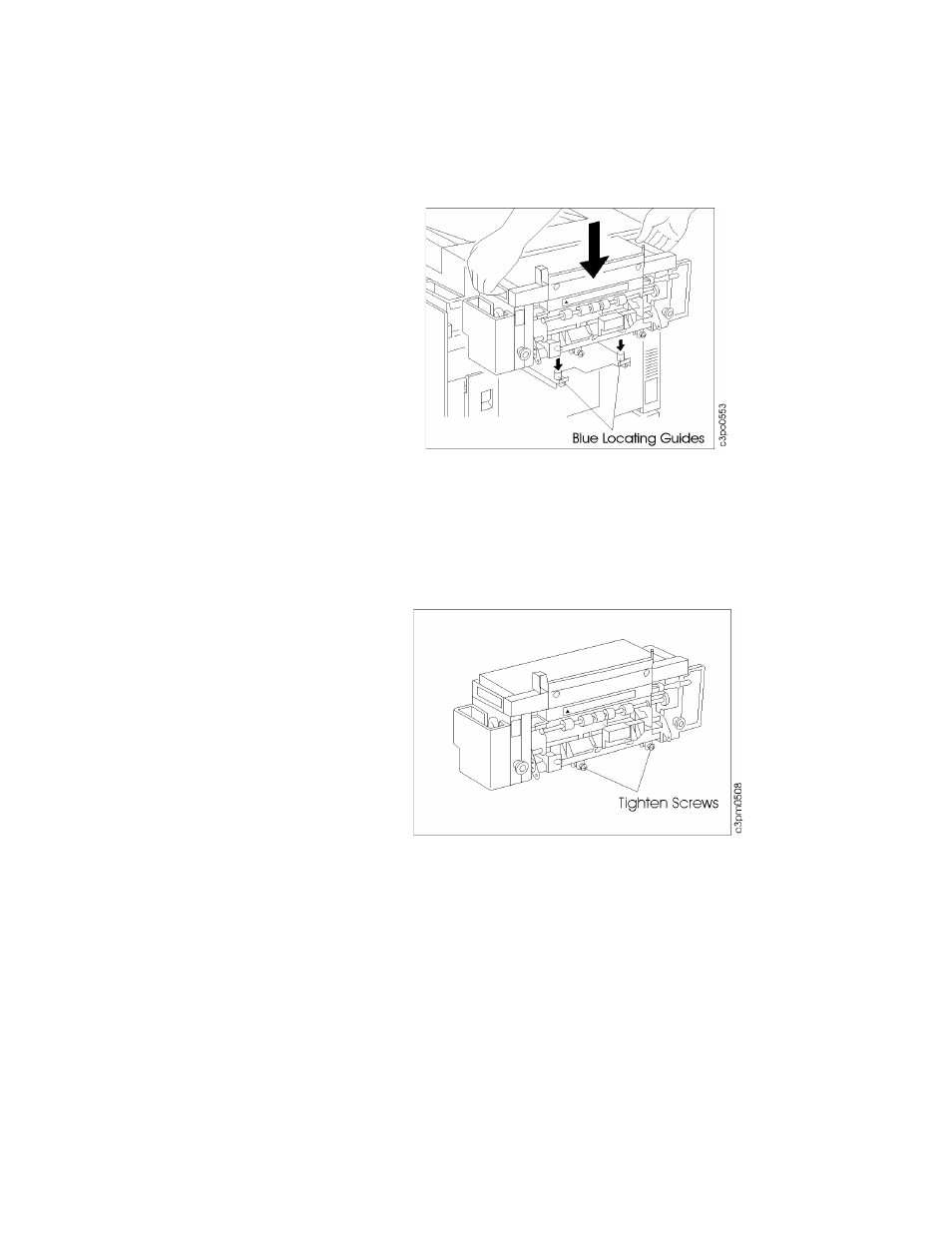

1. Use the green fuser handholds to put the new fuser on the sliding plate with

the oil bottle holder positioned to the front of the printer. Position the 2 blue
locating guides on the plate in the locating holes in the bottom of the fuser.

2. Use even pressure on the 2 black pull knobs (see step 2 on page 5–26) to

slide the fuser firmly into place. Both slides on the fuser slide plate are
positioned slightly inside of the printer frame when the fuser is pushed in
against the stops.

3. Alternately tighten the 2 fuser screws, approximately 2 turns each, until

they are tight.
