132 QC-300 Series User’s Guide

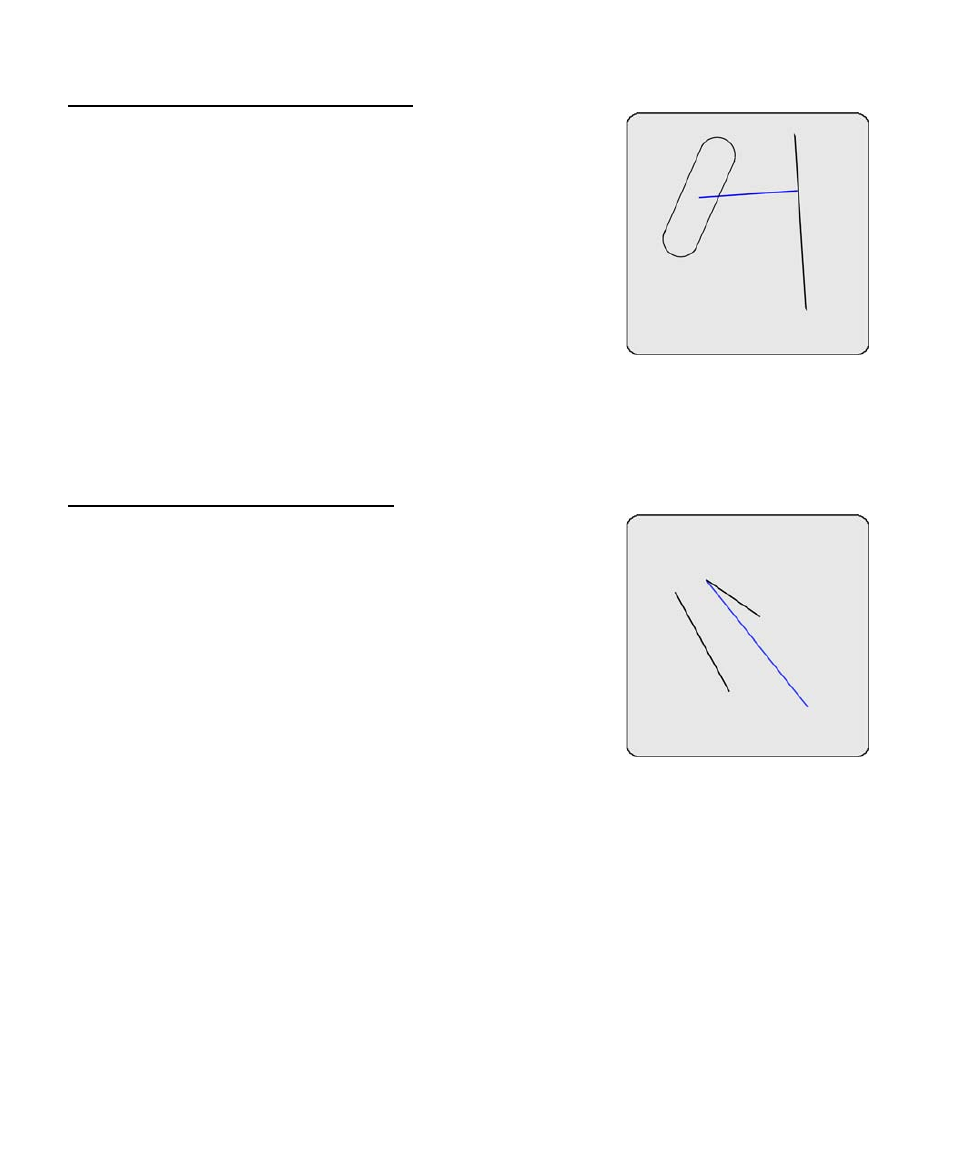

Distance constructed from a line and a slot
The distance feature will be constructed from the center of the slot per-
pendicular to the line.
To construct a distance from a line and a slot:
1 Touch the Measure Distance icon
2 Touch the line Feature
3 Press the Enter key
4 Touch the slot Feature
5 Press the Enter key
6 Press the Finish key
The distance feature will be constructed between the line and slot. Distances from virtual line extensions
will be shown if the line is not long.
Distance constructed from two distances
The sum-of-distances feature will be constructed from two distance
features.
To construct a distance from two distance features:
1 Touch the Measure Distance icon
2 Touch the first distance Feature
3 Press the Enter key
4 Touch the second distance Feature
5 Press the Enter key
6 Press the Finish key
The distance feature will be constructed between the two distance features.
