• Src/dst immediate take.
A ‘Src/Dst’ button connects a source to a destination. When this box is checked (as it is in the
default NV9649 configuration) the button performs an immediate take. When the box is
clear, the button sets up the take and the operator must press a ‘Take’ button to complete
the take.
Button Page List
This section is the region below the button definition section. It lists the pages of the button
tree. It has 3 columns: Page Number, Page Name, and “Link to Page Num(s).”
The button page at the top (or root) of the tree is called “Default.” Initially, the tree has just the
default page, until you add other pages.
To delete a page or pages from the tree, select the pages in the button page list, right-click the
list, and choose one of the deletion commands from the context menu that appears.
 Be aware when deleting pages from the tree that the deletion does not remove any naviga-
tion buttons from any button page.

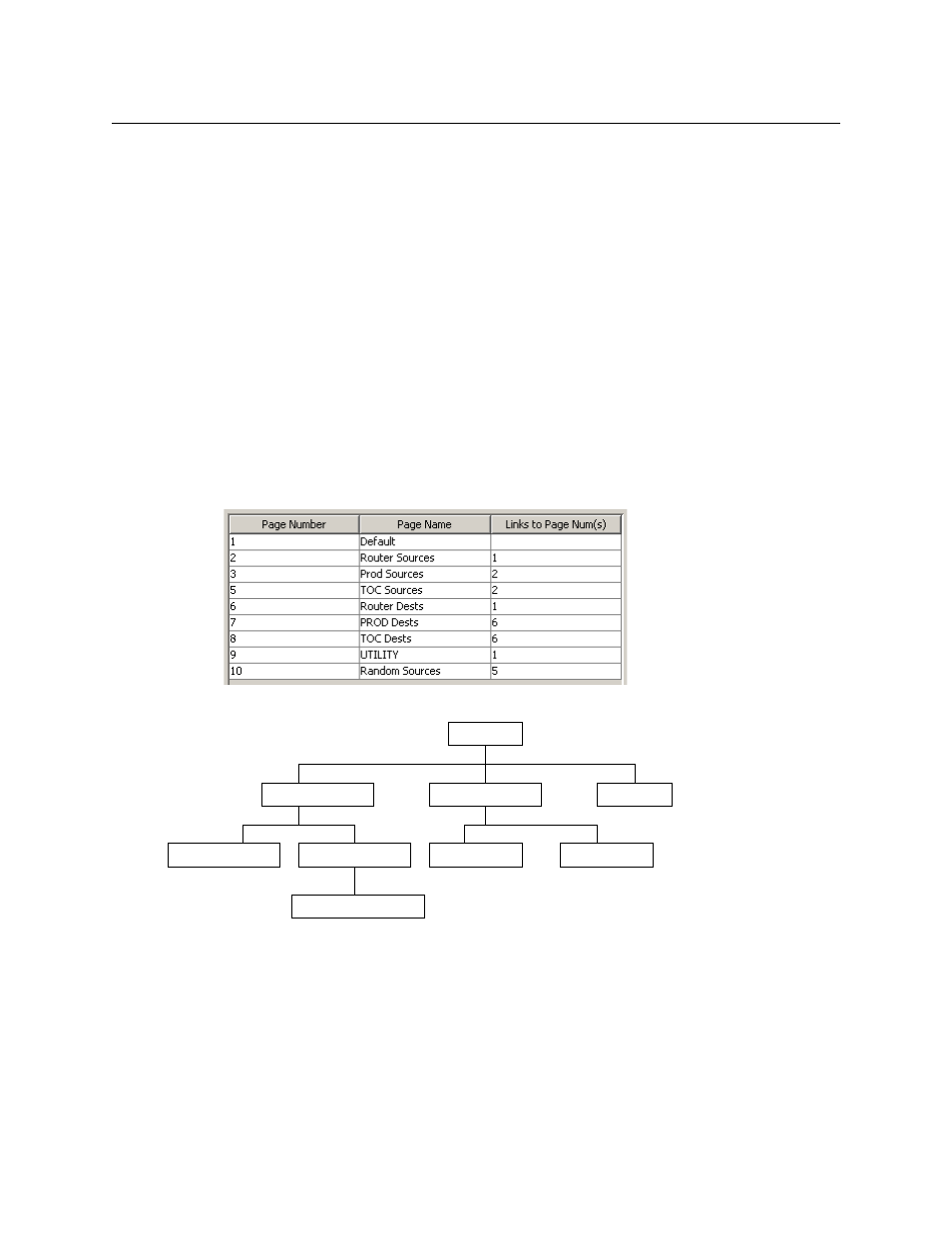

This is a sample of a button page list:
It represents this tree structure:
You can change the name of a page by double-clicking the page’s name field and editing its
text. Changing the name of a page does not cause a change to the caption of the navigation
button and vice versa.
During configuration, you will use ‘Navigate’ buttons to create new pages. During configuration,
you can double-click a ‘Navigate’ button to jump to its page.
During operation, panel operators will press navigation buttons, category buttons or global
navigation buttons to jump to other pages.
1 Default
2 Router Sources 6 Router Dests 9 UTILITY
10 Random Sources
3 Prod Sources 5 TOC Sources 7 Prod Dests 8 TOC Dests
