23
NV9649
User’s Guide
The NV9648s show current sources in their displays when the NV9649 is in source mode and
show the sections’ destinations when the NV9649 is in destination mode. (Please refer to the
NV9648 Users’ Guide for information regarding NV9648 control panels.)
 The NV9649’s panel ID is referenced by the configurations of the NV9648s. Those references
link the NV9648s to the NV9649.

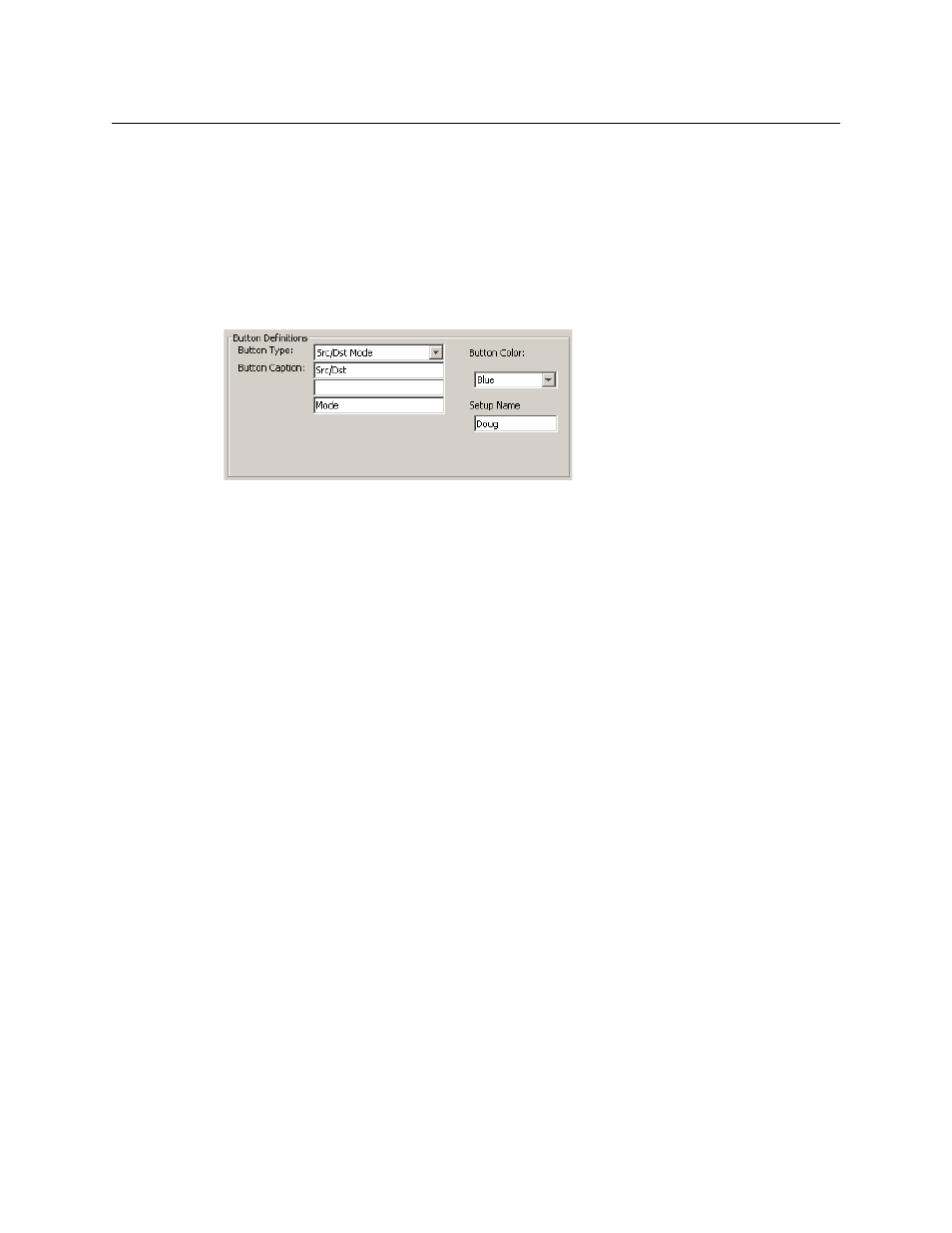

Button Definitions Section
Under the server model, the ‘Button Definitions’ section has 4 main parts:
These are:
• Button type
• Button Caption
• Button color
• Setup name
Other fields can be present in this section. These vary with the button function you have
selected.
Button Type
The ‘Button Type’ field is a drop-down menu in which you can choose a function for the selected
panel button.
Button Caption
Using the 3 ‘Button Caption’ fields, you can specify the legend that appears on the panel button.
(Button legends have up to 3 lines of 8 characters. If you specify only one or two lines of text, the
panel button displays the text in a larger “font.”)
For some button functions (such as ‘Destination Lock’, the button legend is fixed and cannot be
changed.
Button Color
You can assign a button color to most, but not all, buttons. The ‘Button Color’ field is a drop-
down list. Supported colors are amber, blue, green, grey, purple, red, and yellow.
Setup Name
When the panel is being configured for the server model and you have selected (clicked on) one
of the 12 buttons on the left side of the panel image, the ‘Button Definitions’ section has an
additional ‘Setup Name’ field.
