3
Introduction
Chapter 2 provides a functional description of the NV9649.
Topics
Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Function Buttons and Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tally Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Additional Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Other NV9649 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Summary
The NV9649 is a 2RU half-width control panel, approximately 3” deep. Two NV9649s can be
mounted in a rack side-by-side with a rack mounting kit (part number NV9649-48-RMK).

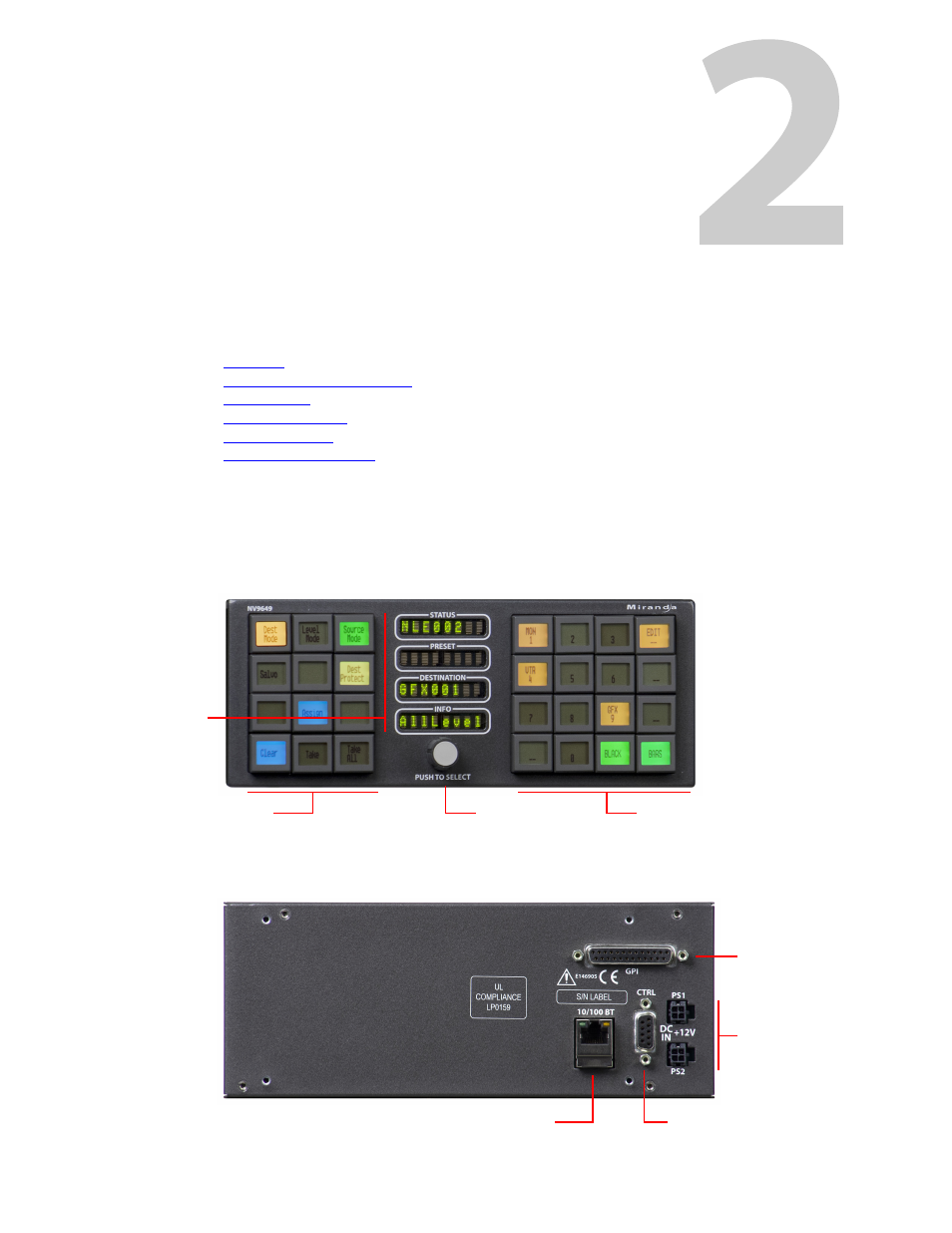

The panel is organized as shown in figures 2-1 and 2-2:
Fig. 2-1: NV9649 Front
At the rear are power, serial, and network connectors, and a 25-pin GPIO (tally) connector that
supports 4 optically isolated relay outputs and 8 optically isolated inputs:
Fig. 2-2: NV9649 Rear
Displays (4)
Knob Function Buttons (12) Function Buttons (16)
GPIO (tally)
Ethernet Serial (RS-232)
Power (2)
