19
NV9649
User’s Guide
In the first and third cases, you will create a new configuration file whose name you designate.
The file extension for an NV9649 configuration file is
.649 . Click ‘Next’ or ‘Finish’ to proceed.

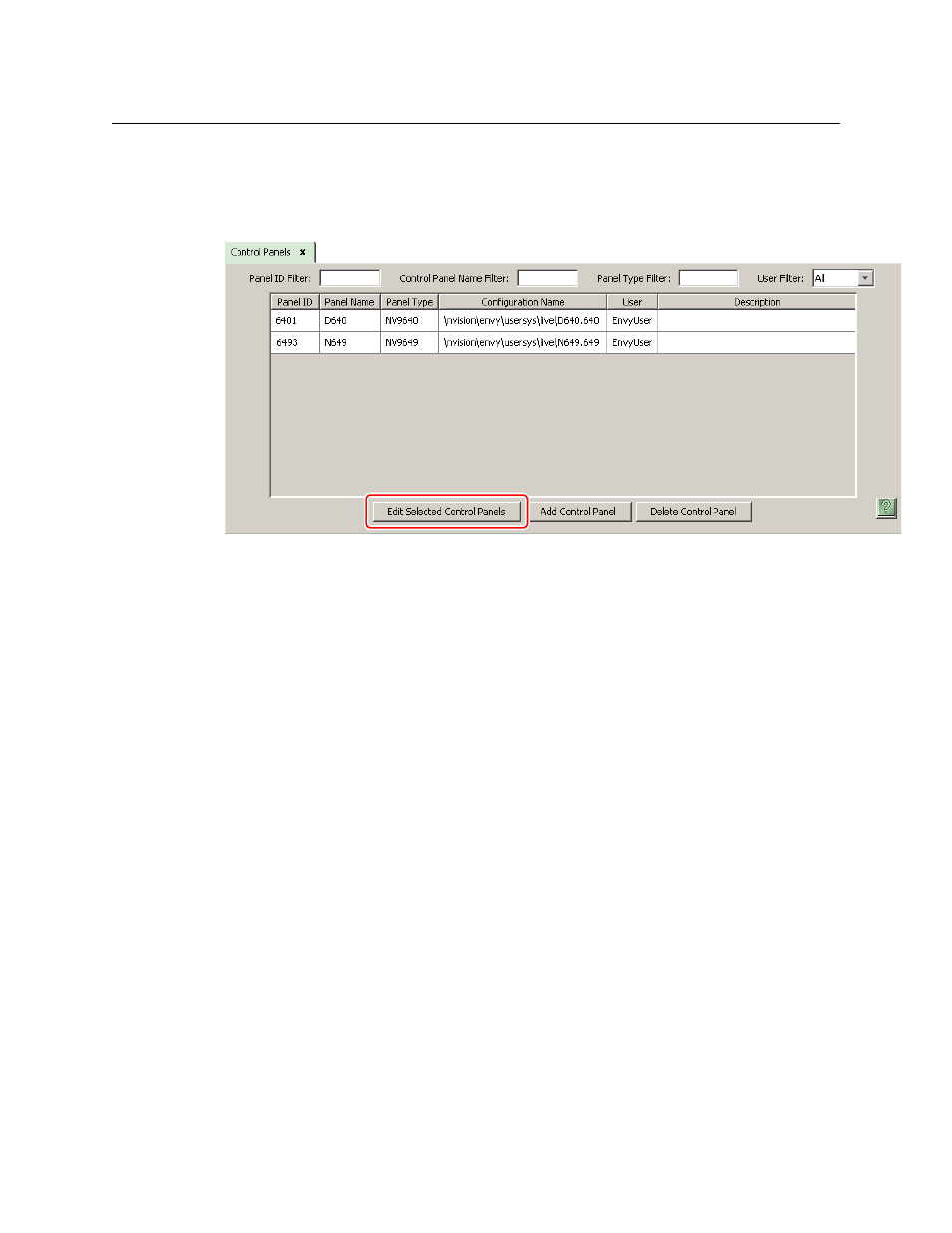

Return to the ‘Control Panels’ page to view your new entry. To edit an NV9649 configuration,
either double-click its list entry or select the entry and then click ‘Edit Selected Control Panels’:
You will then see the panel configuration page for the selected NV9649.
The following section of this guide discusses using the panel configuration page in which you
configure an NV9649.
NV9649 Panel Configuration Page(s)
The NV9649 panel can be configured to operate under 3 behavioral models:
• ‘Panel Server’ mode.
• ‘NV9609 Panel’ mode.
• ‘LCD XY/MD’ mode.
(The behavioral model is selected in the first entry of the panel options. That entry is a drop-
down list.)
The panel configuration pages for the 3 models differ greatly. The set of button functions differ
and the panel options also differ.
 If you change the behavioral model for a configuration, the software reinitializes the config-
uration to the default (empty) configuration. Any configuration you have thus far created
will be lost. Therefore, choose the appropriate behavioral model first.
Common Page Features
Please refer to figures 4-1, 4-3, and 4-4, following.
Panel Graphic
At the top of the page is a graphic representation of the NV9649 panel. Above the graphic is a
the pathname of the panel’s configuration file. (This file corresponds to what you are editing,
which will eventually be sent to the NV9000.)
Configurers must click a button “proxy” in the graphic to select the button for configuration.
