Configuration Page for the Server Model
This is a sample NV9649 panel configuration page for server mode:

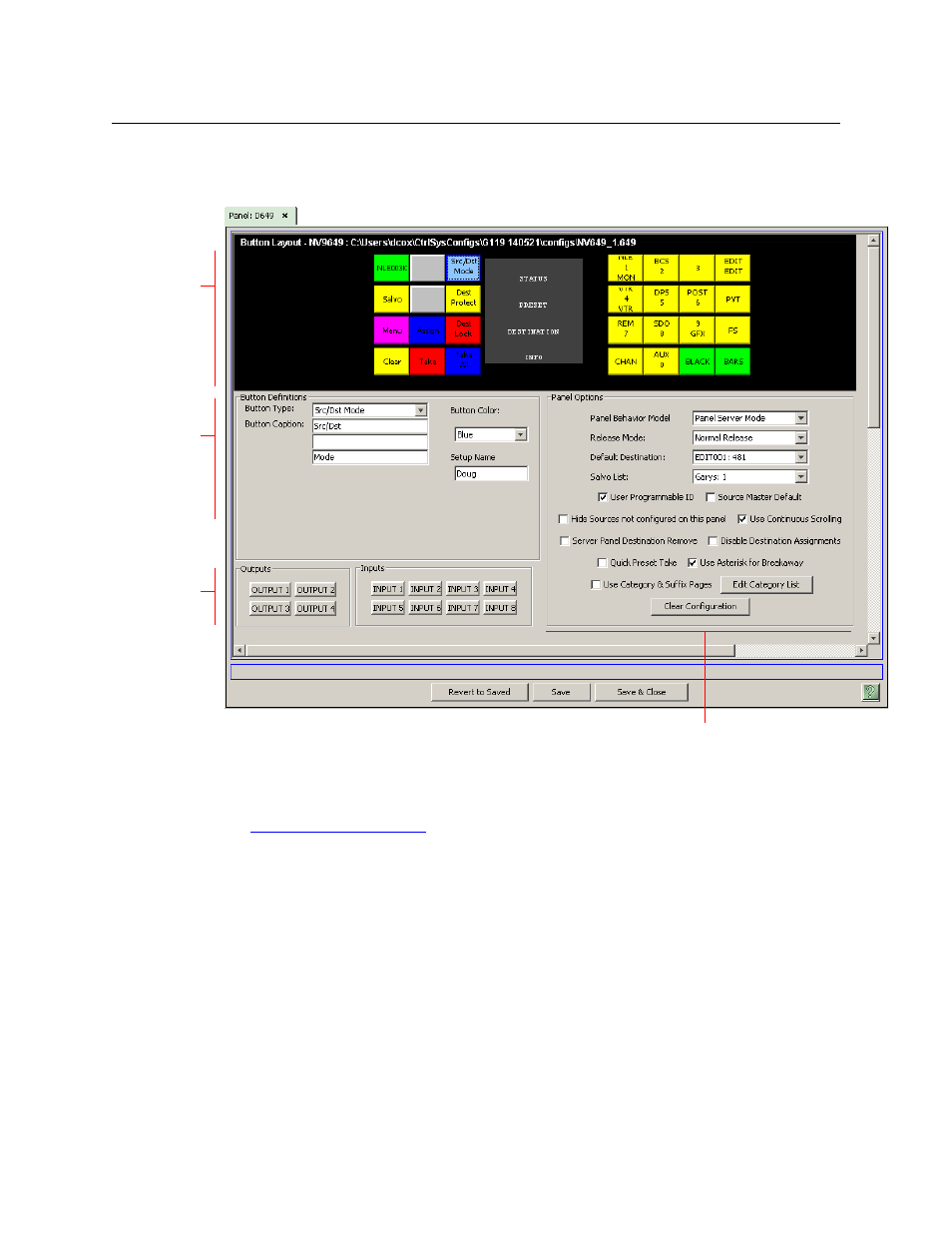

Fig. 4-1: NV9649 Configuration Page (for Server Mode, using Category Lists)
The panel can be configured to select devices by category list or using category pages. The
choice is a panel option. Figure 4-1 shows the panel options where category lists are in effect.
See Server Mode Panel Options on page 24 for more information.
Figure 4-2, following, shows the panel options where category pages are in effect.
