22
Configuration
NV9649 Panel Configuration Page(s)
This is a server mode NV9649 panel configuration page for which category and suffix pages
have been chosen:

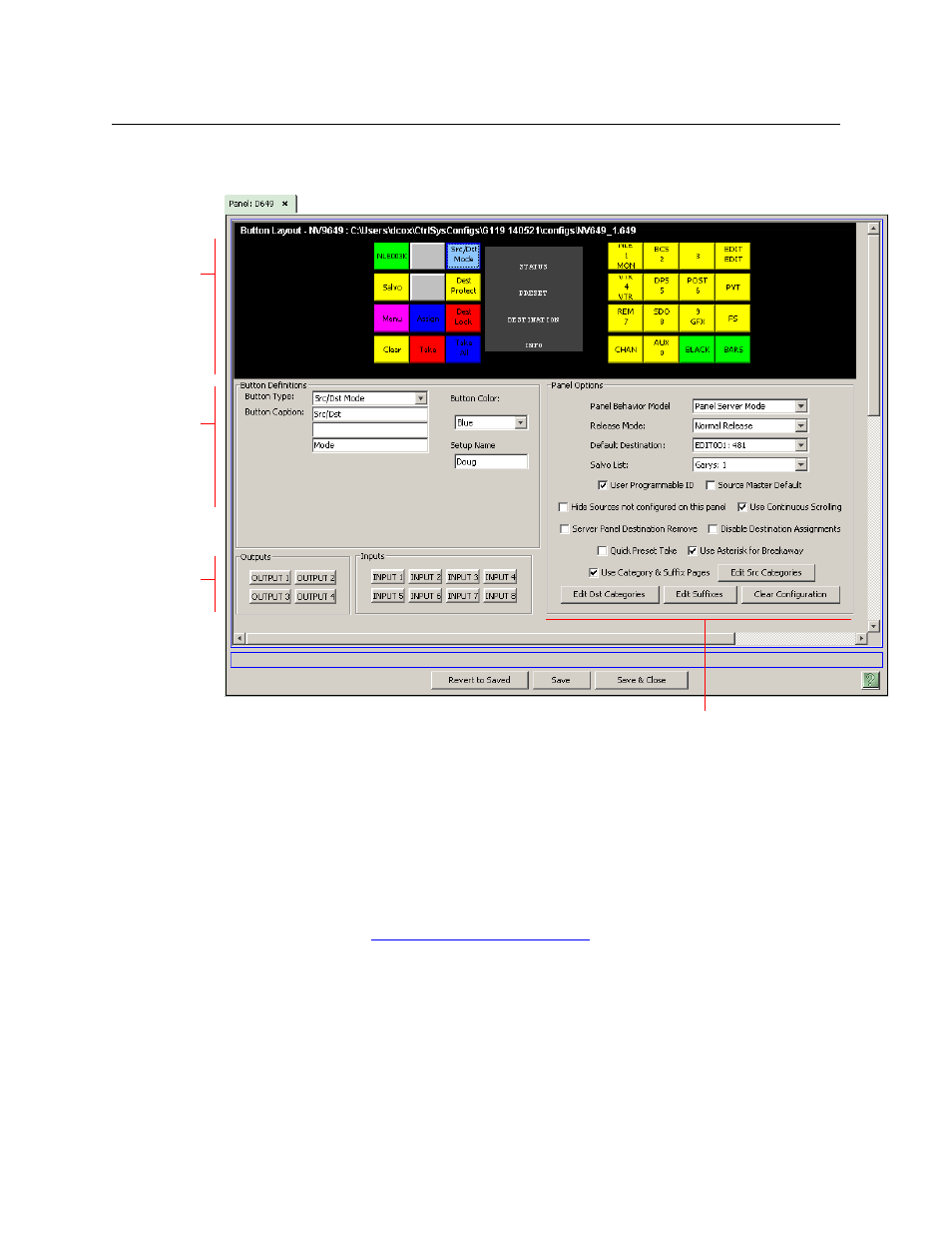

Fig. 4-2: NV9649 Configuration Page (for Server Mode, using Category and Suffix Pages)
Button Functions
There are 16 button function types for a panel in server mode (not counting ‘Undefined’):
Assign Broadcast Category Chop
Clear Destination Lock Destination Mode Destination Protect
Menu Quick Source Salvo Source
Source Mode Src/Dst Mode Take Take All
These are described in Button Functions for Server Mode on page 50.
Characteristics of Server Mode
The NV9649 (the “server”) operates in conjunction with one or more NV9648s (the “clients”). The
NV9649 can assign a destination to any of an NV9648’s 3 control sections and also assign sources
to the source buttons of any of an NV9648’s control units.
(The NV9648 has 3 sections that are independent control units. Each unit — having one display
and 9 buttons — corresponds to a destination.)
Button
Definition
Section
GPIO
Definitions
Panel Options
Panel
