Operation
Setup Mode

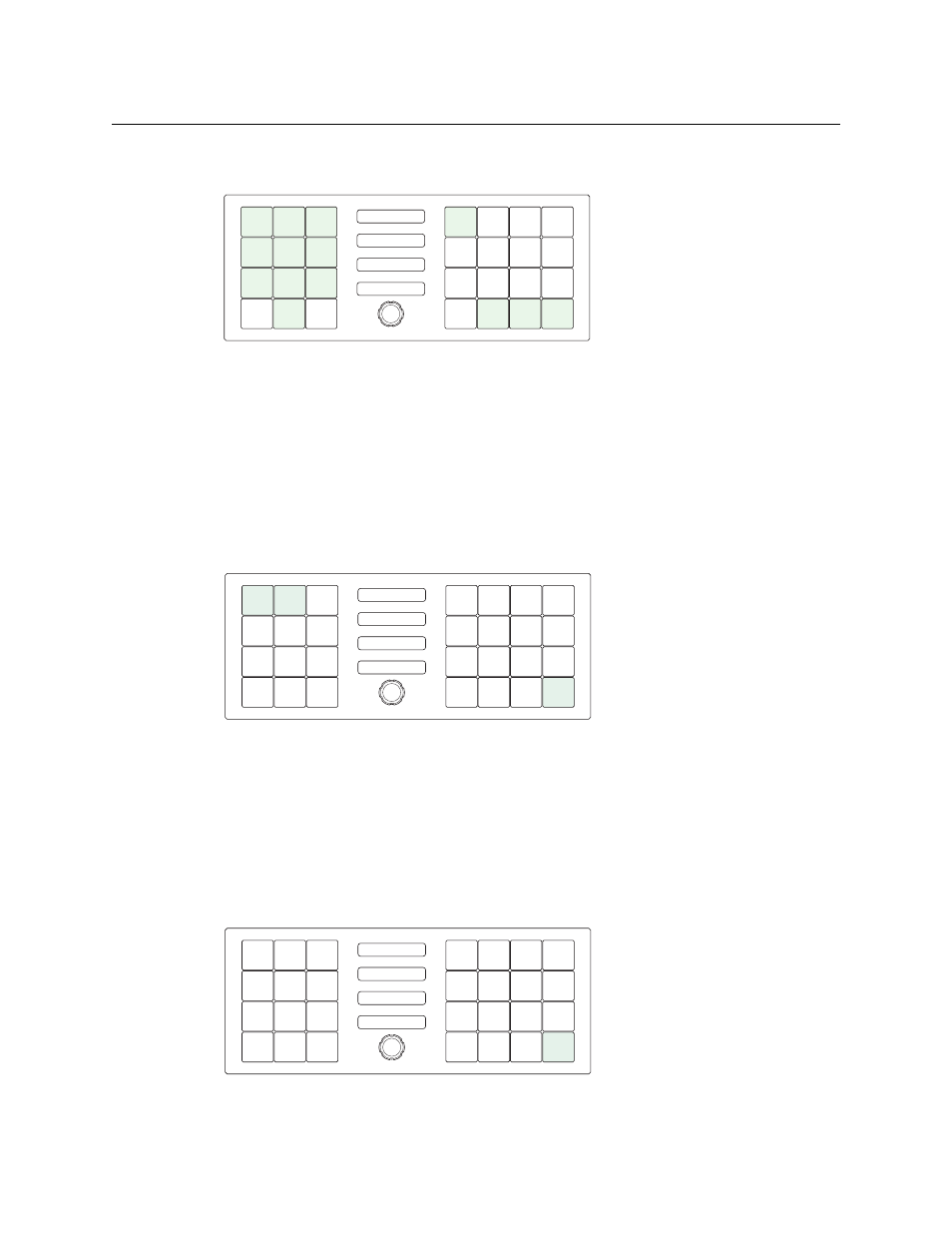

Now press the ‘Enter Panel ID’ button. The buttons on the left side of the panel light up and form
a numeric keypad:
The current panel ID is shown on the top-left button of the right-hand button section. At the
lower right are ‘Clear’, ‘Save’, and ‘Exit’ buttons.
Enter a panel ID (up to 8 digits). The ID you enter appears in the third display (the ‘Preset’
display). Press ‘Clear’ if you make a mistake.
Press ‘Save’ to complete your entry and leave the submenu.
Press ‘Exit’ to leave the panel ID submenu without changing the panel ID.
Software Versions
Press the ‘Software Versions’ button to view the panel’s current software and firmware versions:
The software part number and its revision number and the firmware version appear on the two
top-left buttons.
Press ‘Exit’ to leave the submenu.
Panel Test
Press the ‘Panel Test Mode’ button to perform a panel test. The test reveals the color and
viability of the 4 displays and the28 function buttons.
The submenu shows a ‘Push to Test’ button at the lower right:
Press that button to proceed to the display test.
