Parts List and Preventive Maintenance KE200 - Inside Top Cover View
Page B-4 MDE-4465A KE200 Key Encoder/Maintenance Terminal Operation Manual · October 2007
KE200 - Inside Top Cover View

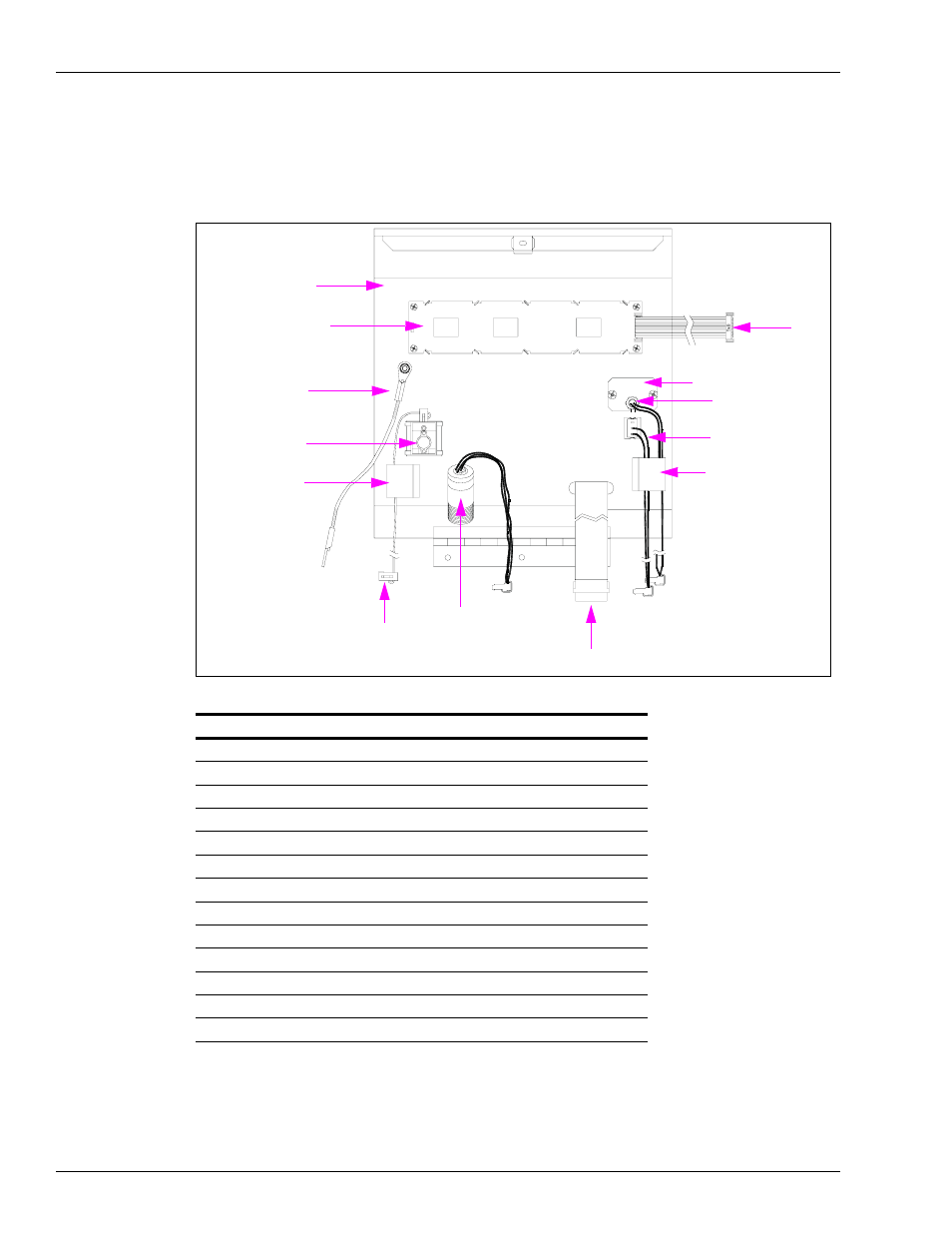

Figure B-3: KE200 - Inside Top Cover View
12
11
10
13
9
5
8
7
6
5
4
3
2
1
Item Description Part Number
1 Ribbon Cable for LCD Display C05708
2 Bracket for LED Cable Assembly C35304
3 LED Cable Assembly C06294
4 Power Switch Assembly C06295
5 Ribbon Cable Clamp C02207
6 Overlay with Keypad C02812
7 Manager Switch/Cable Assembly C06314
8 Ribbon Cable Assembly for Key Receptacle C06293
9 Key Receptacle C02848
10 Housing Support Cable C01589
11 LCD Display C06331
12 Housing Cover C35318
13 Tie Wrap (Not Shown) Q10178-10
