System Overview KE200 PCB
Page 4 MDE-4465A KE200 Key Encoder/Maintenance Terminal Operation Manual · October 2007
KE200 PCB
The KE200 PCB is the controller for the key encoder. Jumper settings on the PCB for each of
the following must be made to ensure correct operation.
• Port 1 configuration for RS-232 or RS-422
• Baud Rates for Ports 1, 2, and 3
• Program address (map type)

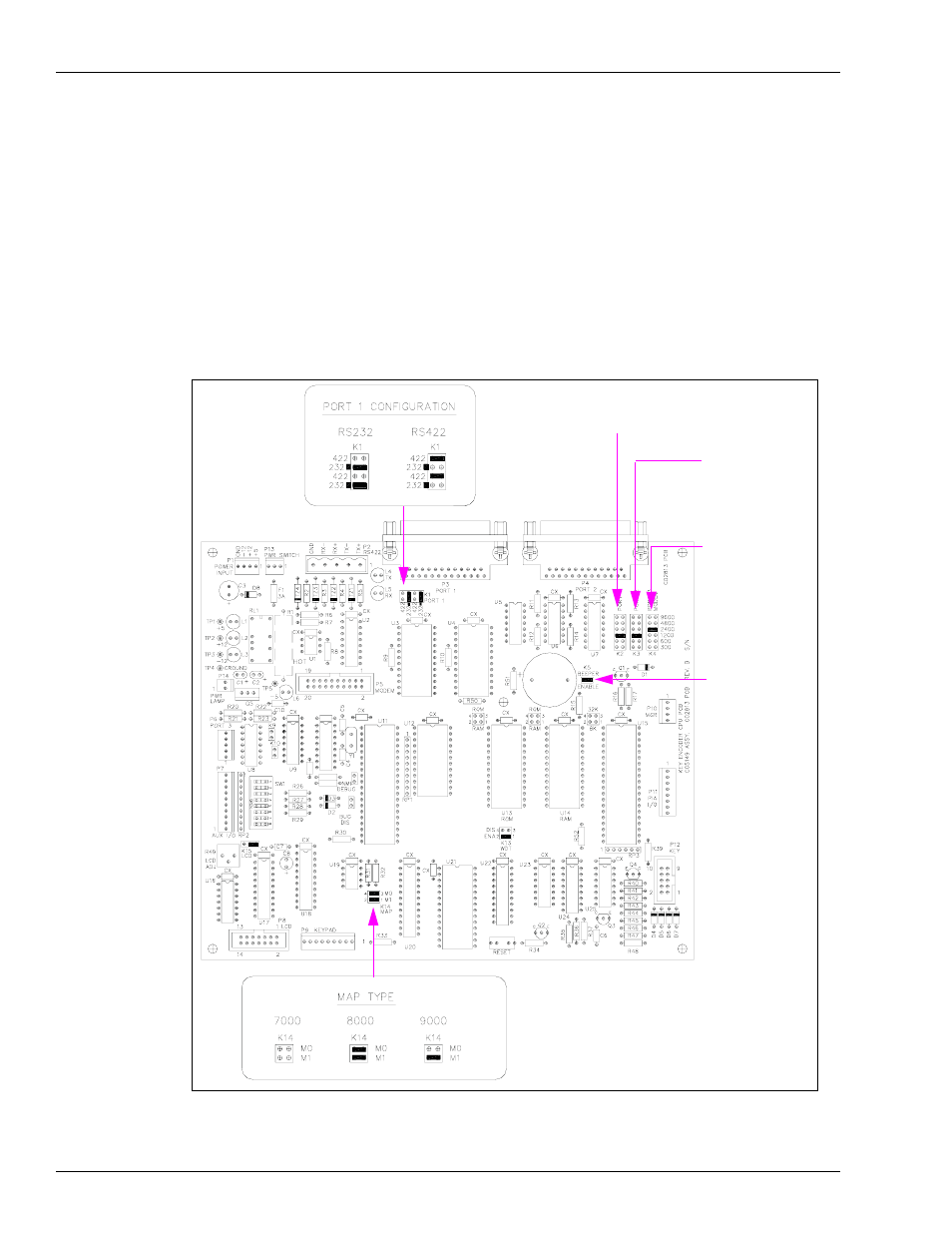

Figure 1-3 illustrates the jumper position for each and shows where the jumper patch appears
on the PCB.
Figure 1-3: KE200 PCB
K2 Baud Rate
Port 1
K3 Baud Rate
Port 2
K4 Baud Rate
Port 3 Modem
K5 Beeper Enable
