Parts List and Preventive Maintenance
KE200 - Exterior View
Page B-2 MDE-4465A KE200 Key Encoder/Maintenance Terminal Operation Manual · October 2007
KE200 - Exterior View

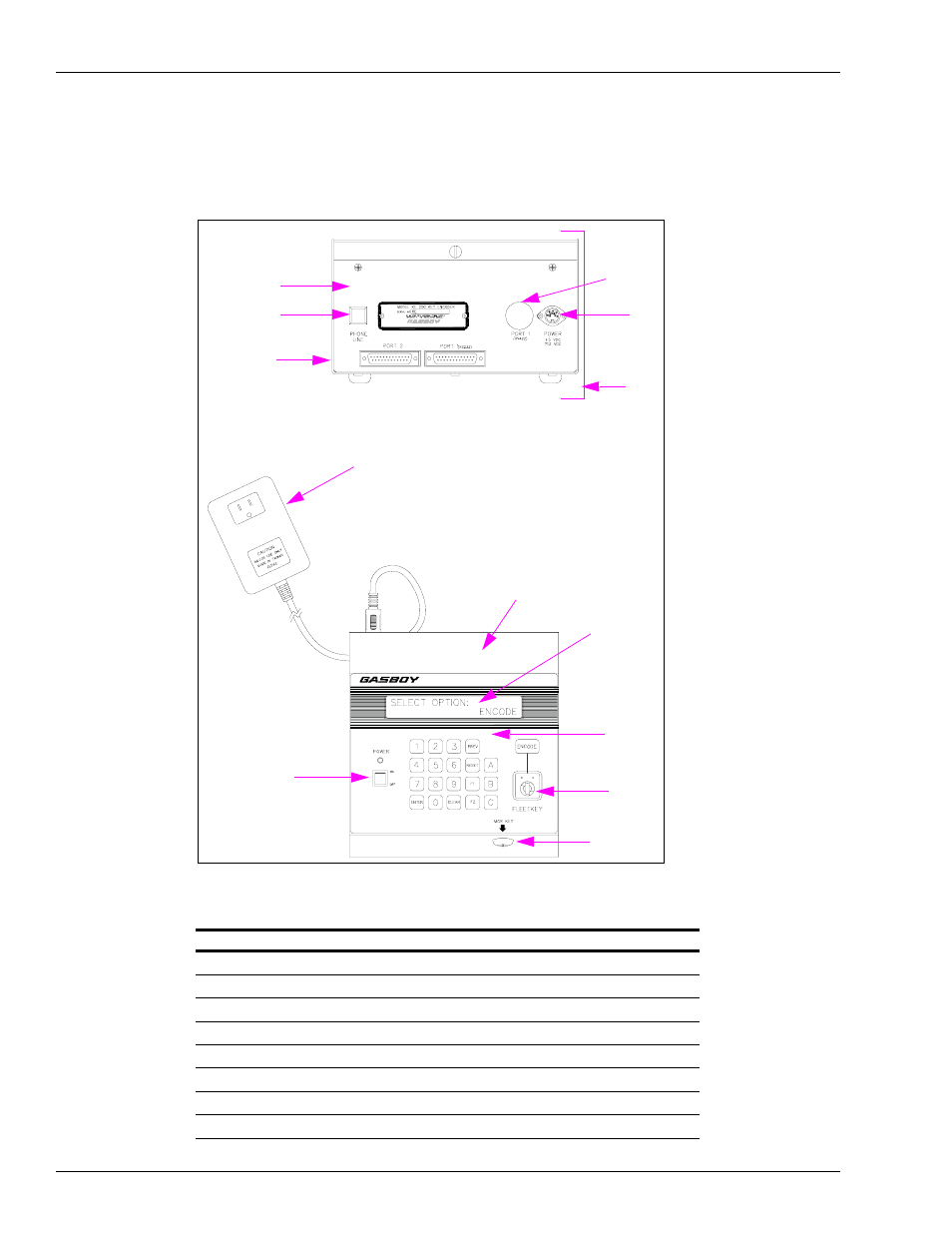

Figure B-1: KE200 - Exterior View
2
3
1
12
10
9
4
5
6
7
8
14
13
Item
Description
Part Number
1
Whole Unit without Power Supply
C06544
2
Plug Button
047219
3
Connector/Cable Assembly
C06296
4
Housing Cover
C35318
5
LCD Display
C06331
6
Overlay with Keypad
C02812
7
Key Receptacle
C02848
8
Manager Switch/Cable Assembly
C06314
