5-4 Broadmore 1750 - Release 4.6
Module and Fan Installation
Overview
Overview
The Broadmore 1750 chassis is normally shipped with modules installed at the factory.
If they have been shipped separately, perform the following procedures to configure
and install the modules.
NOTE: Modules with jumpers are normally configured during installation
to meet user requirements. If the chassis is shipped with modules installed,
the modules may need to be removed, configured, and reinstalled.

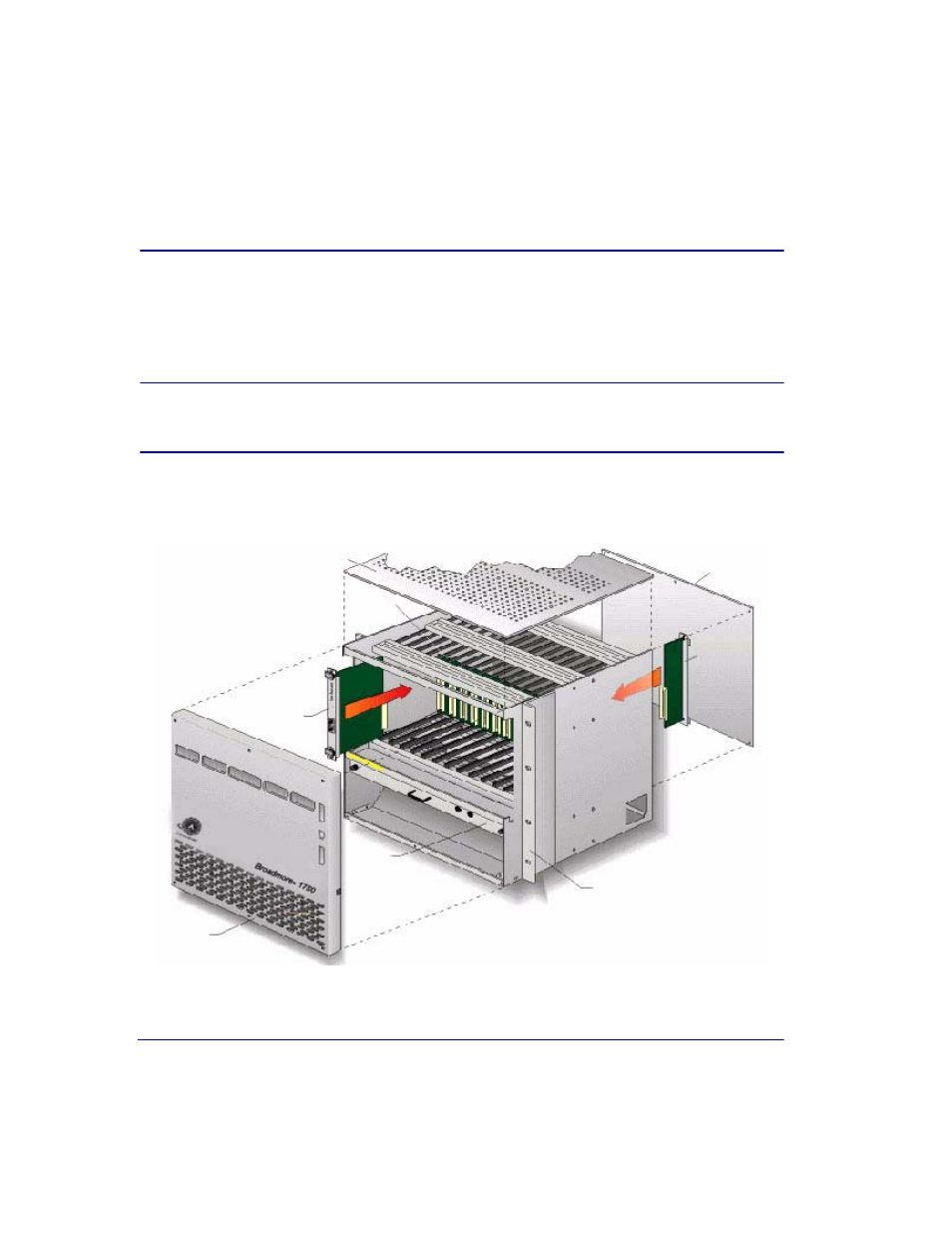

The Broadmore 1750 system architecture is based upon a midplane design allowing
modules to be installed from the front and rear of the chassis, as shown below.
Rear Cover
Midplane*
Chassis Cover*
Network
Interface
Module
Input/
Output
Module
Front
Fan
Cover
Tray
Rack Mounting
Brackets
*Not User Removable
