Product Description
Structured DS3 SAM
Structured DS3 SAM
Module Type SAM
Part Number 7660-672
Slot Number Working: C to N
Protection: P
Features One DS3 port (44.736 Mbps)
Logical connections directly to DS1 or DS0
Description The Structured DS3 SAM provides one bi-directional
port at 44.736 Mbps. Input and output coax connectors
are provided for the port on the IOM. Both PVC and
SVC services are provided. Either may be chosen
through appropriate module configuration.
The Broadmore 1750 supports a maximum of four
Structured DS3 modules with the standard fan tray.
Configurations using more than four Structured DS3
SAMs require a high-capacity 3-fan tray for cooling.
(Contact factory for details.)
Indicators FAULT – normal (no fault), major alarm, minor alarm,
or no connection
ONLINE – normal, standby, or not ready
ALARM (one LED per port) – normal (enabled),
major alarm, minor alarm, or no connection

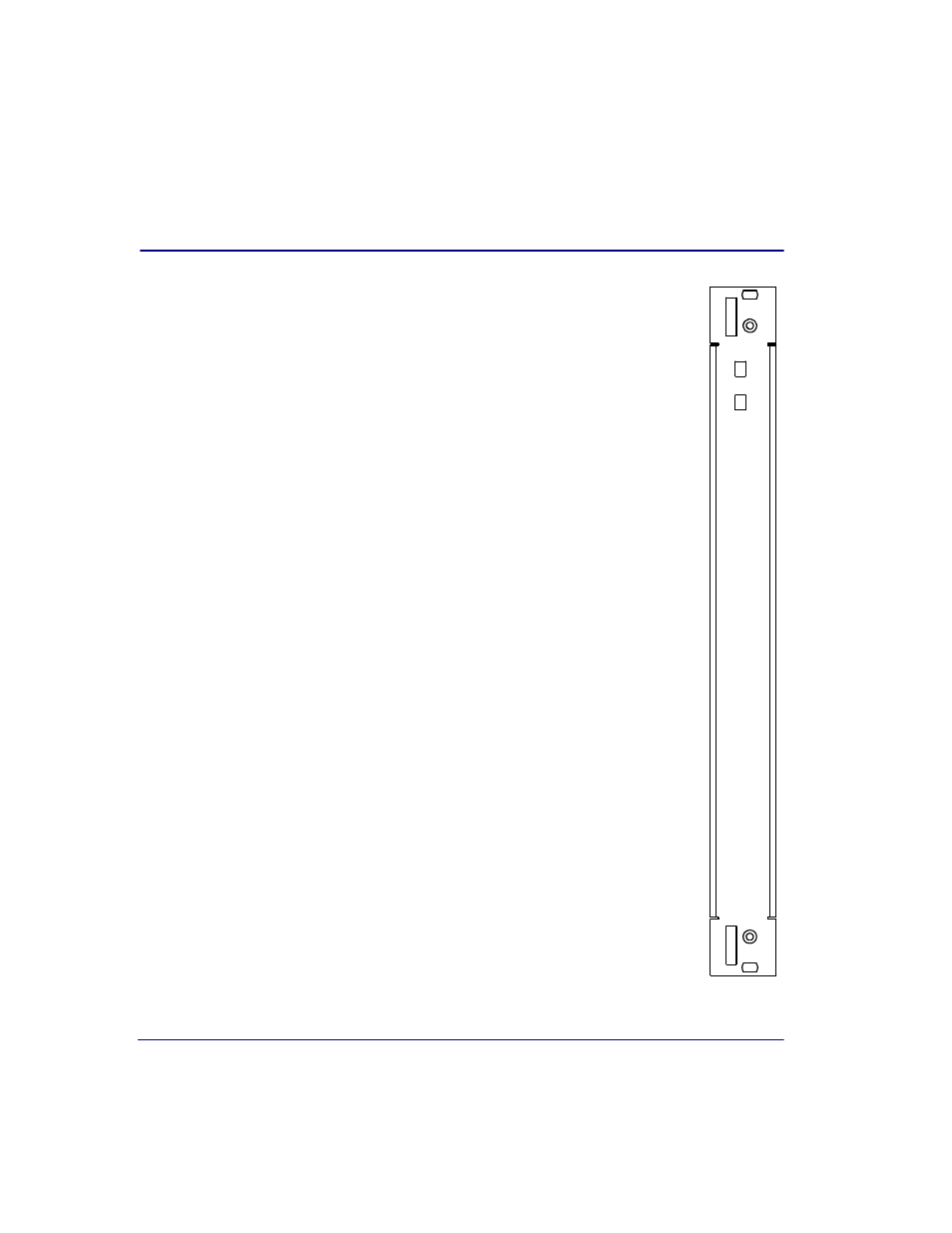

DS3 SAM
STRUCT
F A U L T
O N - L I N E
7 6 6 0 - 6 7 2
