2-8
Broadmore 1750 - Release 4.6
Planning and Ordering Guide
Cell Bus Configuration
Cell Bus Configuration

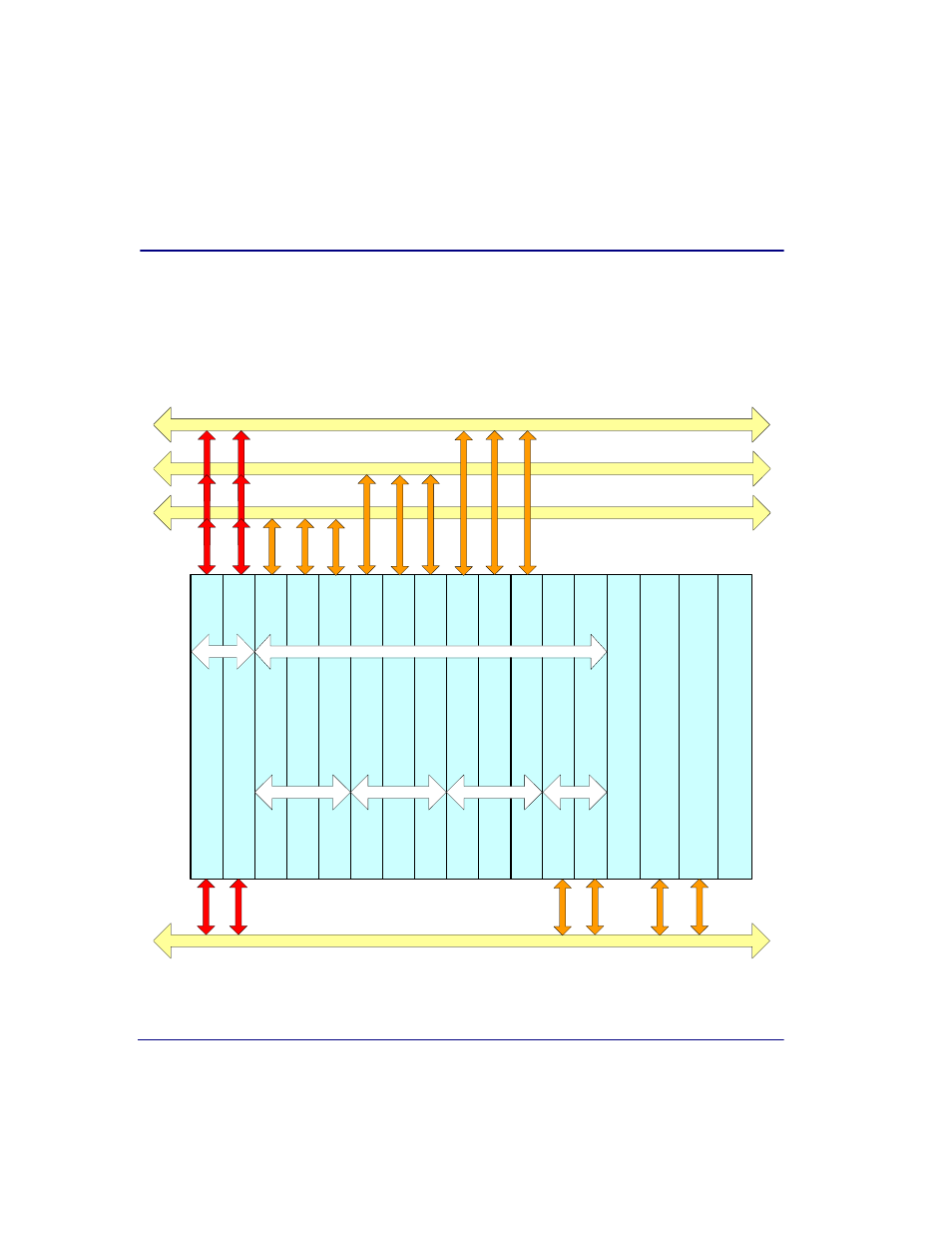

The Broadmore multiplexes user data onto ATM cell buses. Depending on the installed
NIM and SAMs, there can be up to four cell buses, designated A, C, D, and E. Each
cell bus is associated with specific module slots, as shown below.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
NIM Slots
CELL BUS E
CELL BUS D
CELL BUS C
Available Bandwidth is 152.520 Mbps
Available Bandwidth is 152.520 Mbps
Available Bandwidth is 152.520 Mbps
CELL BUS A
Available Bandwidth is 129.480 Mbps
SAM Slots
CPU
Q
CPU
R
APM
SAM
Pro-
tection
Slot
Cell Bus C
Cell Bus D
Cell Bus E
Cell Bus A
