Broadmore 1750 - Release 4.6 6-9
Electrical Installation
Unstructured DS3-3/E3-3 IOM Connections
Unstructured DS3-3/E3-3 IOM Connections

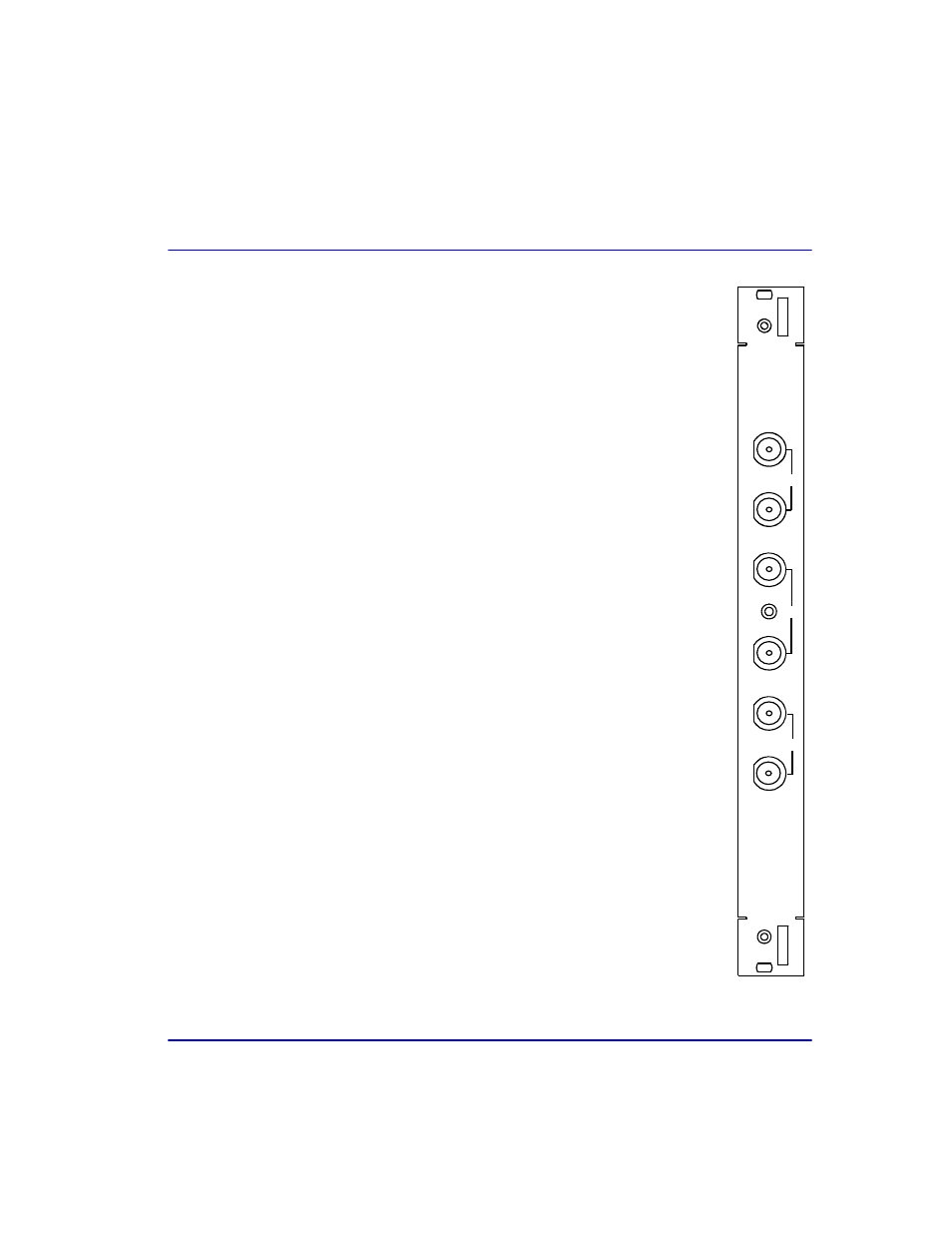

Each Unstructured DS3 IOM provides three pairs of BNC coaxial
connectors (labeled 1 to 3) for RG-59, 75 ohm cable.
1. Connect receiver RX inputs to the IN ports.
2. Connect transmitter TX outputs to the OUT ports.
IOM
DS3
IN
OUT
1
IN
OUT
IN
OUT
7 6 6 0 - 4 0 9
2
3
