Broadmore 1750 - Release 4.6 4-7
Chassis Installation and Grounding
Chassis Grounding
Chassis Grounding

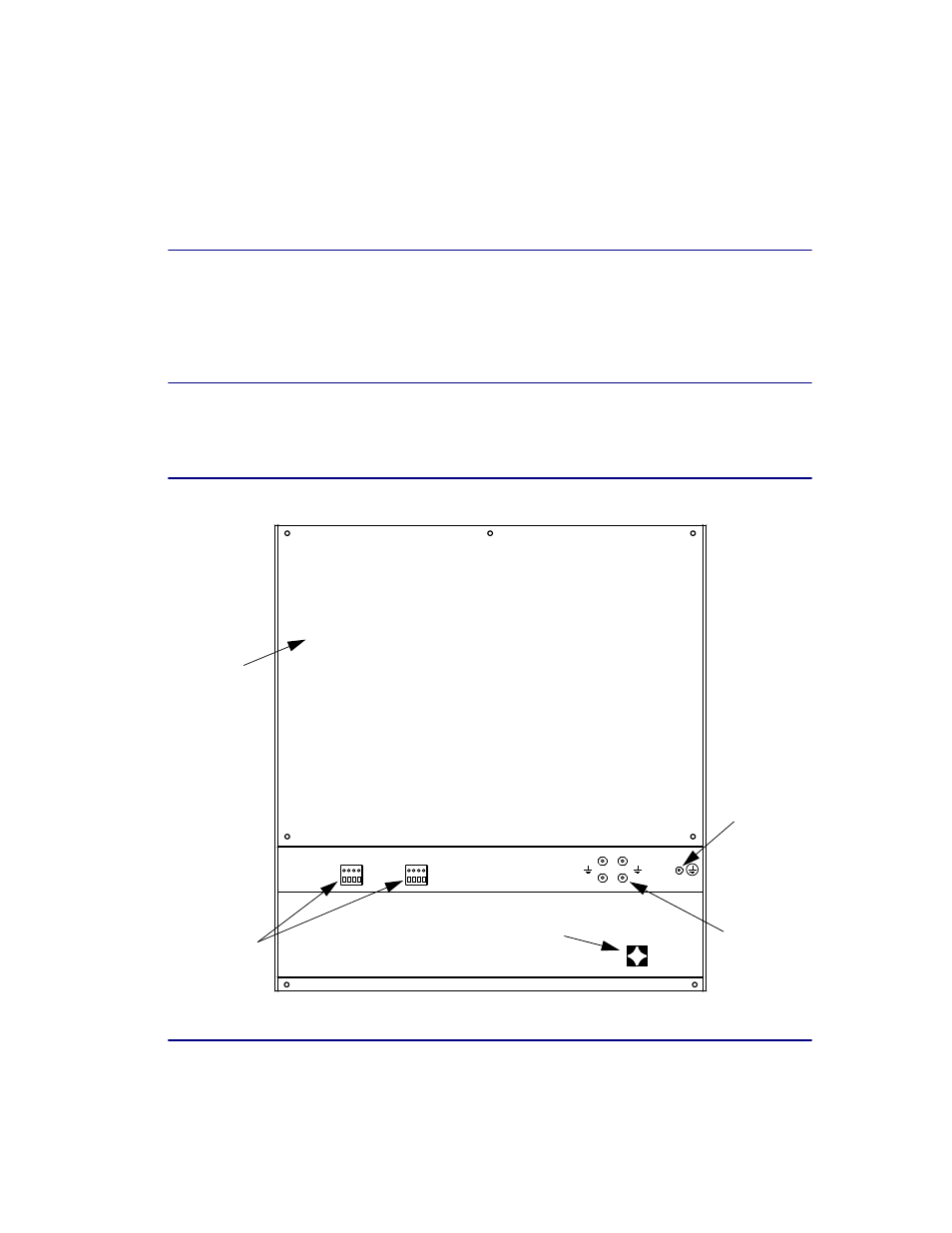

The Broadmore 1750 chassis has a chassis ground stud on the rear panel for connecting
a ground wire to the equipment rack building ground.
WARNING! T HE INSTALLER SHALL BE RESPONSIBLE FOR PROVIDING
A PROPER CHASSIS GROUND CONNECTION . C ONNECT BUILDING GROUND
TO THE CHASSIS GROUND STUD . D O NOT USE THE SIGNAL GROUNDING
STUDS FOR THE BUILDING GROUND CONNECTION .
C h a s s is
G r o u n d
Chassis
Ground
Stud
Ground
for ESD
Wrist Strap
Signal
Ground
Studs
-48 VDC
Power
Connections
Rear
Cover
