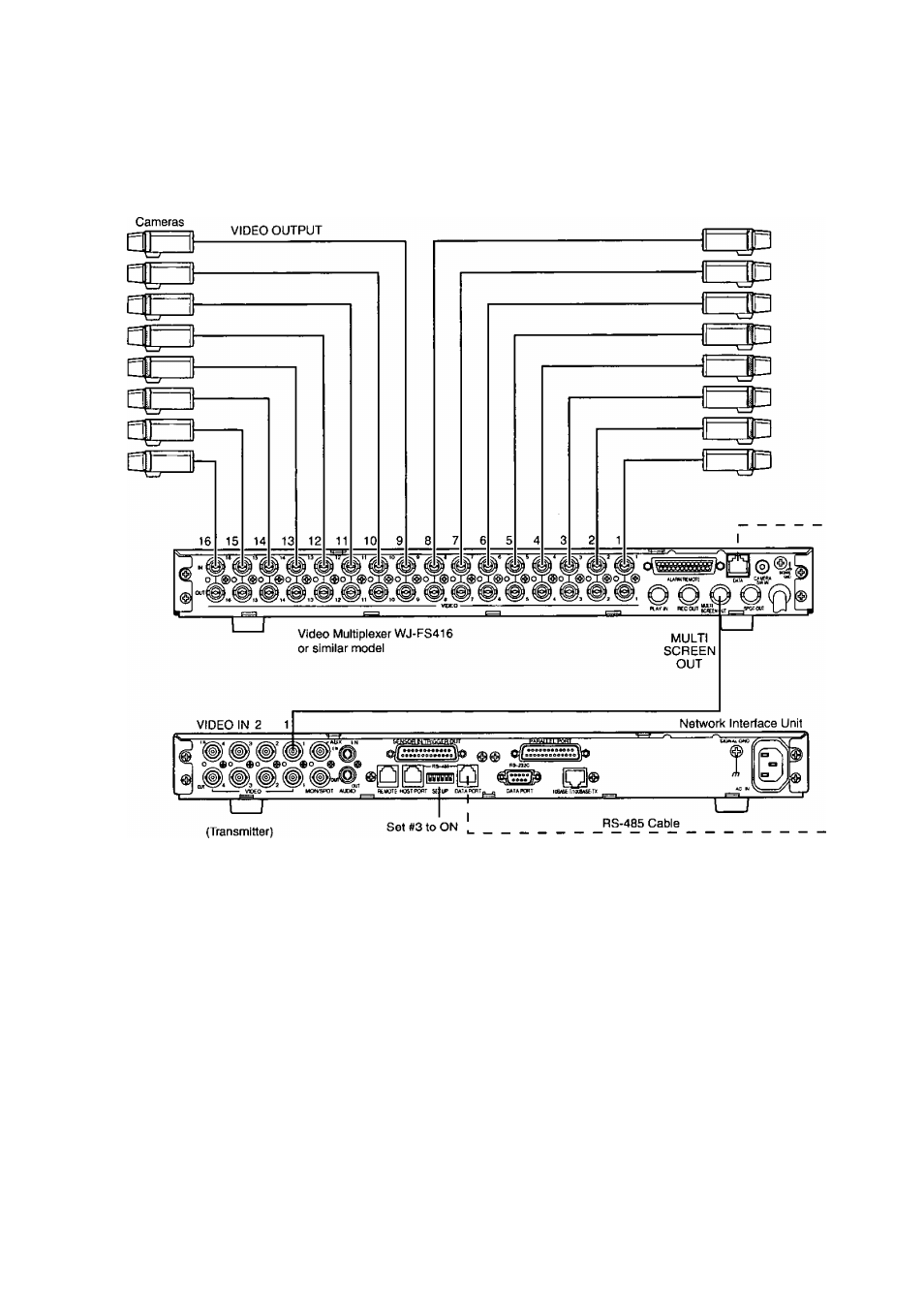

When the site contains the Video Muitiplexer, connect it with cameras as shown. More connections are needed from

MULTI SCREEN OUT to VIDEO IN 1, and RS-485 connections.

3. Video M ultiplexer Connections
