A D V A N C E D M A K E R U N F E A T U R E S
Creating and Editing Gauges (Templates)
Version 2
WinPEP 7 User Guide
6-17
4
Edit the properties.
The multiple channel gauges and graphs have additional properties the single
channel gauges do not.
4a
Right click on the graph and choose Properties.
The Trend Graph Property Editor dialog box will appear.
4b
Select the different Data Channels to be displayed from the drop down lists.
The
can display up to twenty different data channels.
4c
Select the number of data channels to be displayed on the trend graph from
the Number of Bars drop down list. The number you choose here will
determine how many of the data channels will be displayed on the gauge.
4d
You may edit the Primary Title to be displayed on the graph.
4e
The Secondary Titles are set automatically when Use Default Titles on
Gauges or Display Units on Gauges is selected. Refer to page 6-19 for more
information.
Do not change the lower title if you want these titles to change automatically
when language and units are changed.

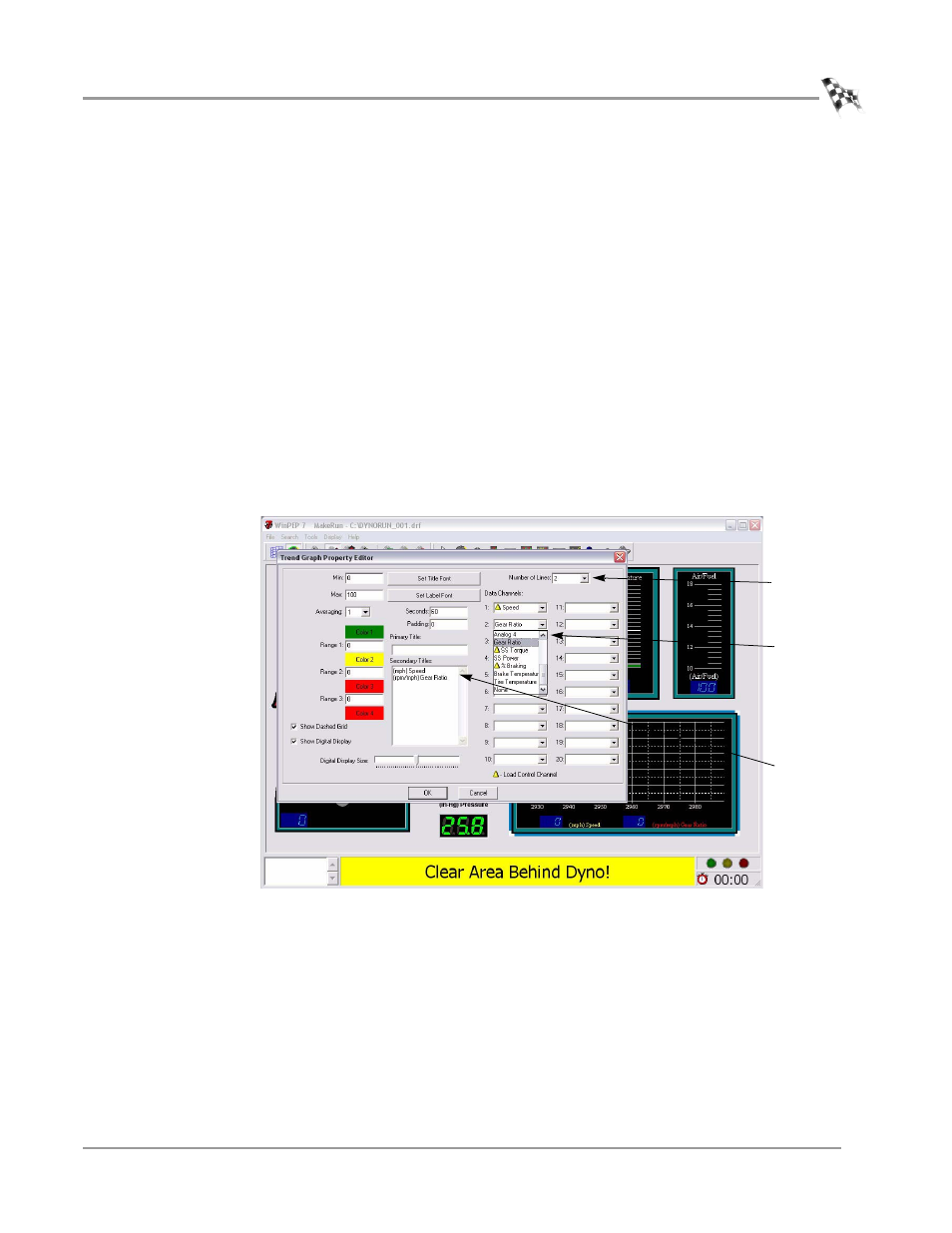

Figure 6-17: Edit Gauges—Trend Graph Property Editor
data channel
drop down list
number of bars
drop down list
secondary title
