WinPEP 7 User Guide

C H A P T E R 6
Run Options

6-8

Custom Load Testing
• X-Channel—select from speed, engine speed, or time.
• Y Channel—select from speed, engine speed, cell torque, SS torque, or

%

braking

.

• Input Cells—enter values for your custom step test into the input cells.

The X channel value controls the Y channel value.

• Graph area—displays the custom step test channels and values.
• Open, Save As and Clear All icons—use these icons to open, save, and

clear custom loads.

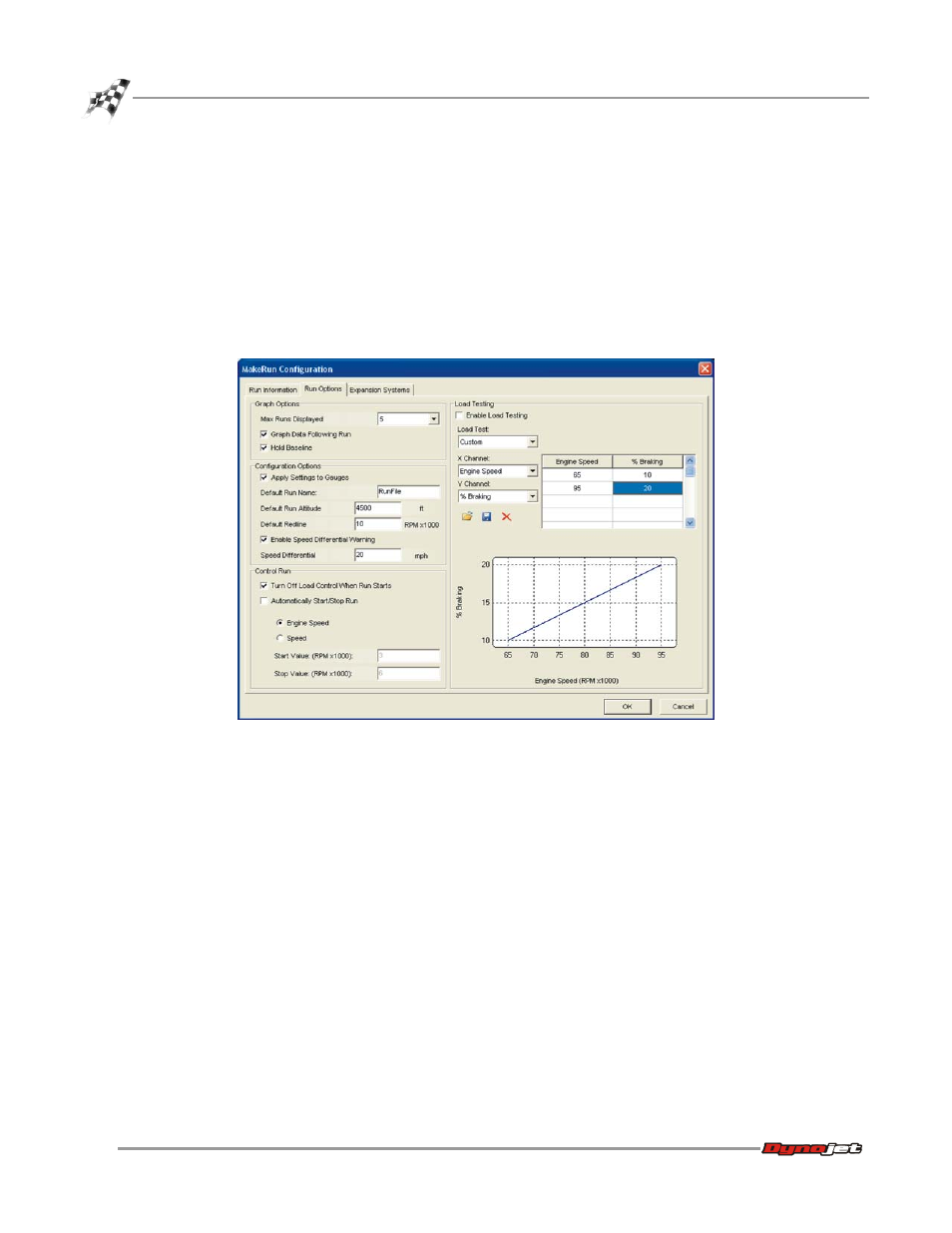

Figure 6-11: Load Testing—Custom Test
