A D V A N C E D B R E A K O U T B O A R D

Advanced Breakout Board

Version 2

WinPEP 7 User Guide

E-11

U

SING

L

OAD

C

ONTROL

WITH

T

HE

A

DVANCED

B

RAKE

C

ONTROLLER

When using load control you must have Gauges Tied in order to use braking applied
to both dyno drums. When gauges are tied, controlling Speed 1 will control Speed 2
automatically. If you do not have gauges tied, you can only control Speed 1. You must
be connected to the dyno electronics for the list of channels to be available.

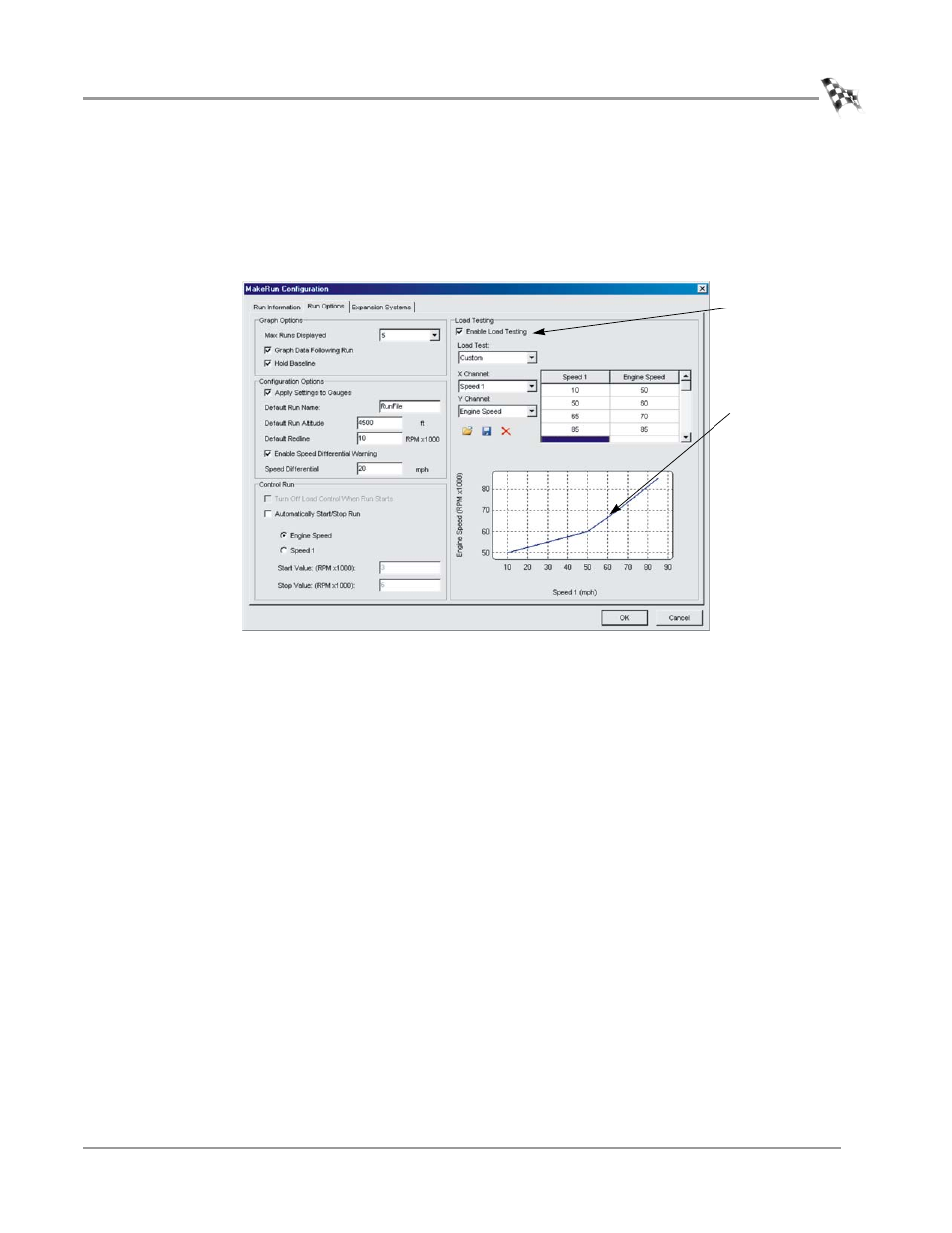

Figure E-9: Load Control Screen

custom load test

load testing enabled
