WinPEP 7 User Guide
A P P E N D I X G
G-8
V IEWING THE R ESULTS
PIDs streaming during the dyno run are available to be graphed right along side all of
the standard channels such as HP, Trq, AFR, and RPM. This feature will be
instrumental to assist you with troubleshooting, tuning, and maintaining consistency
during dyno testing.

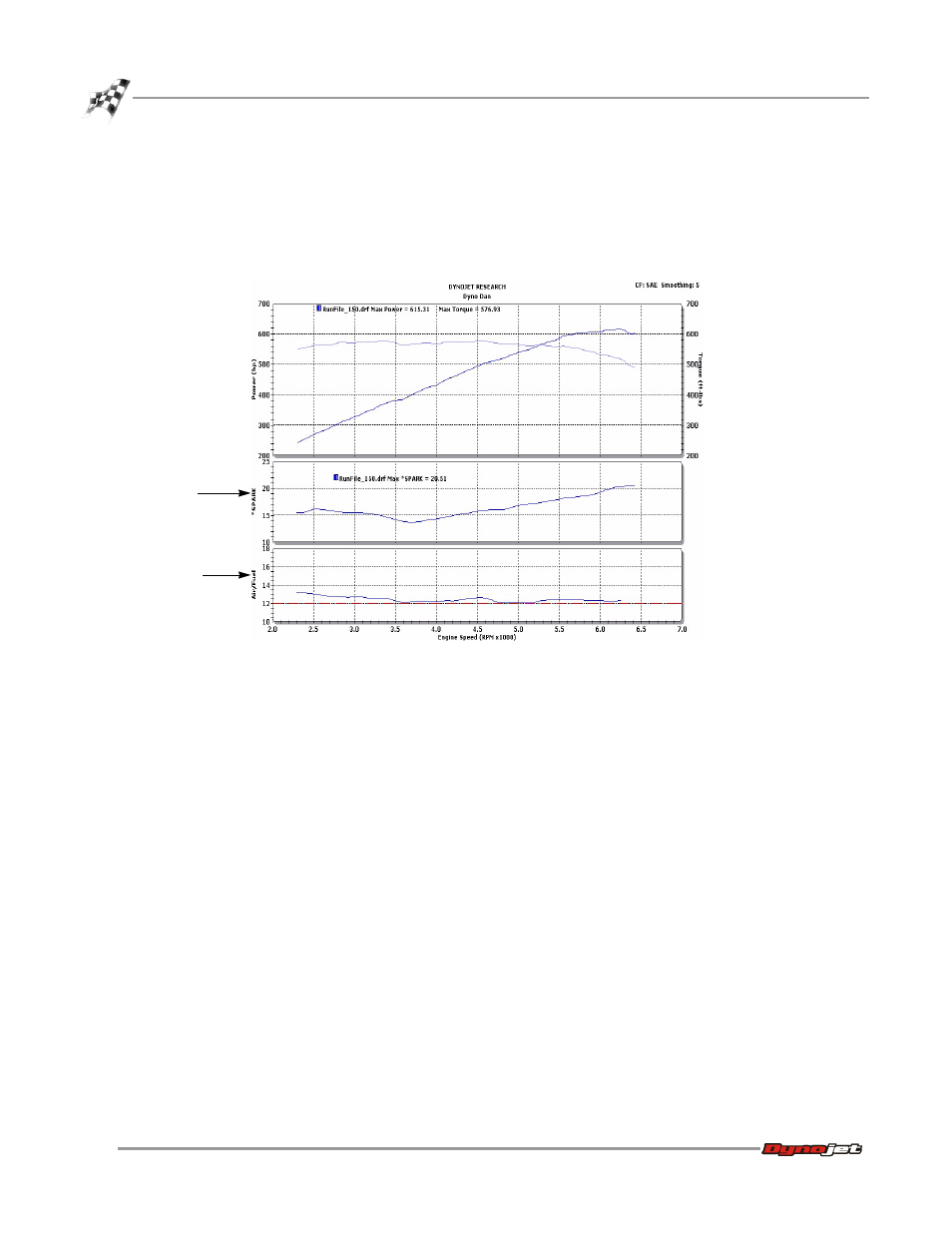

Figure G-6: Graph Example
streaming
PID channel
standard data
channel
