WinPEP 7 User Guide

C H A P T E R 2
Dyno Electronics

2-6

T

HE

P

ENDANT

The dyno electronics is equipped with a standard two-button

pendant

that lets you

control

sampling

and braking from your vehicle. The pendant works with WinPEP 7;

however, many of WinPEP 7’s newest features can only be controlled using the
keyboard or mouse.

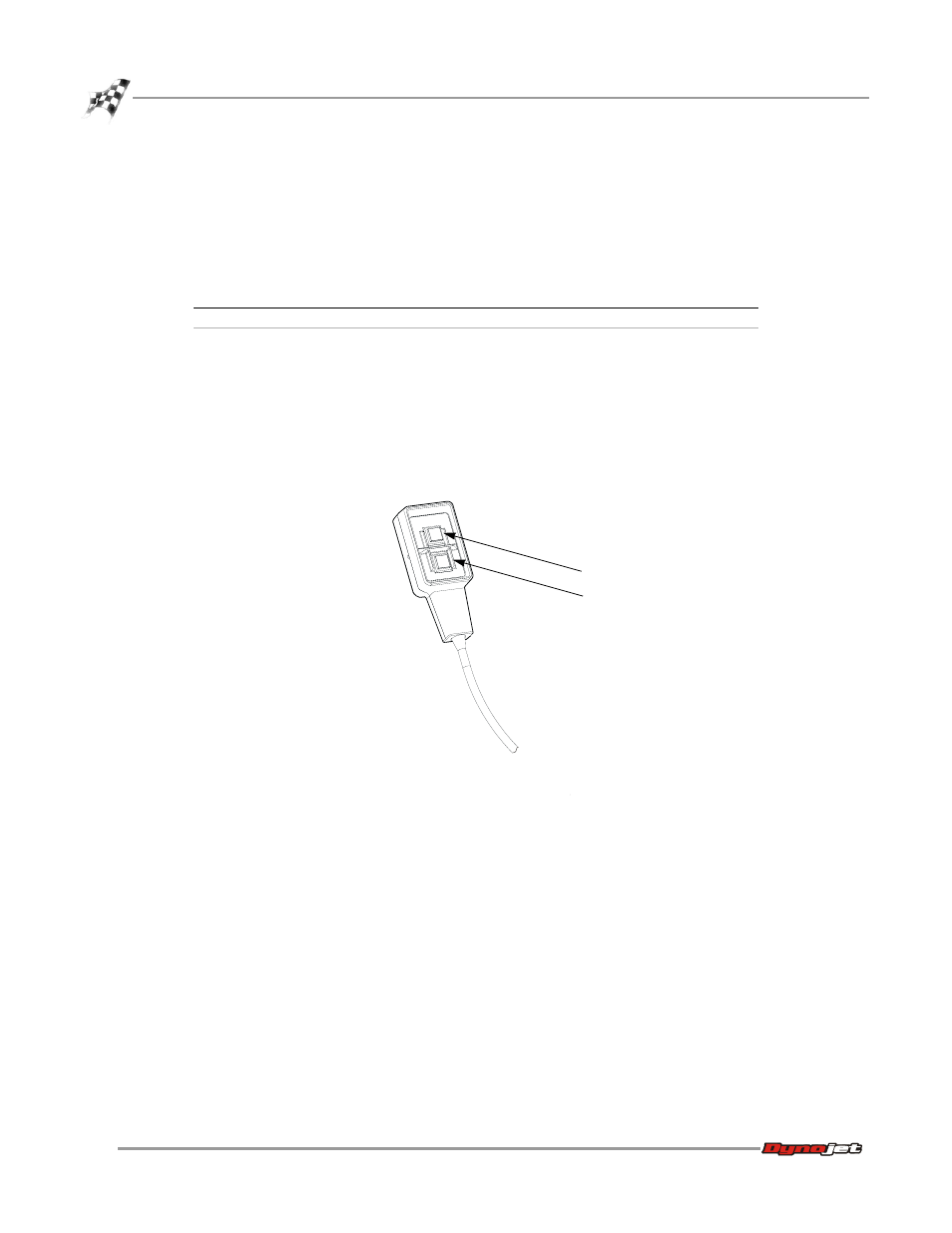

Figure 2-2: Standard Two Button Pendant

press this button

to

Red

Turn on the emergency brake (apply 100% braking).

Green

Move to the next step in the run loop:
• Start/stop sampling
• Close Graph
• Close special MakeRun dialog boxes
Click and hold to toggle load control on and off

(available only when load control is supported)

green button

red button
