Data Link Module - HD Delphi ECM Set Up
F-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DATA LINK MODULE - HD DELPHI ECM SET UP
The Dynojet Data Link Module (DJ-DLM) allows data, such as engine temperature and
relative manifold pressure, to be transmitted from the motorcycle’s Electronic Control
Unit (ECU) via the motorcycle’s data port. This information can be stored during a
dyno run and then analyzed and reviewed using the WinPEP 7 software. The Data Link
Module is great for PCM tuning and maintaining consistency while dyno testing.
C
ONFIGURING
THE
D
ATA
L
INK
M
ODULE
1
Connect the Data Link Module to the bike’s data port.
2
Connect the USB connector from the Data Link Module to the USB port of the
computer where you are running the WinPEP software.
3
Turn the motorcycle’s key to the ON position. If you have a “ready to start” switch
make sure it is in the ON position.
4
Verify you are in the WinPEP software’s MakeRun screen.
5
Verify your computer is connected to the dyno electronics and the dyno electronics
is powered on. Refer to “Connecting the Dyno Electronics” on page 3-11 for more
information.
6
Click the MakeRun Configuration button
.
7
Click the Expansion Systems tab.
8
Select the Dynojet Data Link Module.
9
Click the Configure button.

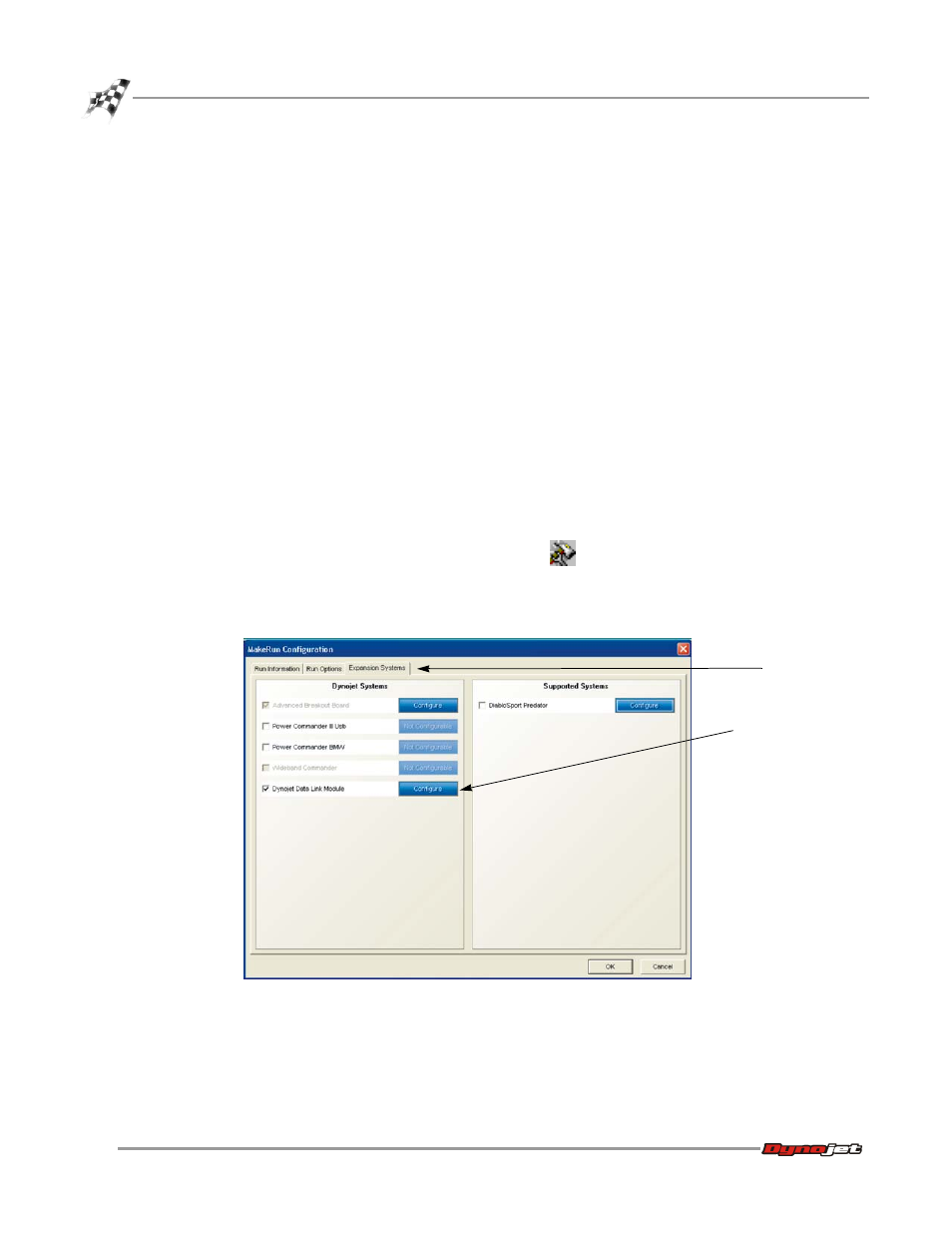

Figure F-1: MakeRun Configuration—Expansion Systems
configure button
expansion
systems tab
