M A K I N G A R U N

Making a Run—Negative Horsepower

Version 2

WinPEP 7 User Guide

4-7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAKING A RUN—NEGATIVE HORSEPOWER

The dynamometer calculates horsepower (positive) by measuring how fast the drums
accelerate. If drum deceleration was measured and graphed, we would be viewing
negative horsepower. In order to show negative values on your graphs you need to
turn this option on.

G

RAPHING

N

EGATIVE

V

ALUES

1

Choose Tools

!

Graph Options

!

Properties. You may also right click on the

graph and choose Properties.
The Graph Options dialog box will appear. This dialog box allows you to
customize your graph view.

2

Click on the General tab.

3

In the View Options area, select Display Negative Values.

4

Click OK.

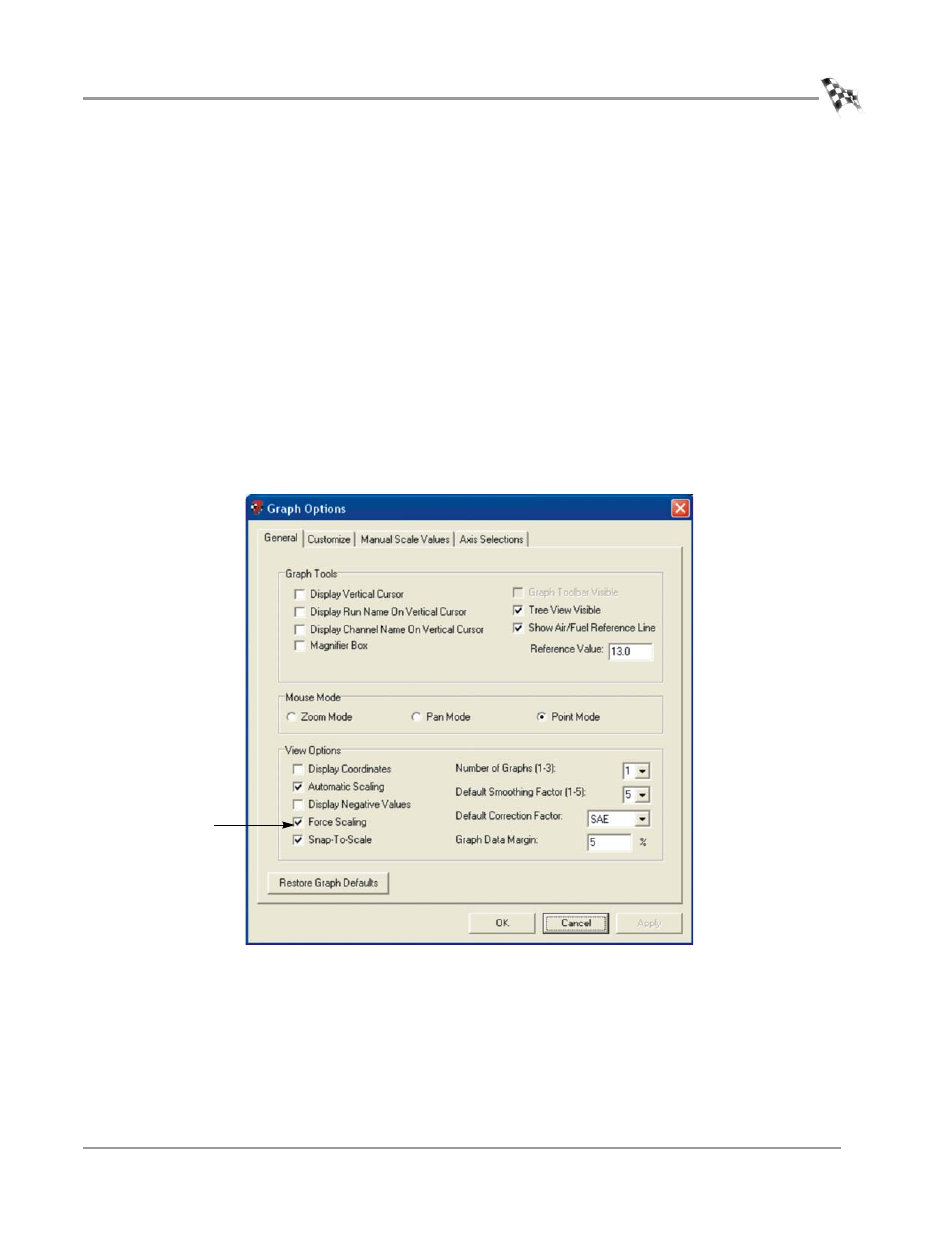

Figure 4-5: Making a Run—Display Negative Values

display negative

values
