A D V A N C E D G R A P H F E A T U R E S
Graph Options
Version 2
WinPEP 7 User Guide
7-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRAPH OPTIONS
There are many options available to you in the graph screen. To view the complete list
of graph options choose Tools
!
Graph Options. To quickly access the more
common options right click on the graph. A description of the options follows.

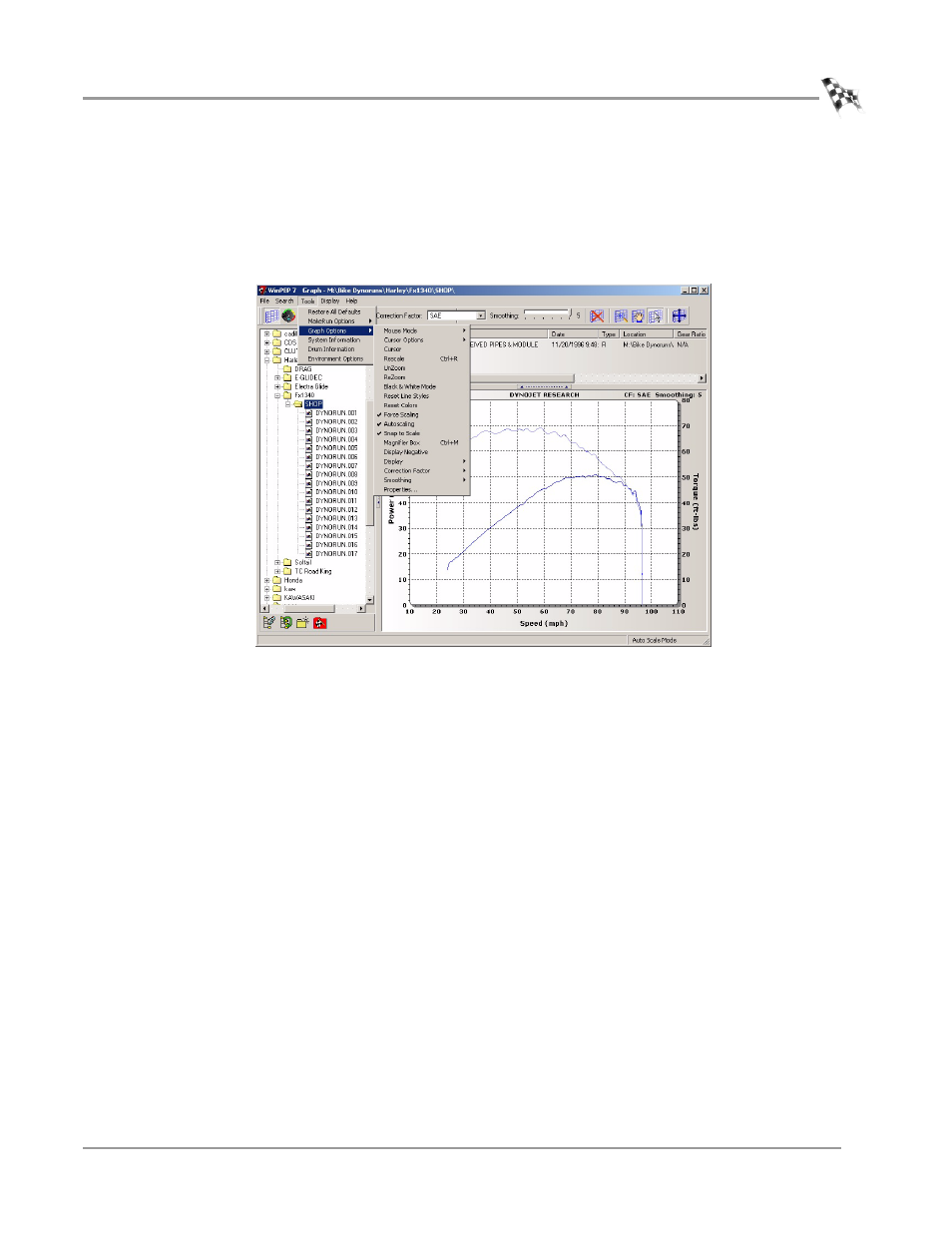

Figure 7-5: Graph Options
Mouse Mode—changes the mouse between point, pan, and zoom mode.
• Point Mode — lets you move the vertical cursor and select runs.
• Pan Mode — lets you move the graph around inside the window.
•
— lets you change the magnification level in the graph display.
Cursor—turns the vertical cursor on and off. The cursor may be placed with a mouse
click on the graph, and the arrow keys (optionally in combination with the CTRL key)
move the cursor left and right. The cursor places a vertical line on the graph that will
display the values where the line intersects the graphed runs.
Cursor Options—determines what will be displayed along with the intersection
values.
• Display Run Name — displays the run name.
• Display Channel Name — displays the channel name.
• Font Size — lets you change the font size between small, medium, and large.
