Editors Chapter 3. Concepts
Overview Page
The Overview page contains all the properties that govern the structure and configuration of the ROM
wrapper.

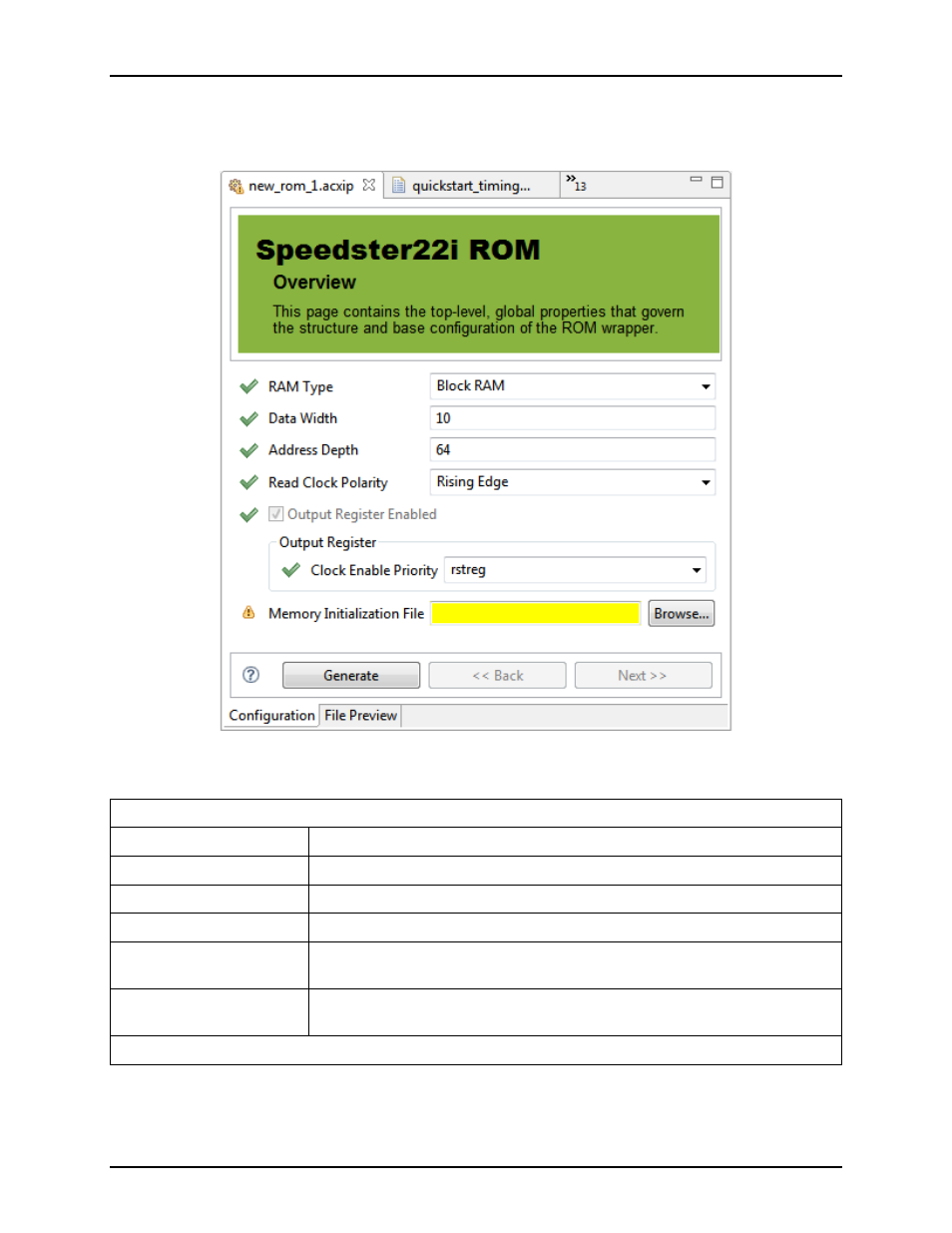

Figure 3.48: ROM IP Editor Overview Page
ROM Editor Overview Page Options
Option Description
RAM Type The ROM can be built out of Block RAMs or Logic RAMs.
Data Width Data width of the read port.
Address Depth Desired address depth of the ROM.
Read Clock Polarity The read port clock polarity can be set to use either rising edge assignment
or falling edge assignment.
Output Register Enabled When the Output Register is enabled, there is an additional cycle of latency
for each read operation.
Output Register
