Editors Chapter 3. Concepts
Rx PMA PLL Page
This page allows customization of the Rx PLL settings of the Interlaken wrapper.

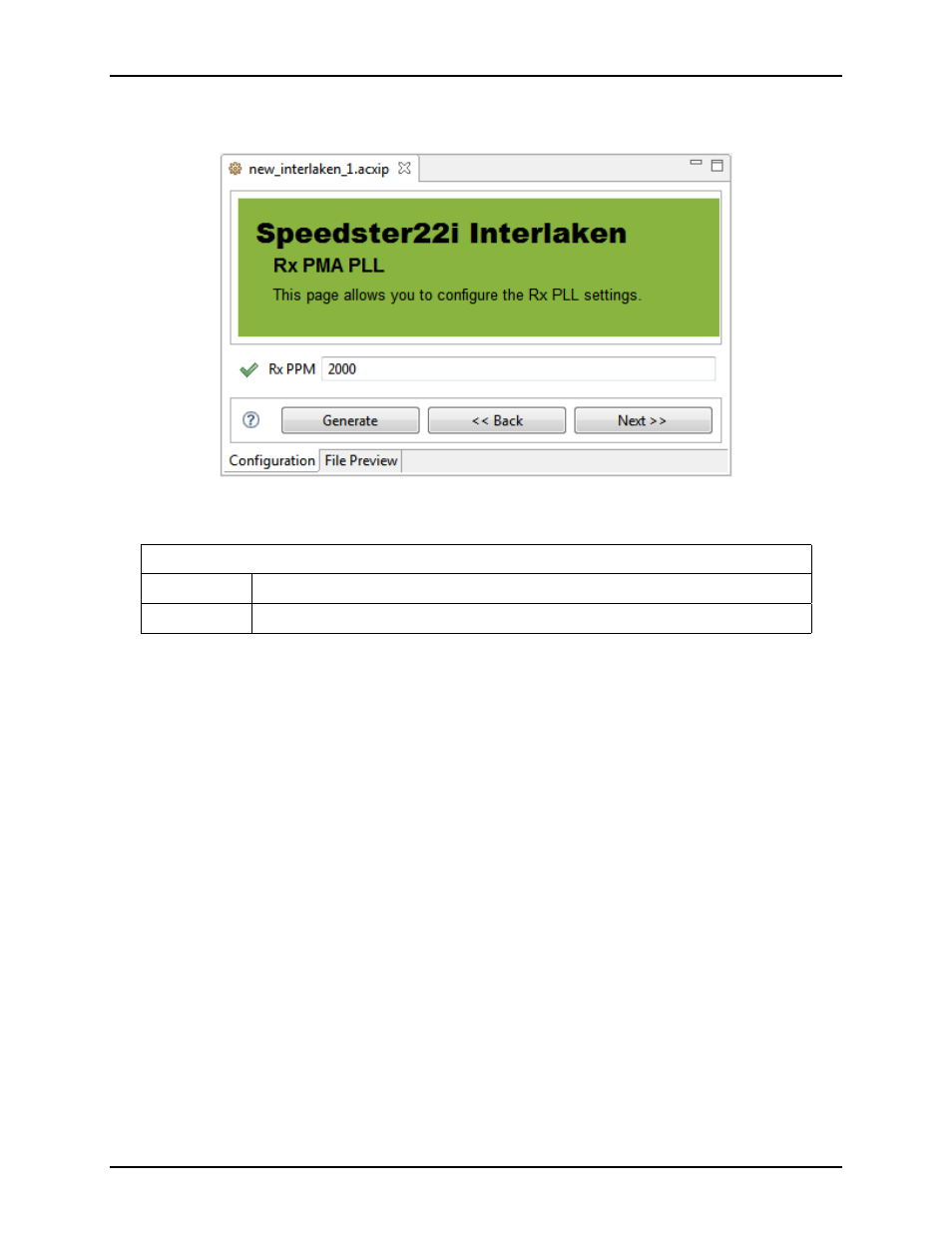

Figure 3.30: Rx PMA PLL Page – Interlaken Configuration Editor
Rx PMA PLL Page Options
Option Description
Rx PPM When Rx PLL is within this PPM range PMA will consider Tx PLL to be locked
