Editors
Chapter 3. Concepts
Placement Page
The Placement page contains configuration information relating to the PLLs placement in the Speedster
device. The site chosen will be exported in a placement constraints (
.pdc
) file when the user chooses to
generate their PLL design files.

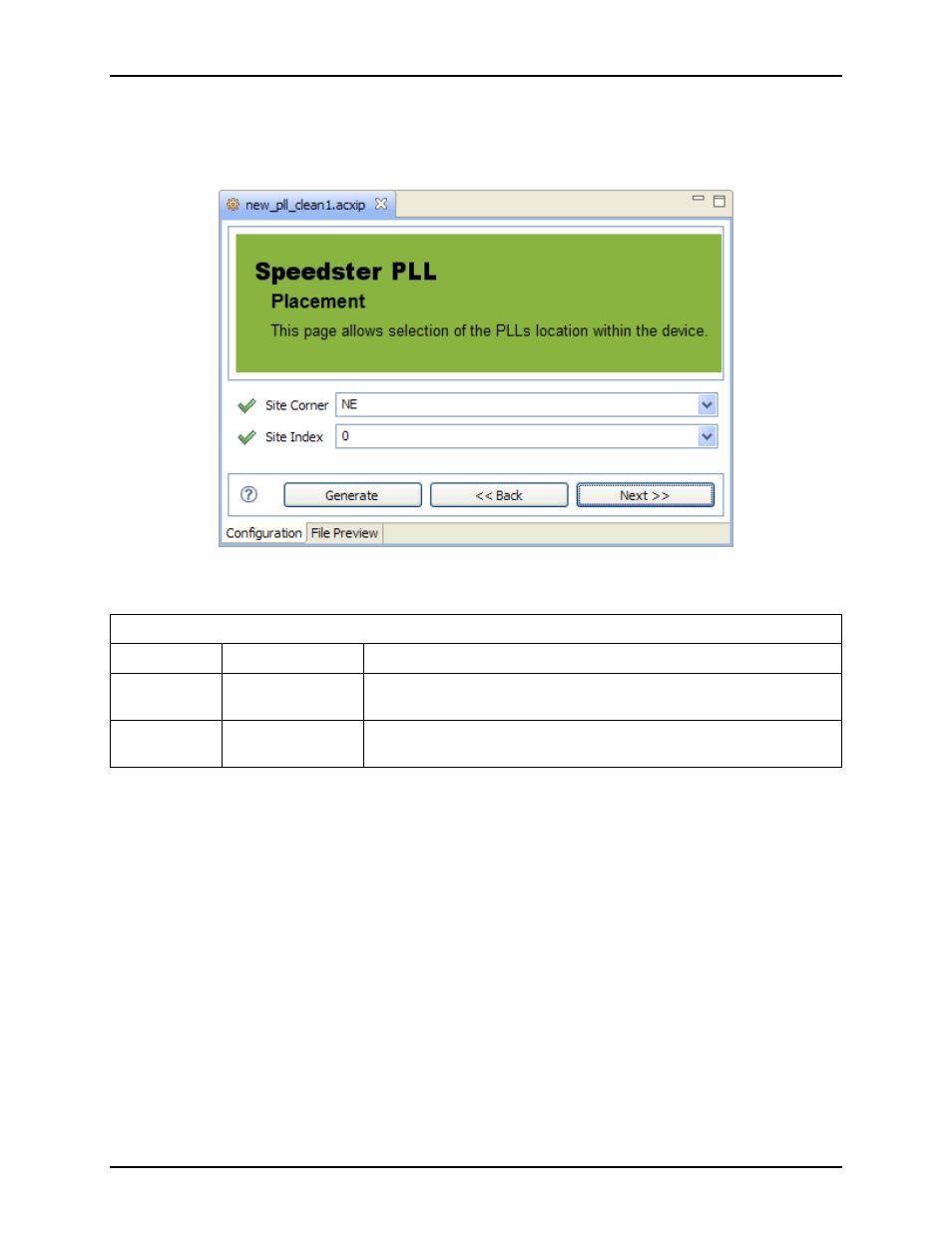

Figure 3.4: Advanced PLL IP Editor Placement Page
PLL Editor Placement Page Options
Option
Editable
Description
Site Corner
Y
The corner of the Speedster22i device where this PLL instance
should be placed. The four choices are NE, SE, SW, and NW.
Site Index
Y
The site index within the corner where this PLL instance should be
placed.
