Overview Page
The Overview page contains all the properties that govern the structure and configuration of the LRAM
wrapper.

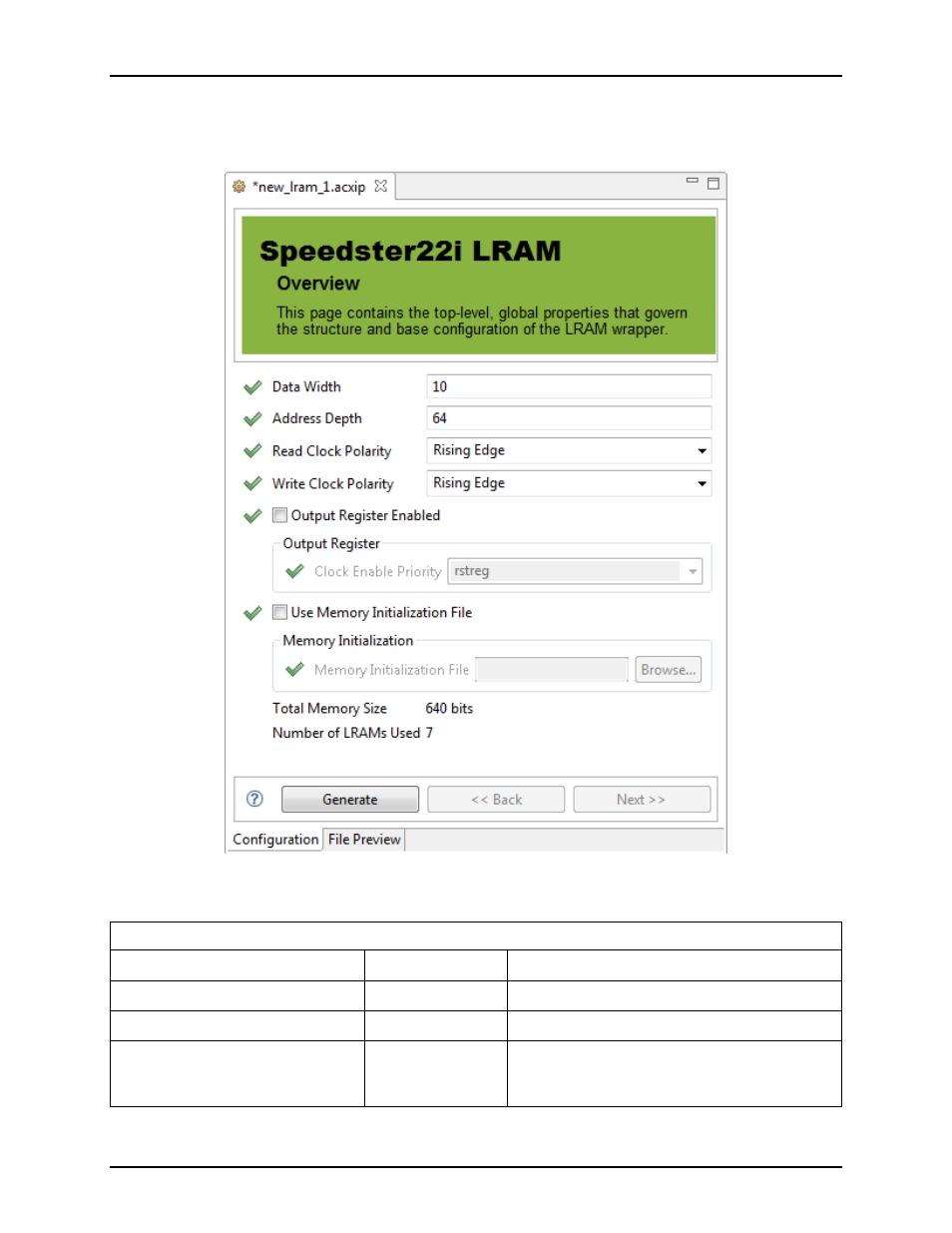

Figure 3.37: LRAM IP Editor Overview Page
LRAM Editor Overview Page Options
Option
Editable
Description
Data Width
Y
Data width of read and write ports.
Address Depth
Y
Desired address depth of the LRAM.
Read Clock Polarity
Y
The read port clock polarity can be set to use
either rising edge assignment or falling edge
assignment.
