Editors
Chapter 3. Concepts
FIFO Configuration Editor
The FIFO Configuration Editor provides a graphical wizard for creating a FIFO configuration file (.acxip).
This editor allows the user to generate the required configuration files for design with the embedded
BRAMs. See
By default, the FIFO Configuration Editor is included in the IP Configuration perspective (Window→Open
Perspective→IP Configuration
) (
).
Once the user has configured the FIFO to meet their requirements, and the FIFO Editor has determined that
there are no errors in the configuration, the user may choose to generate their IP design files (see
IP Diagram
The module diagram in the
shows the inputs and outputs of the current FIFO
configuration.

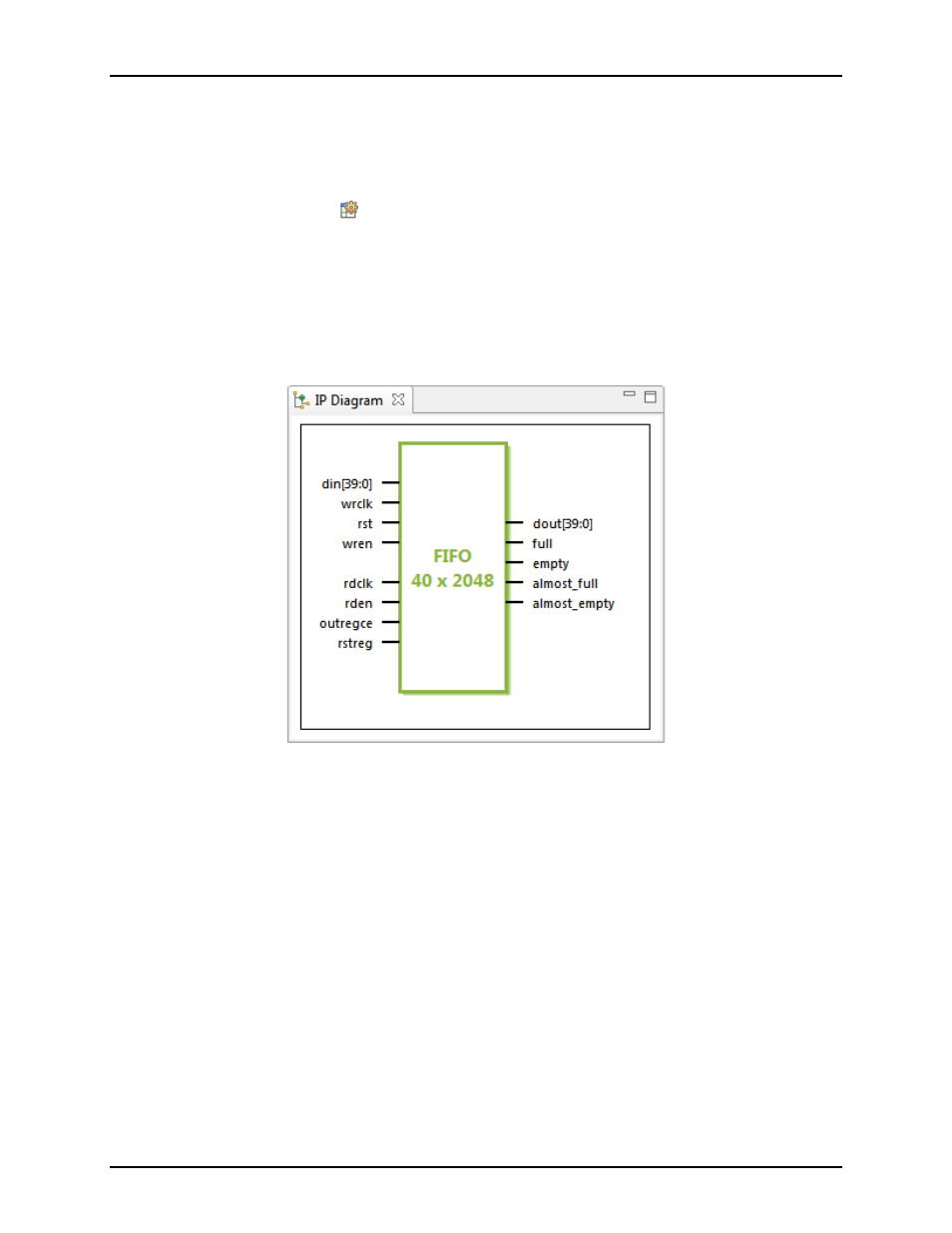

Figure 3.23: FIFO Configuration Editor IP Diagram
