Dialogs Chapter 3. Concepts
Generate a Pin Assignment Report Dialog
The ”Generate a Pin Assignment Report” dialog allows the user to generate a customized Pin Assignment
Report with a column organization identical to the current organization of the columns in the ” IO
Assignment View ”.

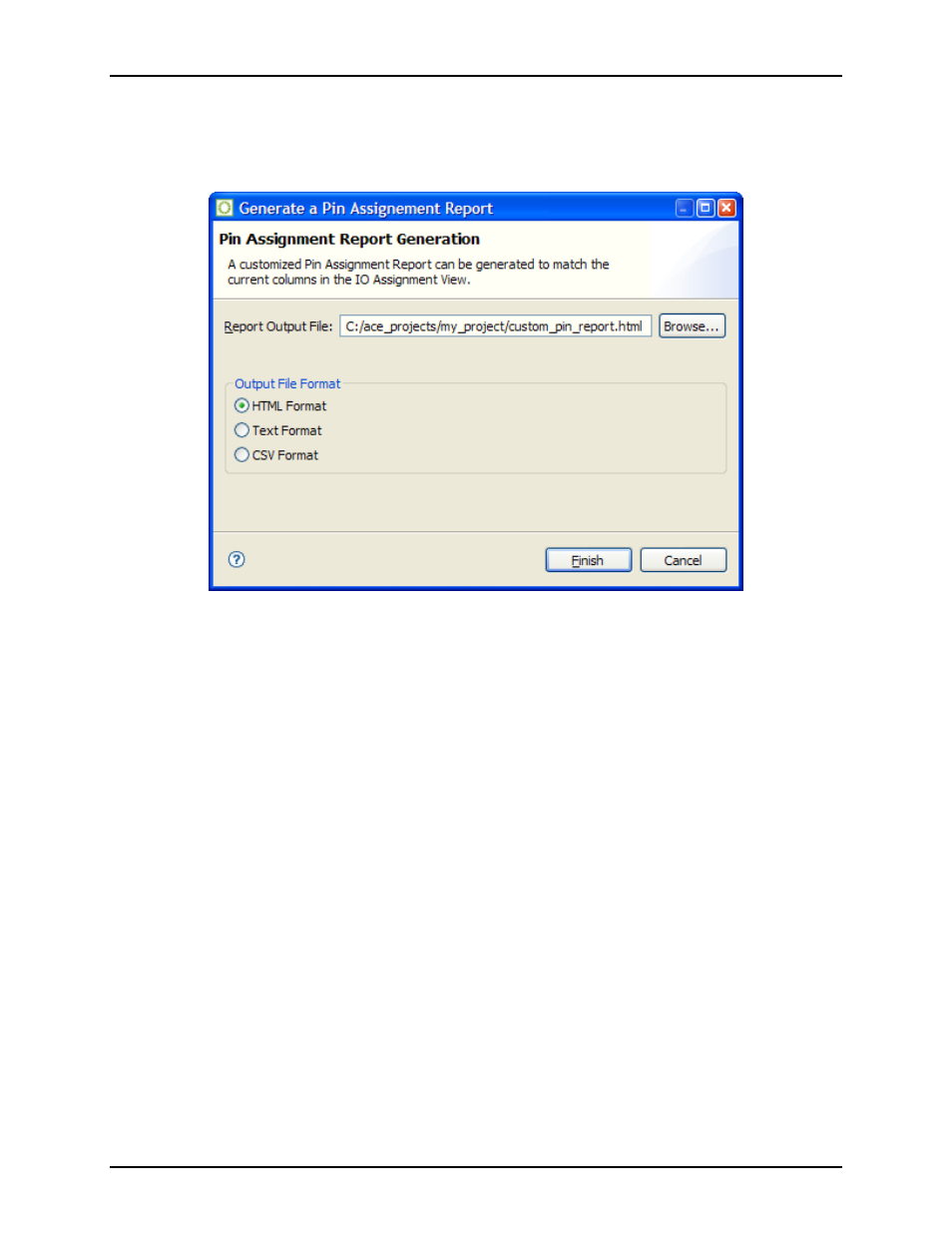

Figure 3.106: Generate a Pin Assignment Report Dialog
