01
.
21
1)
DIN
S
ig
na
l
up t
o 2 A

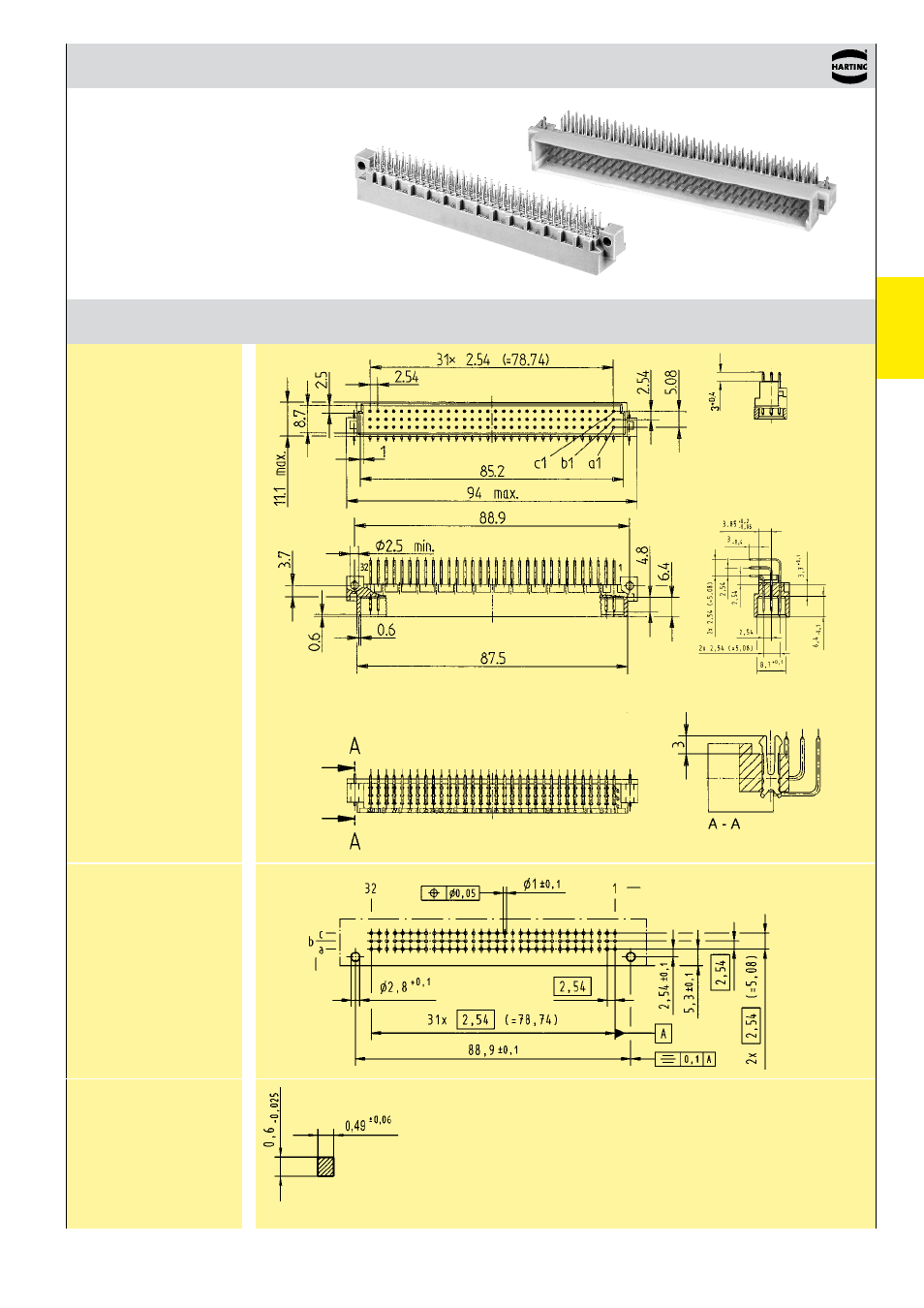

DIN 41 612 · Type C
Male connectors
Number of contacts
96, 64, 32
Dimensions
Board drillings
Mounting side
1) Recommendation for variants with clip: Drillings can be enlarged up to 3.1 mm ø to reduce standard mounting force
row
position
all holes
Angled
solder pins
Straight
solder pins
Cross section
of solder
terminations
Cross area (A) of contacts row a, b, c: A = 0.25 - 0.33 mm² Dimensions in mm
Identification Drawing Dimensions in mm
