Automatic crimping tools
· Types B, C, D, E, F, FM, 2F and MH
Part No. 09 98 000 5000
Technical Characteristics
Dimensions
Height
690 mm
(1400 mm with a contact reel)
Width 350 mm
Depth 370 mm
Total weight 72 kg
Power supply 230 V, 50/60 Hz, 2.5 A
Consumption 0.75 kW
Motor speed 440 - 2000 rpm
Cable length 2 m incl. plug
Control SPS
Work cycle trigger Sensor
Work cycle 0.35 s for stripping and crimping
Illumination Integrated tool light
Stroke counter Daywise and fixed
Crimp force
monitor BB07i
Crimping tool Quick change tool
Adjustable Crimping height on wire
process Crimping height on insulation
parameters Depth of insulation stripping
Length of insulation stripping
Wire retainer position
Wire position in the crimp contact
Band thrust

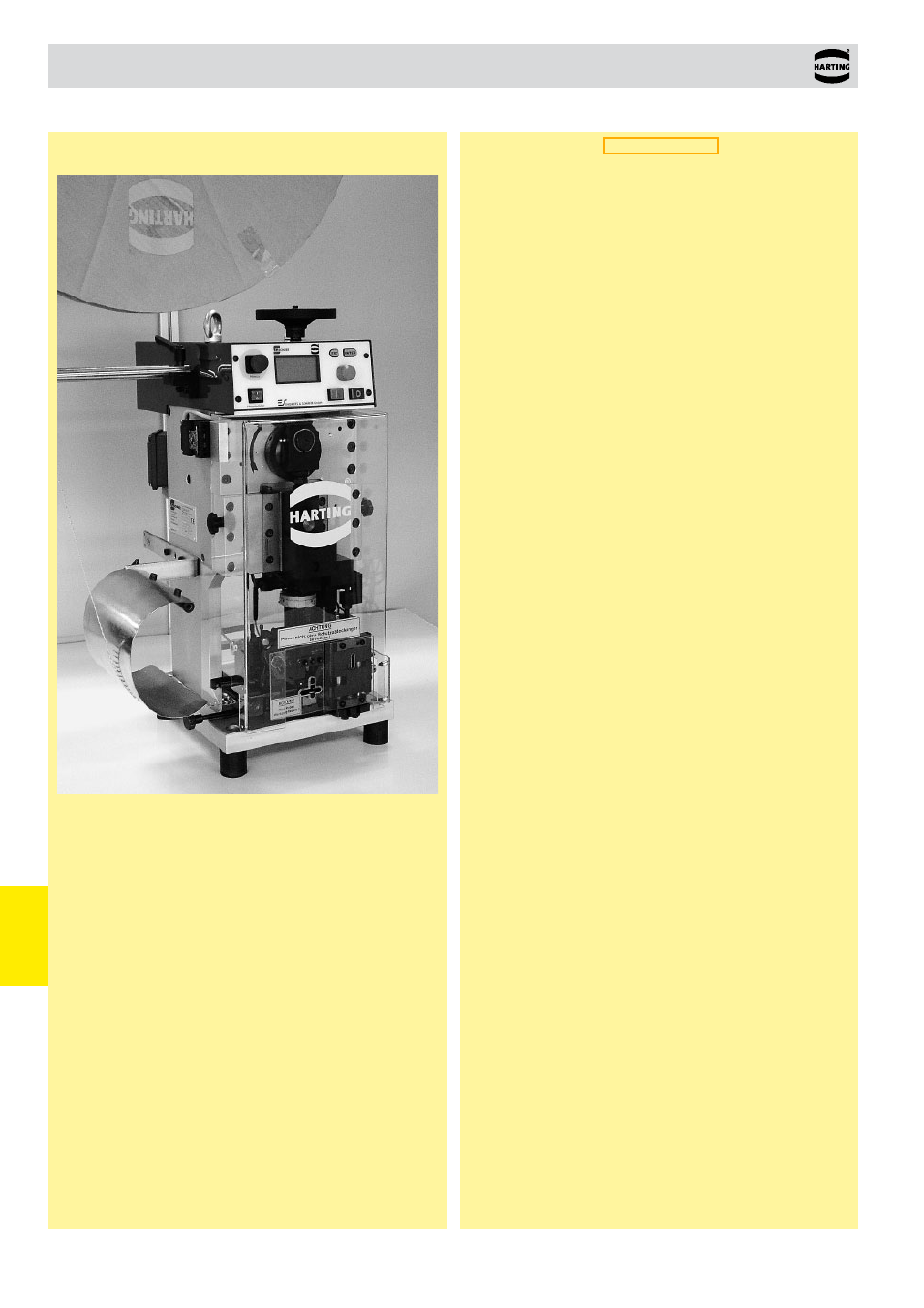

Automated crimping machine type BK
Main characteristics
●
Smooth run through electronic brakes
●
Hand wheel for manual adjustments
●
Maintenance friendly through needle bearing rail
●
Simple handling by quick change tool and
stripper
Further details you will find in our product flyer.
