Railway classification NFF 16-101, Smoke index: F1, Flammability class: I2

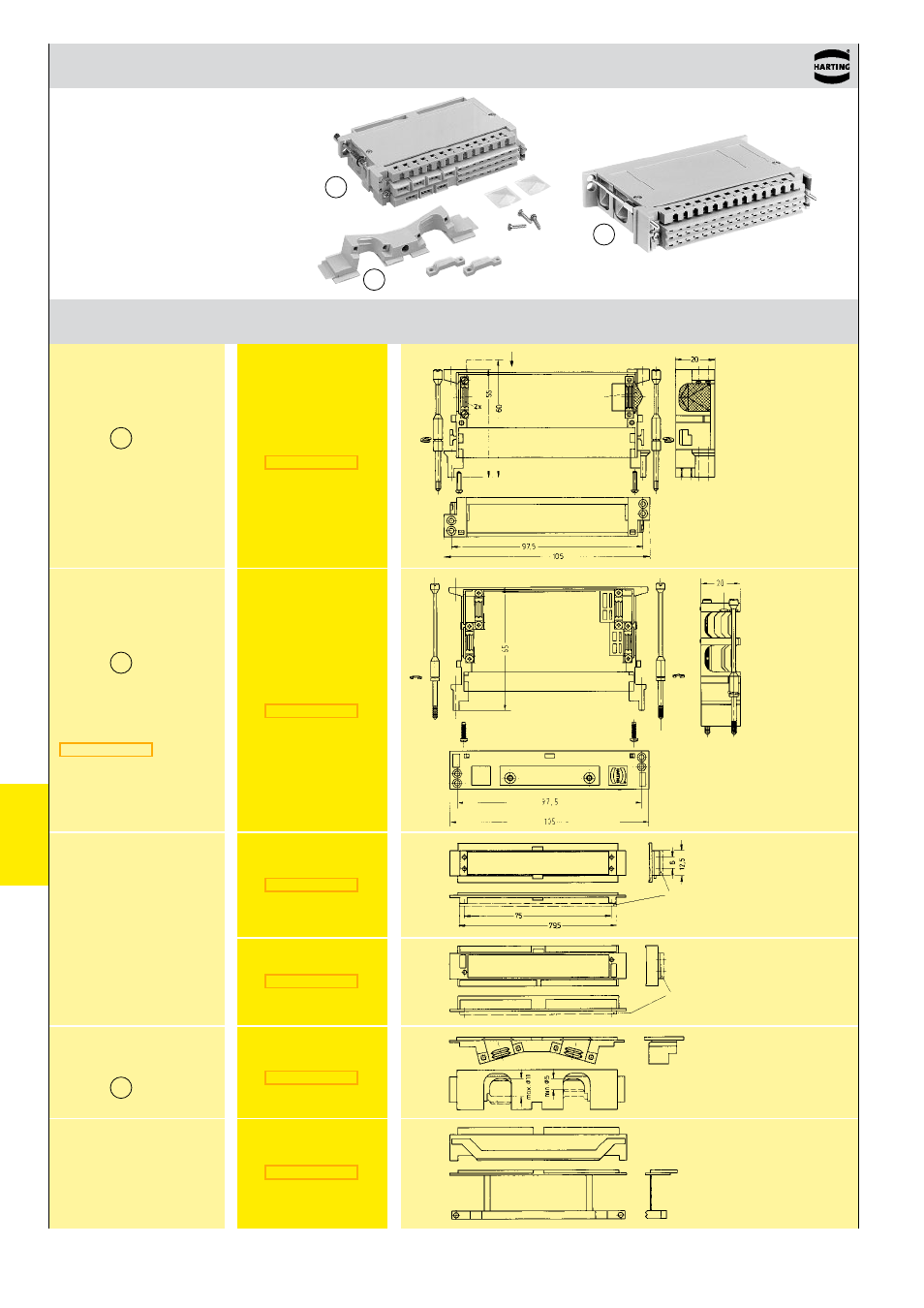

Shell housing D 20 for types F, H and MH

Identification

Part No.

Drawing

Dimensions in mm

Shell housing

D 20/2

Two side

cable entries

for 55 mm height

for 60 mm height

Shell housing

D 20/4

Four side

cable entries

Inserts e. g. for LED*

* Fits D 20/2

Round cable insert*

2 x ø 11

Flat cable insert*

Order inserts separately

pcb

Blanking piece 2 x

Supplied with:
Shell 1x
Cover 1x
Locking screw 2x

(09 06 000 9920)
Locking washer 2.3 2x
Screw BZ 2.2x9.5 12x
Blinding piece 3x
Cable clamp 2x
