Northern Connectors Harting DIN 41 612 Connectors - Manual (Page 192)

20
.
30
09 06 848 0550
09 06 848 0551
II
I
II
I
Sh
ell
hou
si
ng
s

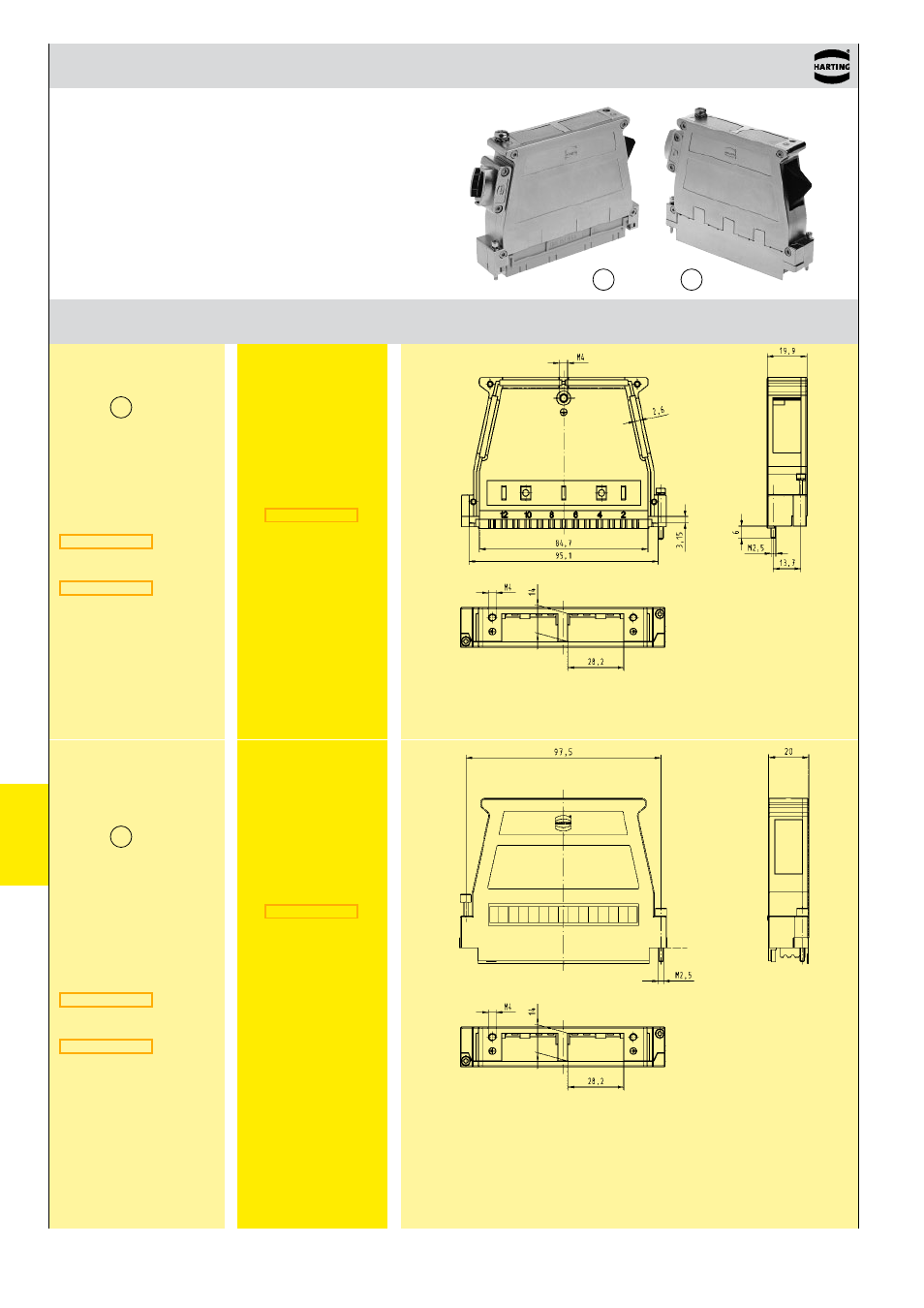

Shell housing D 20 metal for types F, H and MH
Identification Part No. Drawing Dimensions in mm
Shell housing
D 20 metal
Supplied with:
Shell with coding
1x
Cover 1x
Locking screw
(hexagonal)
M2.5 x 23
(09 06 800 9953) 2x
Screw (torx)
M2.5 x 10
(09 06 800 9960) 4x
Earth screw
M4 x 8
(09 06 800 9958) 2x
Supplied with:
Shell with coding
and HF-sealing spring 1x
Cover
with shielding plate 1x
Locking screw
(hexagonal)
M2.5 x 23
(09 06 800 9953) 2x
Screw (torx)
M2.5 x 10
(09 06 800 9960) 4x
Earth screw
M4 x 8
(09 06 800 9958) 2x
Shell housing
D 20 metal HF
with nickel-plated
surface
