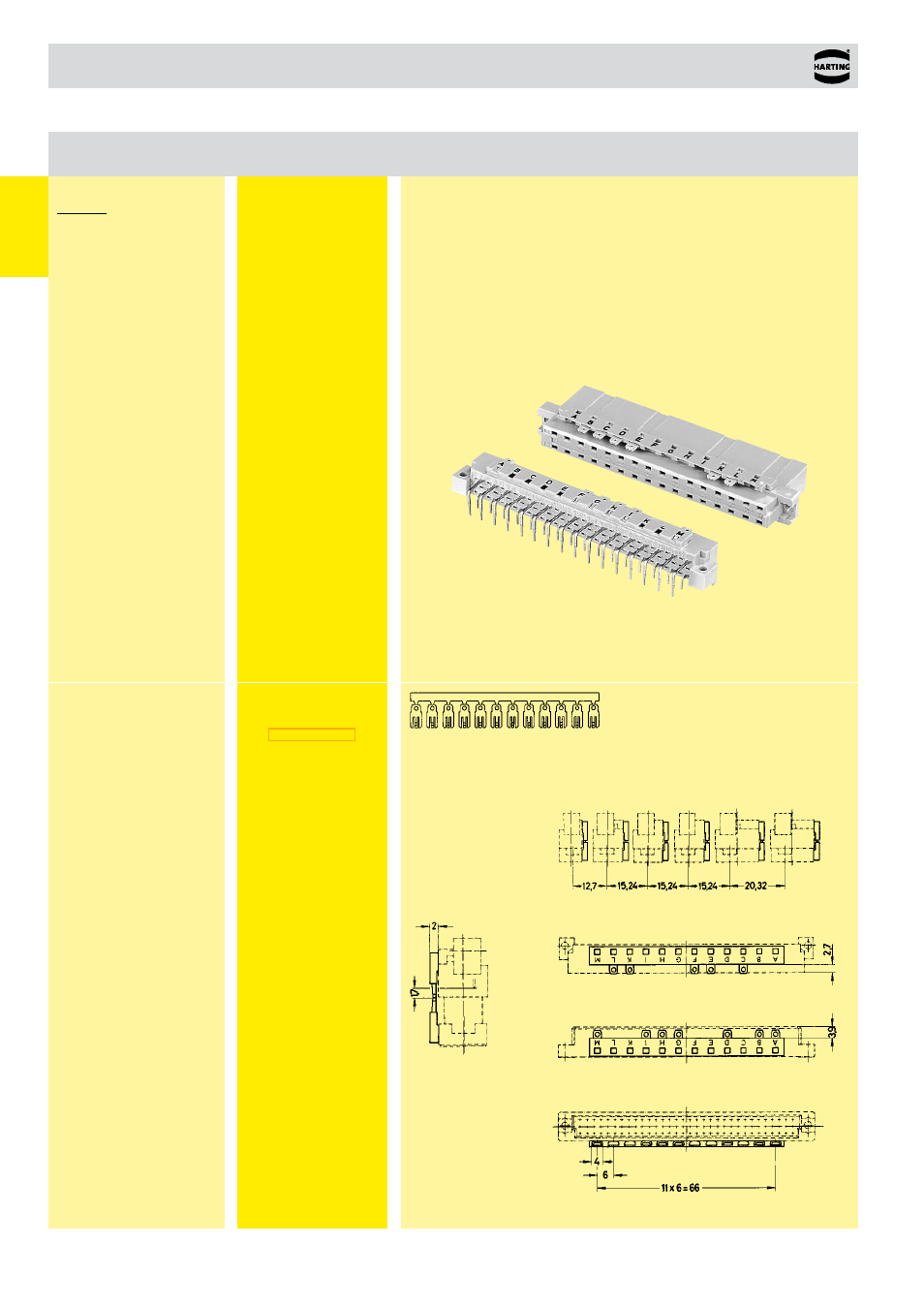

DIN 41 612 · Coding systems
Identification Part No. Drawing Dimensions in mm
Coding system
without contact loss
To avoid accidental and incorrect mating of adjacent connectors a coding system
is required.This coding system is an integral part of both male and female
connectors. A comb with 12 coding pins, which is supplied under a single part
number, allows over 900 coding variations. The pins are to be locked into the male
and female connectors.
The connectors with the integrated coding facility are supplied for types B, C, D
and E and are available for all variants.
Please contact us.
Male and
female
connectors
Types
B, C, D and E
see product pages
or
on request
Coding pins
Mounting example
12 pins
on a comb
Type
B C D D E E
