Installing of the standard device
Standard devices in the power range 55 ... 75 kW
Thermally separated mounting (push−through technique)
4.4
4.4.3
l
4.4−3
EDSVS9332S EN 6.0−07/2013
4.4.3
Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type
EVS93xx−ESx must be used. In addition, the mounting set EJ0009 for the
push−through technique is required.
h
c1
c2
c3
c4
g
a1
a
d1
h
d2
d2
d2
d
b
b1
e1
e
L
9300std071
Fig. 4.4−2

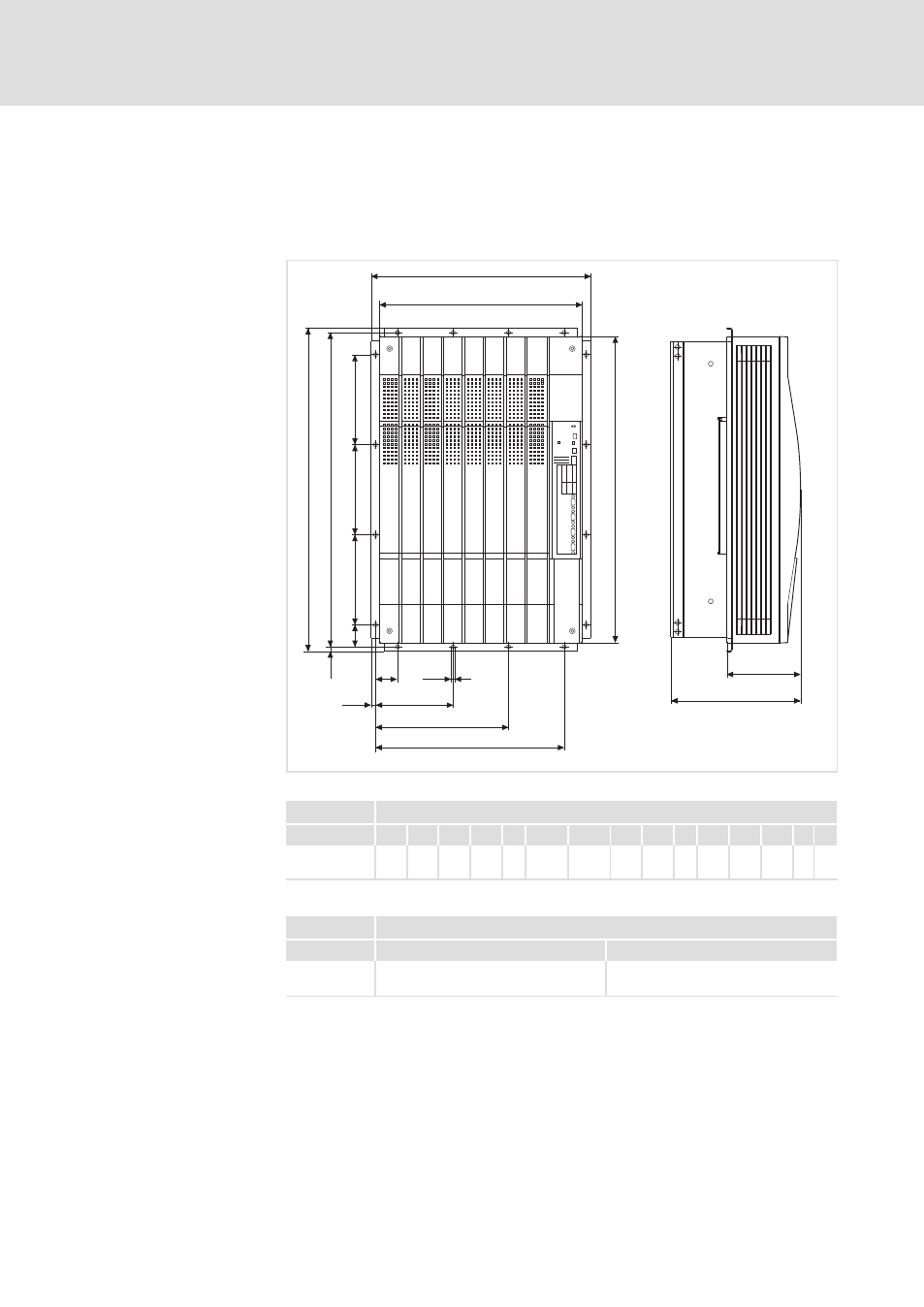

Dimensions for thermally separated mounting 55 ... 75 kW
9300
Dimensions [mm]
Typ
a
a1
b
b1
c1
c2
c3
c4
d
d1
d2
e
1)
e1
g
h
EVS9331−ES
EVS9332−ES
488 450 718 680 49 172.5 295.5 419 698 49 200 285 164 9 10
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
9300
Dimensions [mm]
Type
a1
b1
EVS9331−ES
EVS9332−ES
428.5
660
Dimensions
Mounting cutout in control
cabinet
