Lenze EVS9332xS - Manual (Page 122)

Wiring of the standard device
Standard devices with a power of 45 kW
Important notes
5
5.6
5.6.2
l
5.6−3 EDSVS9332S EN 6.0−07/2013
5.6.2 Important notes

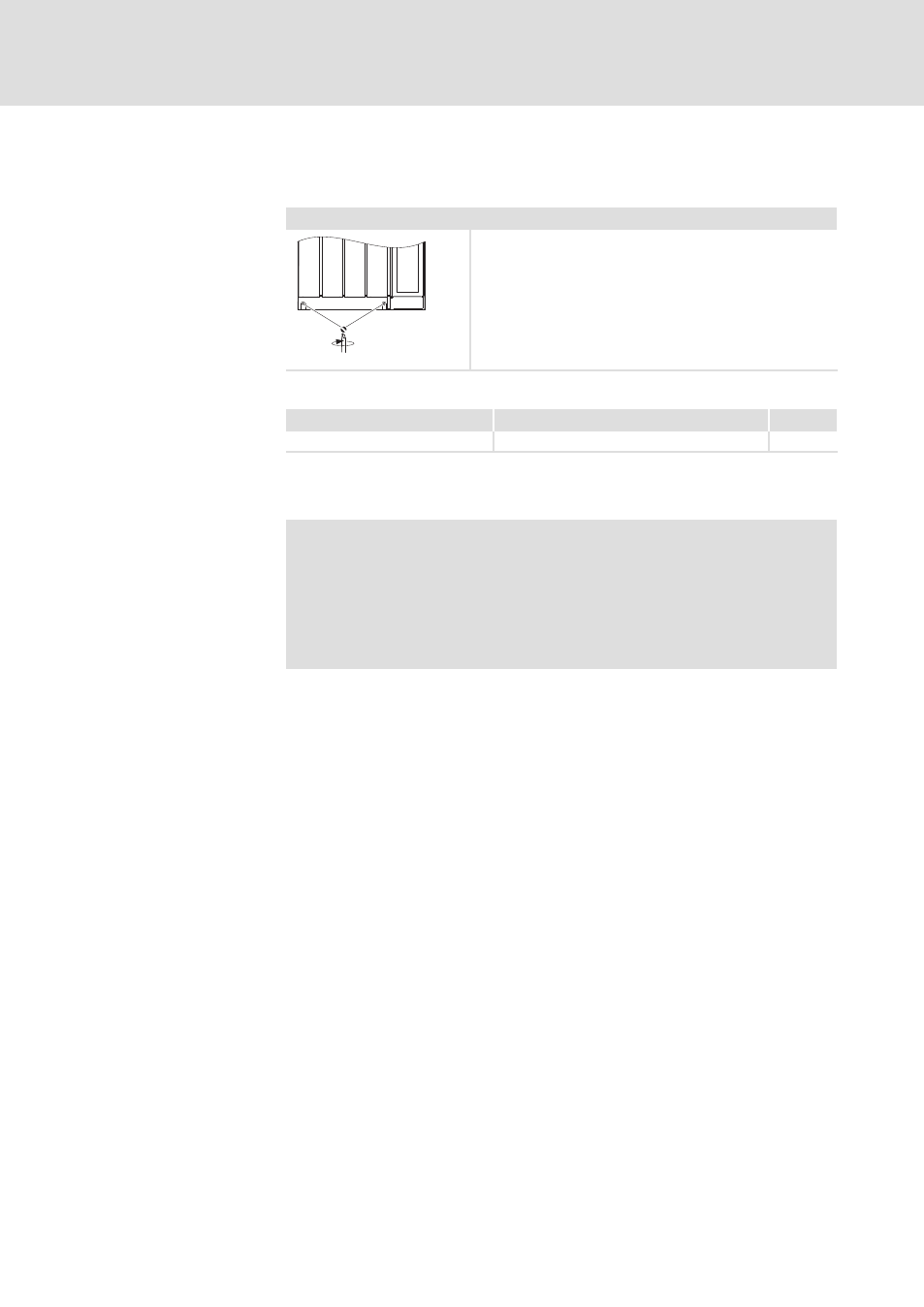

To gain access to the power connections, remove the cover:
Remove the cover of the drive controller
0
1
1. Remove the screws 0
2. Lift cover 1 up and detach it
9300vec113
Installation material required from the scope of supply:
Description Use Quantity
Cable ties 3.5 × 150 mm Strain relief/shield connection for motor cable 4
5.6.3 Mains connection, DC supply
)
Note!
ƒ If a mains filter or RFI filter is used and the cable length
between mains/RFI filter and drive controller exceeds
300 mm, install a shielded cable.
ƒ For DC−bus operation or DC supply, we recommend using
shielded DC cables.
