Wiring of the standard device
Control terminals
Connection terminal of the control card
5.8
5.8.2
l
5.8−3
EDSVS9332S EN 6.0−07/2013
5.8.2
Connection terminal of the control card
E2
E4
E5
39
1
34
28
E1
E3
2
33
7
K32
62
K31
GND
A1
A2
A3
A4
ST1
ST2
59
3
4
7
63
LO
HI
X4
X3
X1
X11
X8
X7
X9
X10
X5
X6
9300std085

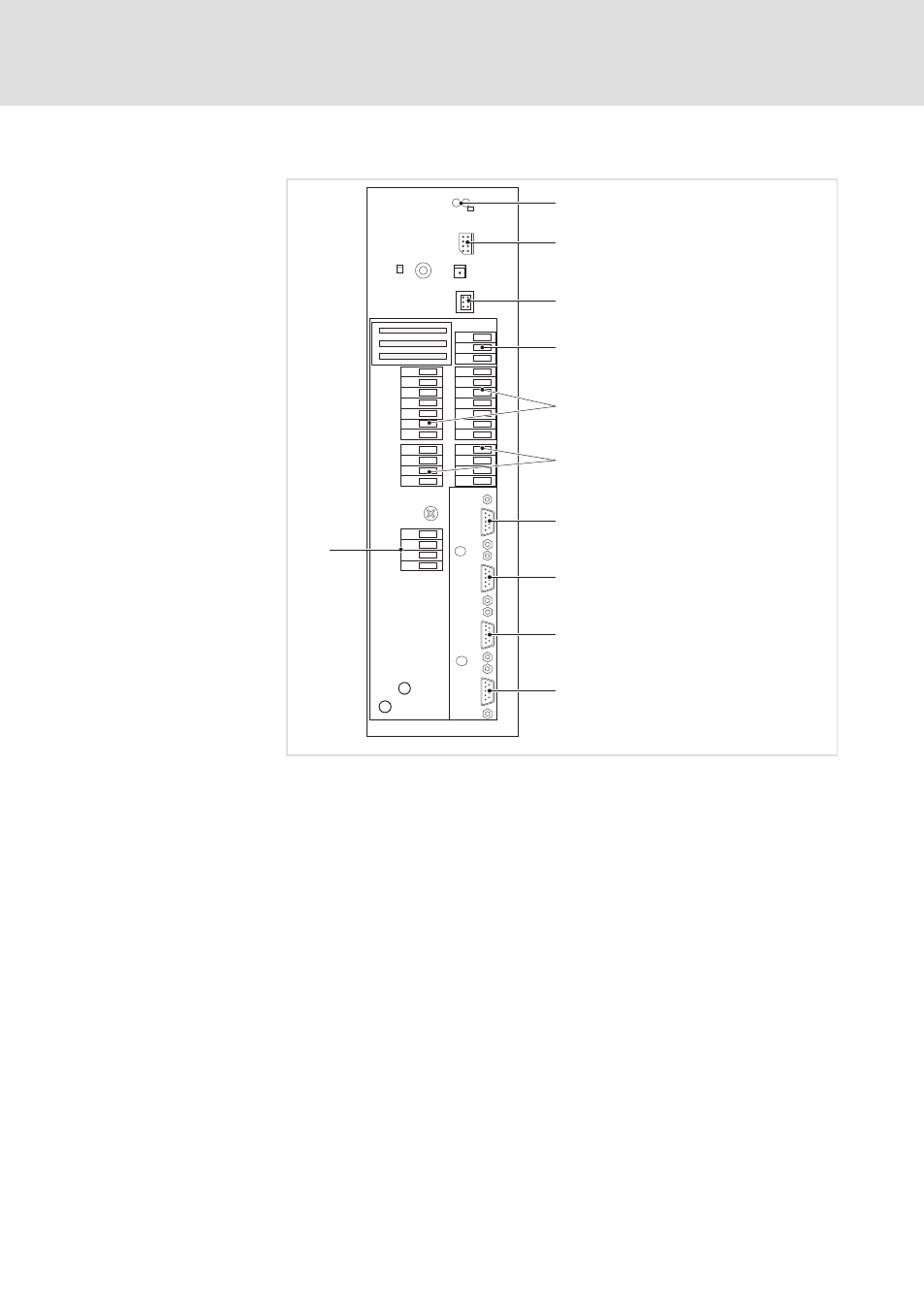

Fig. 5.8−2
Connection terminal of the control card
2 light−emitting diodes (red, green) for status display
X1
Automation interface (AIF)
Slot for communication modules (e.g. keypad XT)
X3
Jumper for the preselection of the signal type for the input signal at X6/1,
X6/2
X4
System bus (CAN) connection, terminal strip
X5
Connection of digital inputs and outputs, terminal strips
X6
Connection of analog inputs and outputs, terminal strips
X7
Resolver connection
Plug−in connector: Socket, 9−pole, Sub−D
X8
Incremental encoder connection
Plug−in connector: Pin, 9−pole, Sub−D
X9
Connection of digital frequency input signal
Plug−in connector: Pin, 9−pole, Sub−D
X10
Connection of digital frequency output signal
Plug−in connector: Socket, 9−pole, Sub−D
X11
Connection of safety relay K
SR
, terminal strip
