12. Authentication
AirLive RS-2500 User’s Manual 74

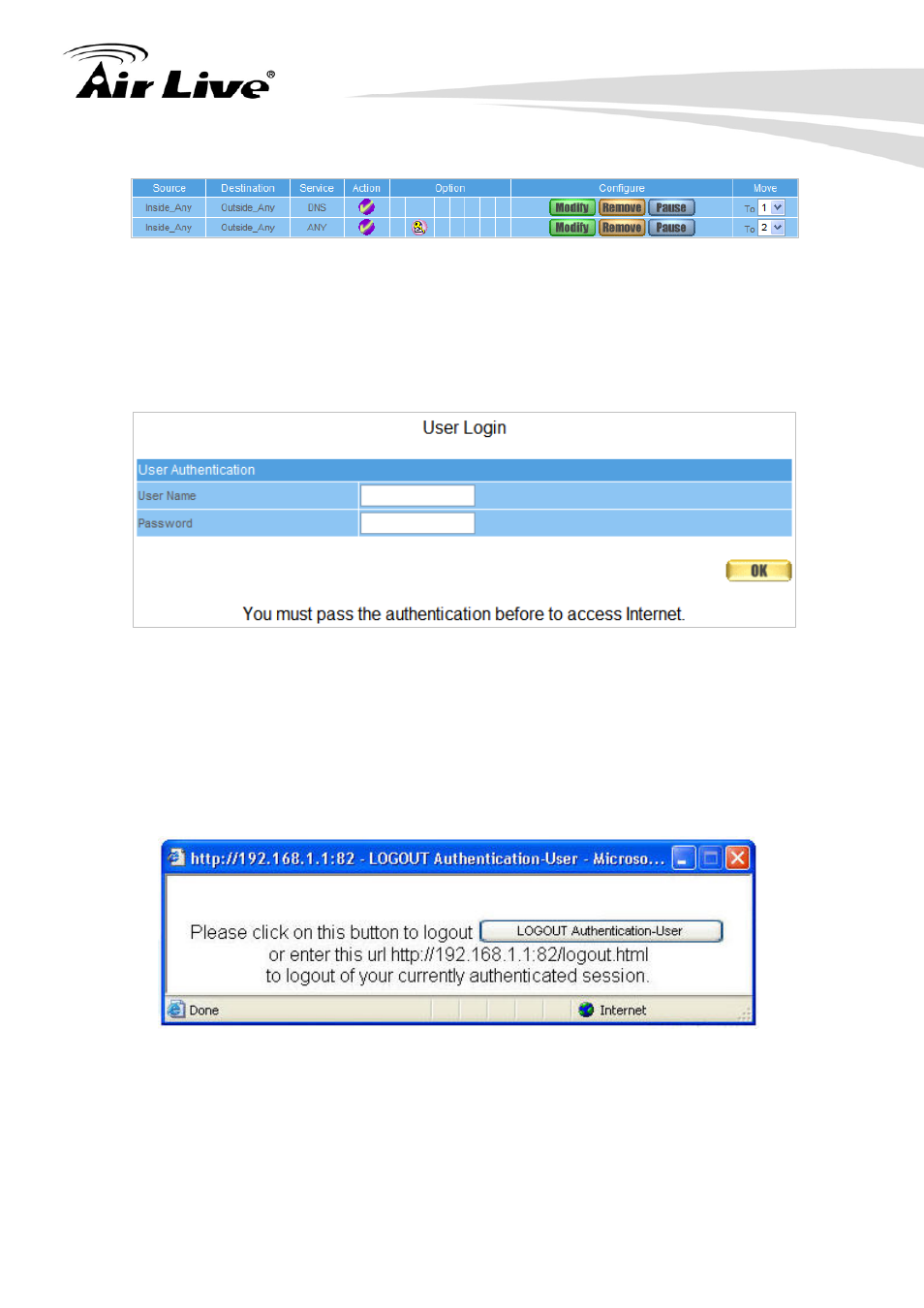

Figure 12-10 Complete the Policy Setting of Auth-User
STEP 7 ﹒ When user is going to access to Internet through browser, the authentication UI will
appear in Browser. After entering the correct user name and password, click OK to
access to Internet. (Figure 12-11)
Figure 12-11 Access to Internet through Authentication WebUI
STEP 8
﹒
If the user does not need to access to Internet anymore and is going to logout,
he/she can click LOGOUT Auth-User to logout the system. Or enter the Logout
Authentication WebUI (http:// LAN Interface: Authentication port number/
logout.html) to logout (Figure 12-12)
Figure 12-12 Logout Auth-User WebUI
