17. Configuration Example: IPSec & PPTP VPN
AirLive RS-2500 User’s Manual 132
 VPN Client Software configuration:
STEP 1 ﹒ Right click Root and select “New Phase 1”, then enter following information at
Phase 1 page: (Figure 17-74)
 Name: To_RS25.
 Interface: 192.168.1.2
 Remote Gateway: 61.11.11.11
 Preshared Key: 123456789
 IKE Encryption: 3DES
 IKE Authentication: MD5
 IKE Key Group: Group 1

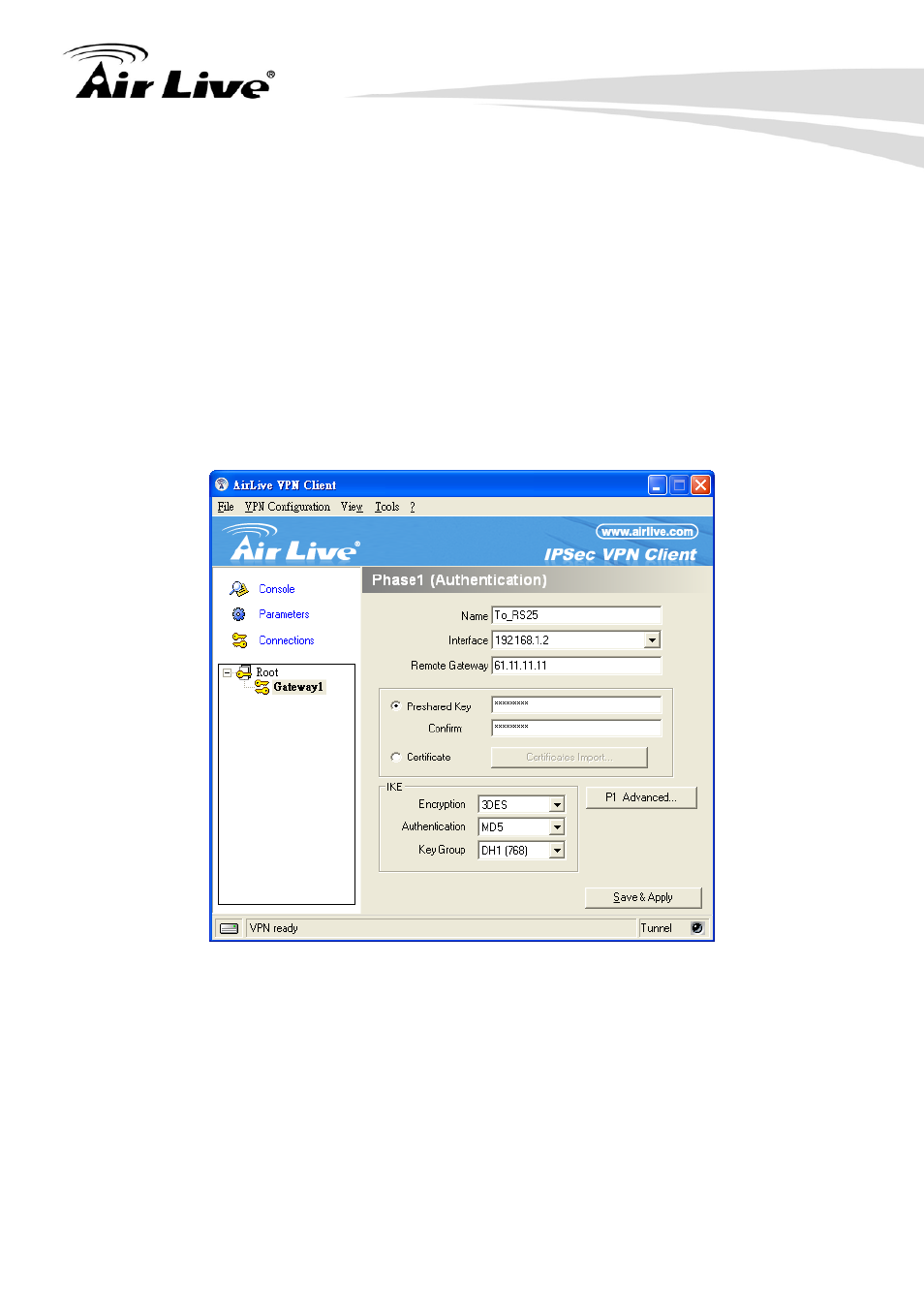

Figure 17-74 Phase1 setting of IPSec VPN Client Software
STEP 2 ﹒ Press “Save & Apply” button save Phase 1 setting.
STEP 3 ﹒ Right click “To_RS25” (Phase 1) and select “Add Phase 2”.
STEP 4 ﹒ Enter following information at Phase 2 page: (Figure 17-75)
 Name: To_RS25_Tunnel
 VPN Client Address: 192.168.1.2
 Remote Address Type: Subnet Address
 Remote LAN Address: 192.168.10.0
