19. Configuration Example: Policy
167 AirLive RS-2500 User’s Manual
19.4 Configuration Example (4) - Virtual Server
The external user controls the internal PC through remote control software (Take VNC for
example)

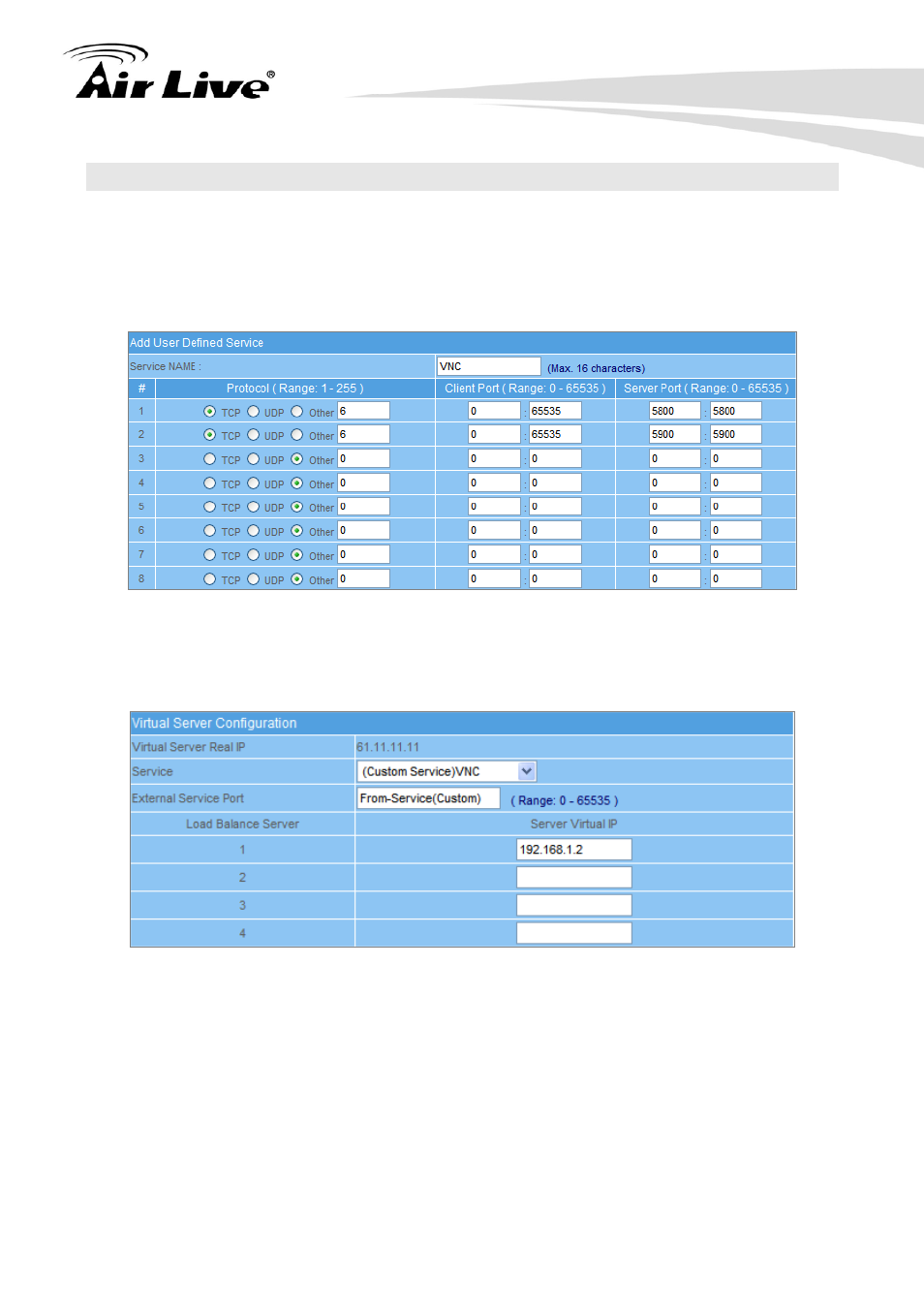

STEP 1 ﹒ Create a custom service of VNC port. (TCP 5800, 5900) (Figure 19-19)
Figure 19-19 Setting Custom Service
STEP 2 ﹒ Select the following setting in Virtual Server1 of Virtual Server function, and
assign to LAN IP 192.168.1.2 device. (Figure 19-20)
Figure 19-20 Setting Virtual Server
