6.3 Multiple Subnet
Connect to the Internet through Multiple Subnet NAT or Routing Mode by the IP address
that set by the LAN user’s network card. (Figure 6-8)

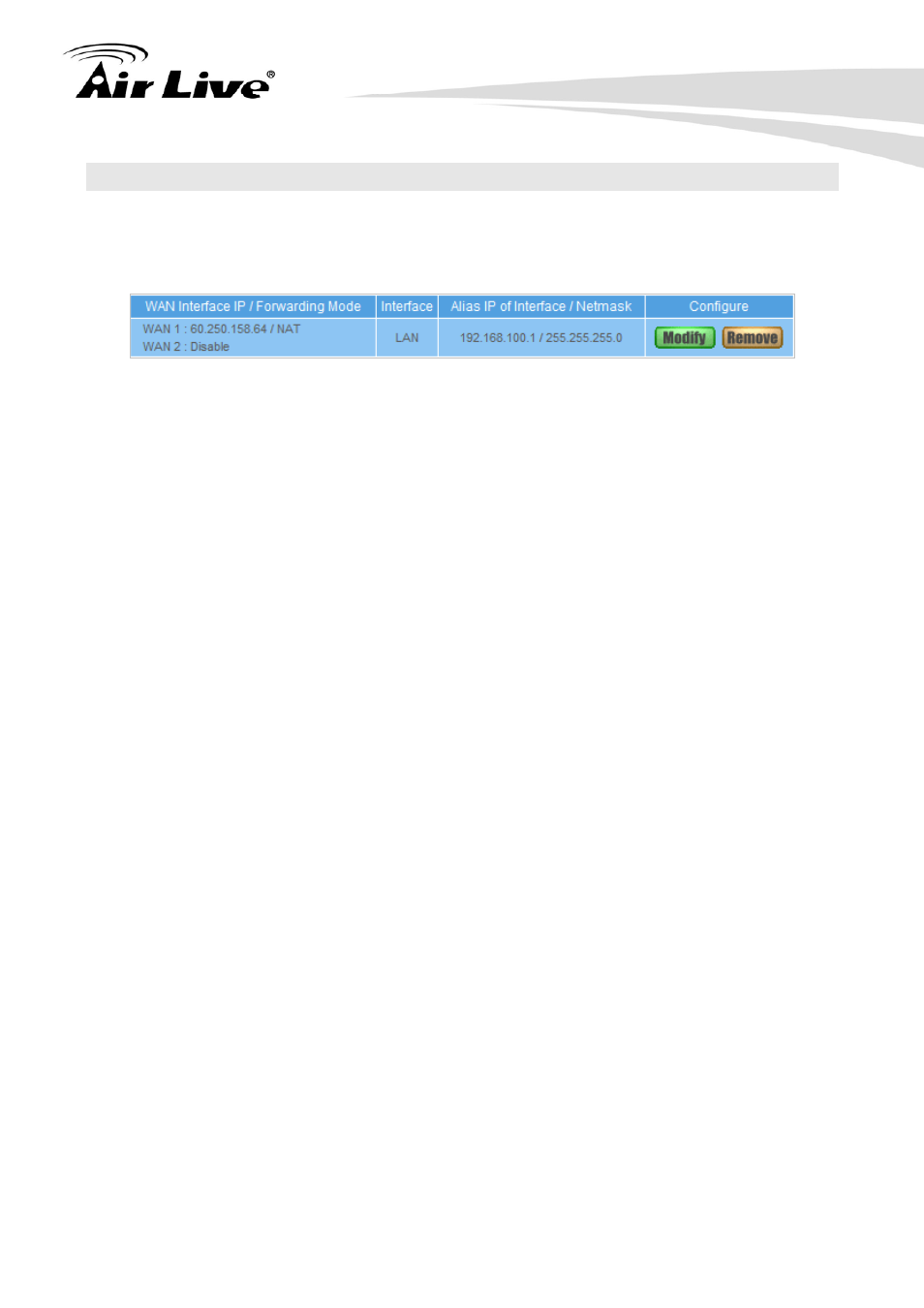

Figure 6-8 Multiple Subnet UI
 WAN Interface IP / Forwarding Mode
 The WAN IP address corresponds with Multiple Subnet
 The system mode of Multiple Subnet (NAT mode or Routing Mode)
 Interface
 The interface of Multiple Subnet (LAN or DMZ)
 Alias IP of Interface / Netmask
 The Multiple Subnet IP address range setting
 Configuration Example
RS-2500 WAN1 (10.10.10.1) connect to the ISP Router (10.10.10.2) and the subnet that
provided by ISP is 162.172.50.0/24
To connect to Internet, WAN2 IP (211.22.22.22) connects with ATUR.
 Adding Multiple Subnet
Add the following settings in Multiple Subnet of System function:
 Click on New Entry
 Alias IP of LAN Interface： Enter 162.172.50.1
 Netmask：Enter 255.255.255.0
 WAN1: Choose Routing in Forwarding Mode, and press Assist to select
Interface IP 1010.10.1.
 WAN2：Enter Interface IP 211.22.22.22, and choose NAT in Forwarding
Mode
 Click OK
 Complete Adding Multiple Subnet (Figure 6-9)
