17. Configuration Example: IPSec & PPTP VPN
109 AirLive RS-2500 User’s Manual

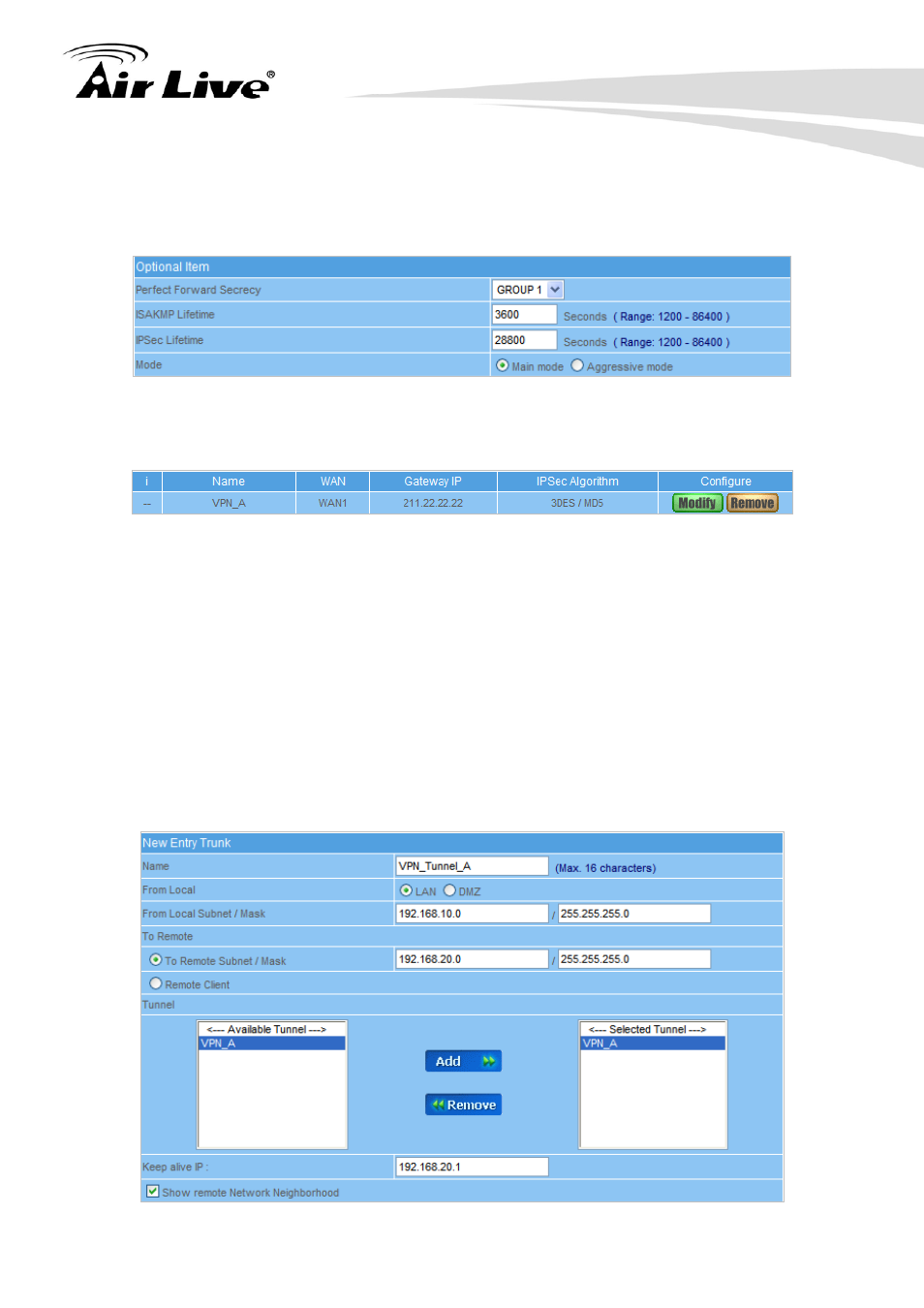

STEP 7 ﹒ Select GROUP1 in Perfect Forward Secrecy, enter 3600 seconds in ISAKMP
Lifetime, enter 28800 seconds in IPSec Lifetime, and selecting Main mode in
Mode. (Figure 17-8)
Figure 17-8 IPSec Perfect Forward Secrecy Setting
STEP 8
﹒
Complete the IPSec Autokey setting. (Figure 17-9)
Figure 17-9 Complete Company A IPSec Autokey Setting
STEP 9 ﹒ Enter the following setting in Trunk of VPN function: (Figure 15-10)
 Enter a specific Trunk Name, for example VPN_Tunnel_A.
 From Local: Select LAN
 From Local Subnet / Mask: Enter 192.168.10.0 / 255.255.255.0.
 To Remote: Select To Remote Subnet / Mask.
 To Remote Subnet / Mask: Enter 192.168.20.0 / 255.255.255.0.
 Tunnel: Select VPN_A.
 Enter 192.168.20.1 (the Default Gateway of Company B) as the Keep alive IP
 Select Show remote Network Neighborhood and Click OK. (Figure 17-11)
Figure 17-10 New Entry Trunk Setting
