17. Configuration Example: IPSec & PPTP VPN
AirLive RS-2500 User’s Manual 136

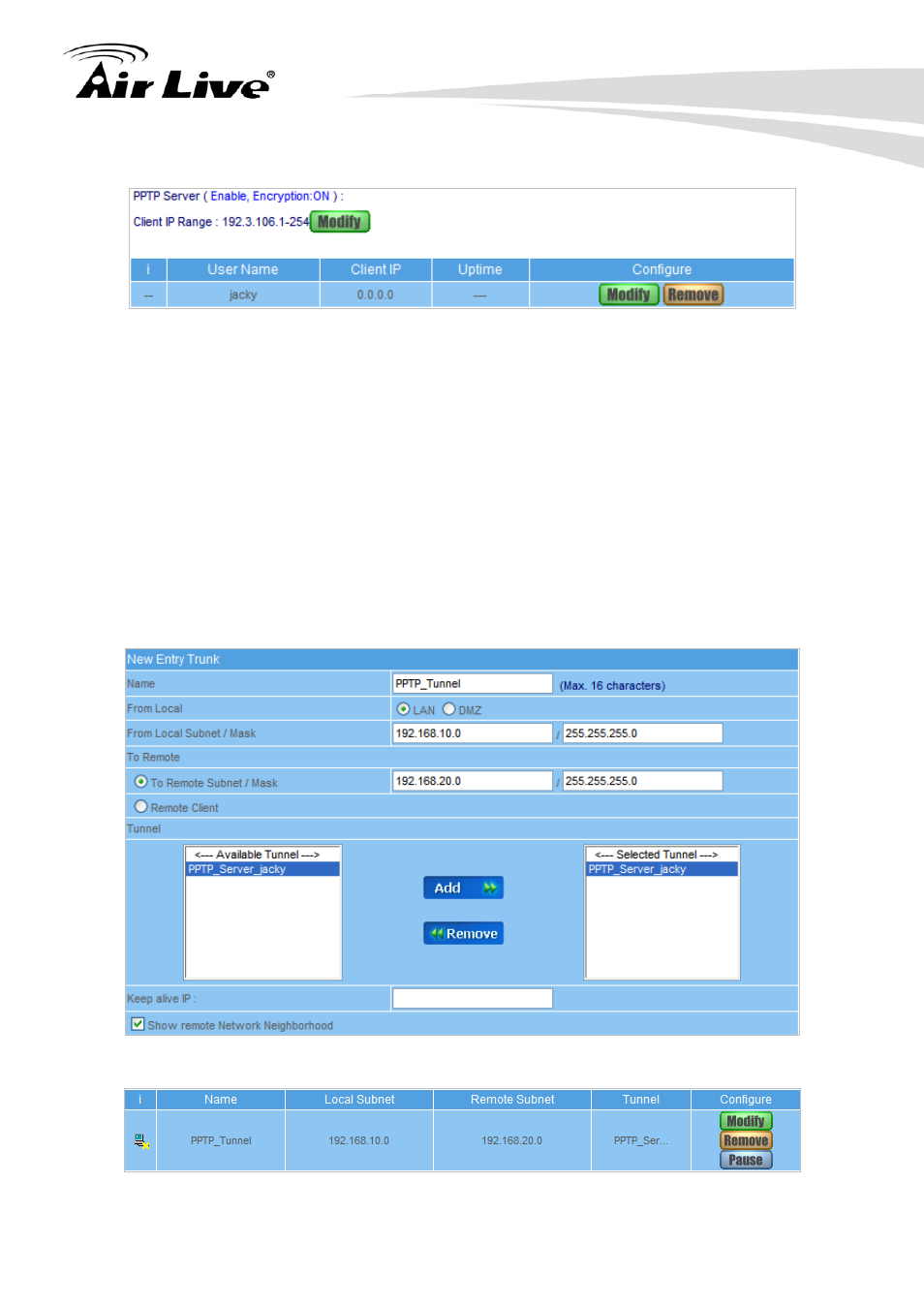

Figure 17-79 Complete PPTP VPN Server Setting
STEP 3. Enter the following setting in Trunk of VPN function: (Figure 17-80)
 Enter a specific Trunk Name, for example PPTP_Tunnel.
 From Local: Select LAN
 From Local Subnet / Mask: Enter 192.168.10.0 / 255.255.255.0.
 To Remote: Select To Remote Subnet / Mask.
 To Remote Subnet / Mask: Enter 192.168.20.0 / 255.255.255.0.
 Tunnel: Select PPTP_Server_jacky.
 Select Show remote Network Neighborhood.
 Click OK. (Figure 17-81)
Figure 17-80 New Entry Trunk Setting
Figure 17-81- Complete New Entry Trunk Setting
