15. Virtual Server
95 AirLive RS-2500 User’s Manual

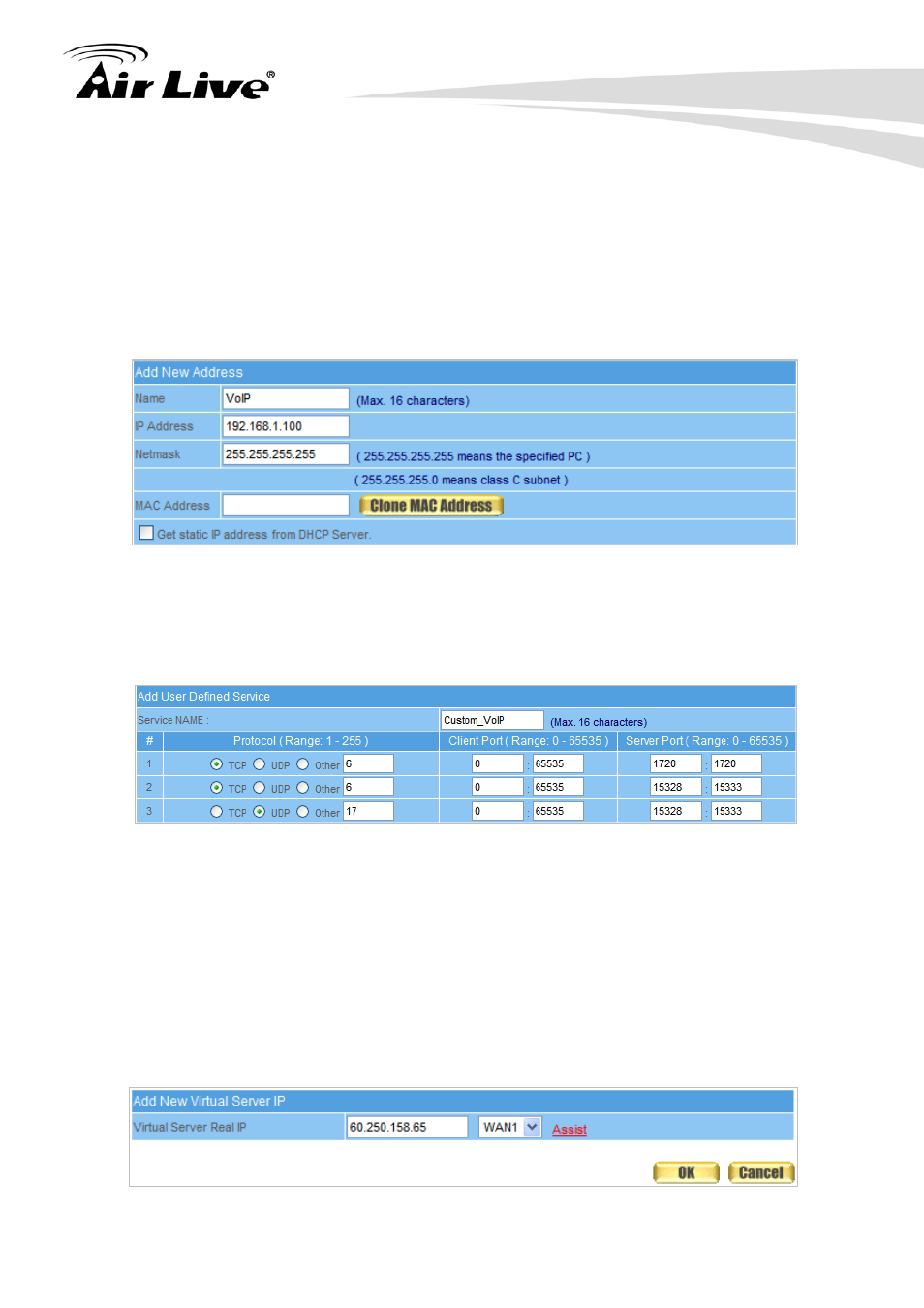

 Configuration Example - Virtual server setting for Custom Service
The external user use VoIP to connect with VoIP of LAN (VoIP Port: TCP 1720, TCP
15328-15333, UDP 15328-15333)
STEP 1 ﹒ Set up VoIP in LAN network, and its IP is 192.168.1.100
STEP 2 ﹒ Policy Object
 Address  LAN: Enter the following setting in LAN of Address
function. (Figure 15-10)
Figure 15-10 Setting LAN Address WebUI
STEP 3 ﹒ Policy Object  Service  Custom: Add new VoIP service group in Custom of
Service function. (Figure 15-11)
Figure 15-11 Add Custom Service
STEP 4 ﹒ Policy Object
 Virtual Server  Server 1: Enter the following setting in
Server1 of Virtual Server function
 Click the button next to Virtual Server Real IP (“click here to configure”) in
Server1
 Virtual Server Real IP: Enter 60.250.158.65 (click Assist for assistance)
(Use WAN)
 Click OK (Figure 15-12)
Figure15-12 Virtual Server Real IP Setting WebUI
